INSTALLATION

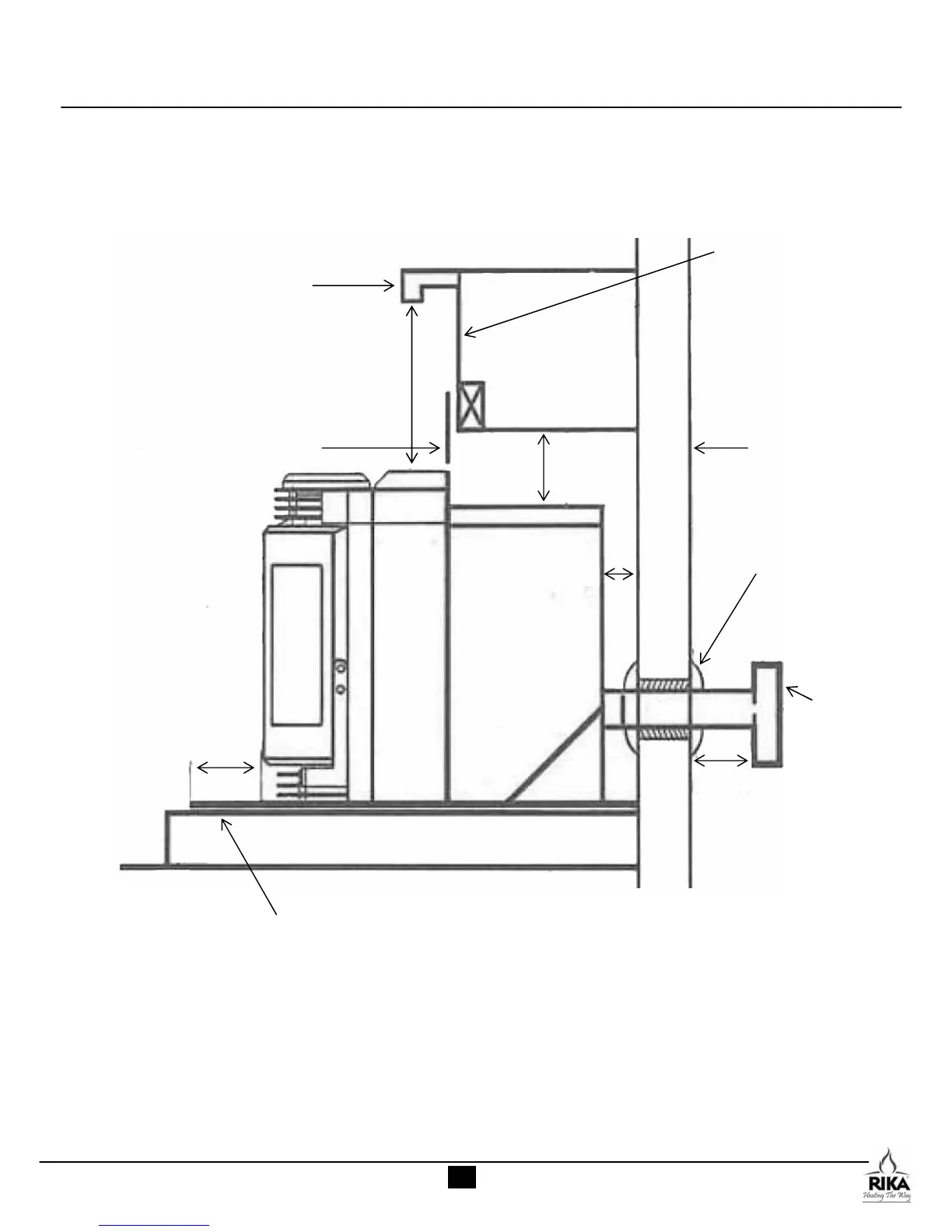

Installation In Combustible Framework
Mantle
Facing
Top of Stove
to Mantle – 12“
Shroud – 29“ x 42“ min.
5“
2“
Outside
wall
Listed wall
thimble
Listed
end cap
7“ min.
6“ min. Floor protection to
front of stove
Raised hearth – optional
½“ USG Micore and 24 guage
sheet steel or equivelent
Fresh air intake
recomended
The stove should be centered in the opening that it’s being installed into.
The opening must be a minimum of 25“ high and 39“ wide.
To Next Page
