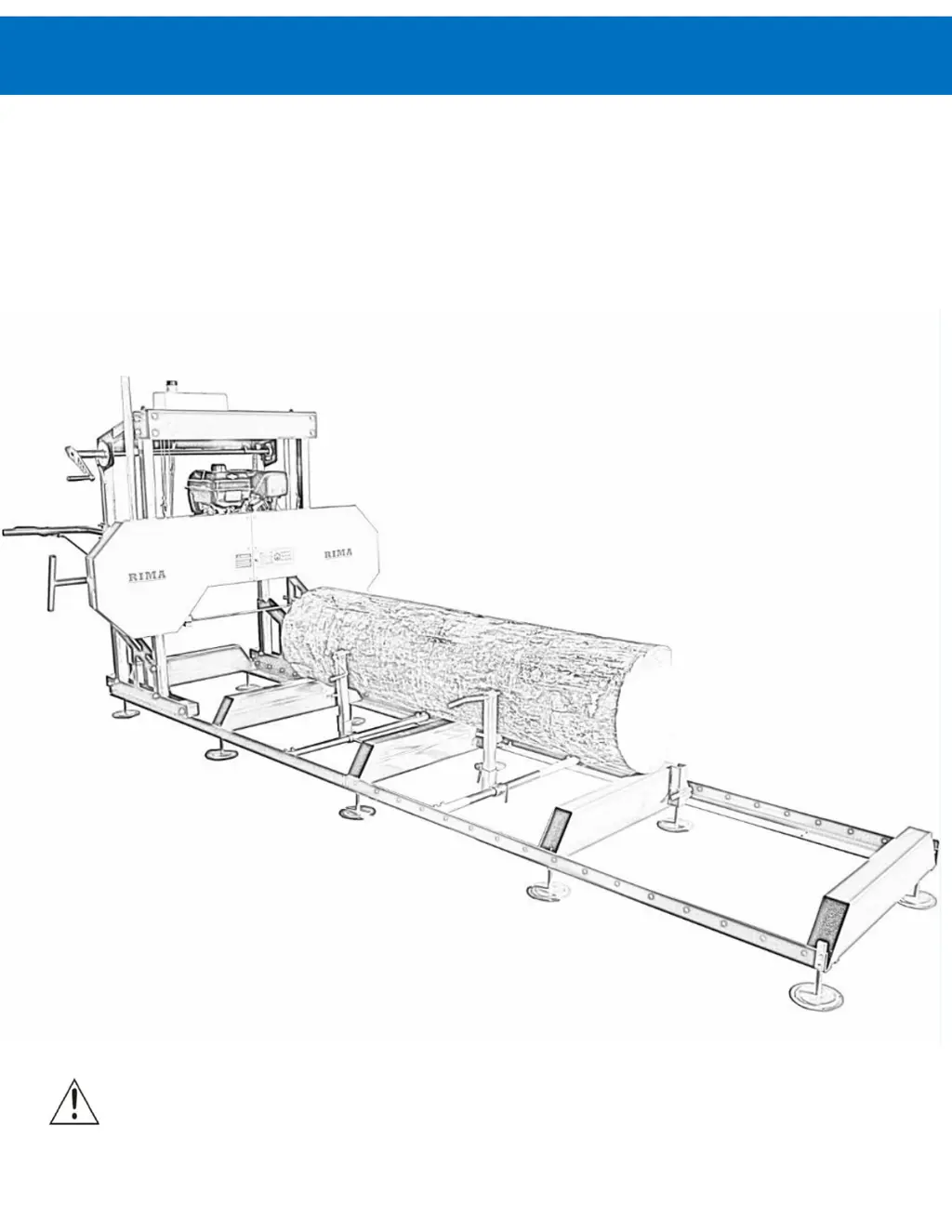

RS PORTABLE SAWMILL
2019
RS26G/31G
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

Table of Contents

Questions and Answers

  • M
    Matthew GarciaAug 2, 2025
    Why does the blade keep coming off the band wheels on my Rima RS26G Saw?
    • K
      Keith LawrenceAug 2, 2025
      The blade might be coming off the band wheels due to several reasons. It could be due to inadequate blade tension, requiring you to tighten the blade. The gap between the guide blocks and the blade may be incorrect. Improper blade tracking could also be the cause, so you may need to adjust the blade tracking. Check if the belts are worn and need replacement. A dull blade or pushing the mill too quickly can also cause this issue; consider installing a new blade or slowing down the feed rate.
  • K
    Kristin MossAug 6, 2025
    How to fix wavy cuts with my Rima Saw?
    • C
      Cassandra RyanAug 6, 2025
      Wavy cuts can occur for several reasons. Check the blade tension and tighten if inadequate. Ensure the blade guide is set up properly, paying attention to the gap between the guide blocks and the blade. Adjust the blade tracking if it's improper. Sap build-up or a dull blade can also cause this, so install a new blade and always use blade lubricant. Lastly, slow down the feed rate if you're pushing the mill too quickly.
  • W
    Willie EdwardsAug 11, 2025
    What to do if blades are breaking on my Rima RS26G Saw?
    • C
      Cheryl VasquezAug 11, 2025
      Blades may break due to several reasons. If the blade has been sharpened too many times, replace it. Inadequate blade tension can cause binding between the guide blocks, so tighten the blade. Ensure the blade guide is set up properly, paying attention to the gap between the guide blocks and the blade. Improper blade tracking can also cause this, so adjust the blade tracking. Slow down the feed rate if you're pushing the mill too quickly.
  • K
    Kevin MclaughlinAug 15, 2025
    Why is my Rima RS26G mill vibrating excessively?
    • J
      Julie BuchananAug 15, 2025
      Excessive vibration can occur for several reasons: Ensure the log is clamped firmly, resting on the log bunks and against the log supports. Belts may have flats in them from leaving blade tension tight when not in use, so replace them. Inspect and replace the band wheel bearings if worn. Slow the feed rate down when milling if you are pushing the mill too quickly. Check all bolts to ensure they are tight.
  • J
    Julie ZhangAug 19, 2025
    Why is my Rima RS26G blade slowing down or stopping when milling?
    • K
      Kimberly KleinAug 19, 2025
      If the blade is slowing down or stopping, it could be due to inadequate blade tension, so try tightening the blade. It may also be caused by improper drive belt tension, meaning the belts are worn or too loose and need to be replaced. You might also be pushing the mill too quickly, so slow down the feed rate.
  • M
    Manuel BatesAug 25, 2025
    Why is my Rima RS26G Saw mill not cutting or cutting very slowly?
    • C
      Christine GutierrezAug 25, 2025
      If the mill isn't cutting or is cutting very slowly, it could be due to a dull blade, in which case you should install a new blade. Alternatively, the blade might be on backwards; remove the blade and flip it inside out so the teeth face the log supports.
  • T
    Tonya LeeAug 28, 2025
    What causes the last board to be tapered or narrow in the middle when using my Rima RS26G?
    • S
      Steven McguireAug 28, 2025
      If the last board is tapered or narrow in the middle, it's likely because the tracks are not level. The tracks need to be checked with a level and adjusted to be square. They also need to be set up on firm, sturdy ground/base so deflection does not occur from logs or sawmill head.

Summary

SAWMILL ASSEMBLY

UNPACKING

Instructions for unpacking the sawmill components from the crate, including handling the sawmill head and track boxes.

TRACKS

Details on assembling and leveling the track system, emphasizing a firm foundation and track width.

LOG DOG & SUPPORTS

Instructions for assembling log dog pieces and attaching the log dog assembly to the track.

SAWMILL HEAD ASSEMBLY

Step-by-step guide for assembling the sawmill head, including attaching various components and plates.

PLACING THE HEAD ON THE TRACK

Procedure for placing the assembled sawmill head onto the track system and ensuring proper alignment.

ADJUSTMENT AND OPERATION

BLADE TENSION ADJUSTMENT

Adjusting the handle to achieve the correct saw blade stretching force.

BLADE TRACKING CHECK

Checking the saw wheel to verify if the saw blade is off-tracking.

ECCENTRIC SHAFT OPERATION

Understanding the eccentric shaft's movement for saw blade serration alignment.

WATER PIPE INSTALLATION

Installing the water pipe from the tank to the guide frame support rod.

ENGINE

SAWMILL SET-UP PROCEDURES

BELT TENSION

Guidance on checking and adjusting the drive belt tension to prevent excessive vibration.

BLADE TRACKING

Procedure for adjusting the blade to run correctly on the band wheels, including right and left side adjustments for proper alignment.

BLADE GUIDE ADJUSTMENT

Steps for adjusting the blade guide blocks and bearings for optimal blade support and performance.

NYLON BOLT ADJUSTMENT

Instructions for adjusting nylon bolts to ensure the sawmill head slides smoothly on the posts.

SAWMILL MAINTENANCE

CHANGING THE BLADE

Steps for safely removing and installing a new saw blade, including releasing tension.

REPLACING BELTS

Procedure for replacing worn drive and follower belts, including engine adjustments.

TROUBLESHOOTING
