Rinnai Demand Duo Installation Guide

Demand Duo Demand Duo CFHW with storage backup installation guide: 12583-B | 7

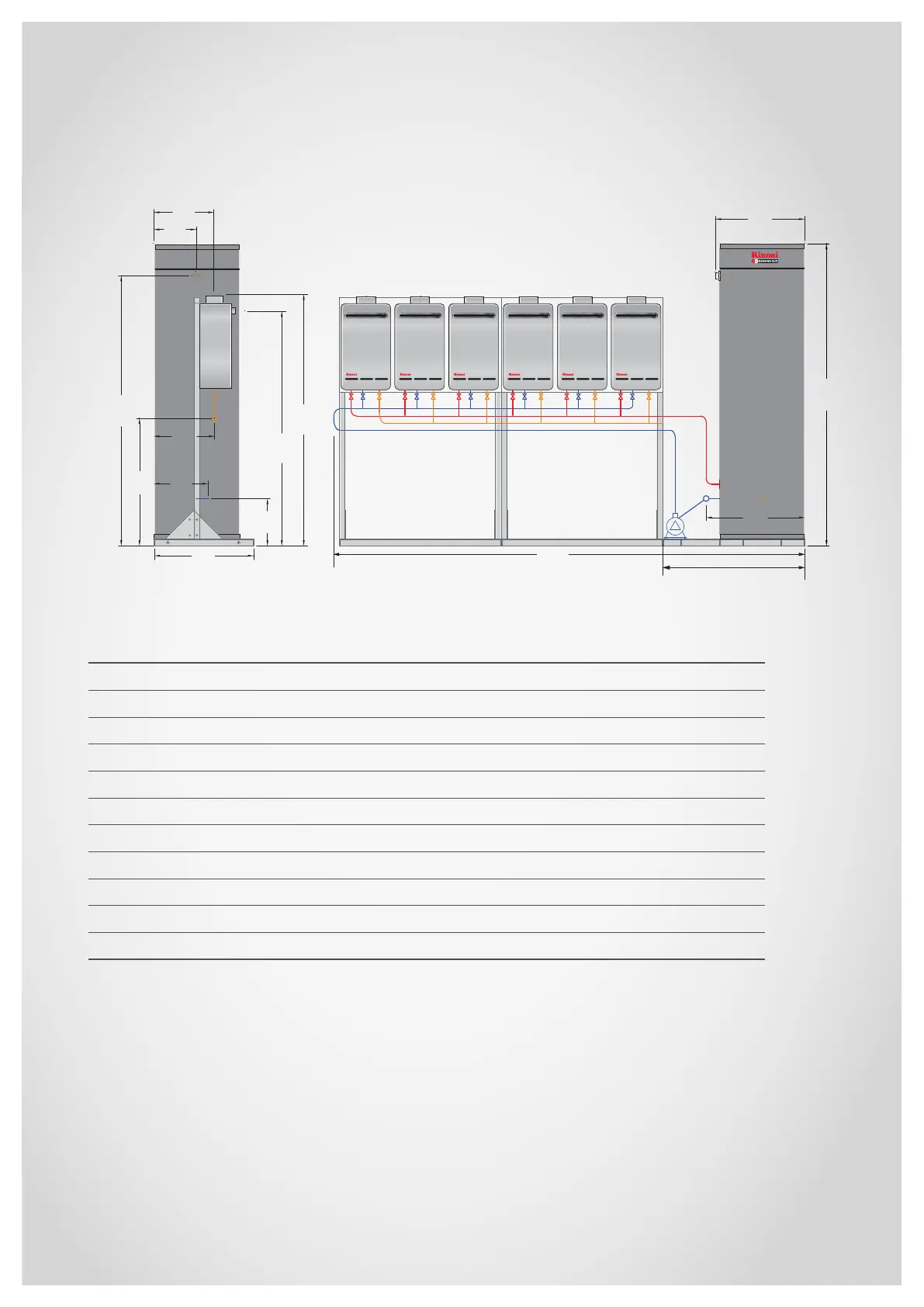

Dimensions
All dimensions are in mm.
700
1655
1750
External Model
Flue Terminal
Internal Model
Flue Terminal
2130
334
Cold Inlet
Cold
Inlet
Gas Inlet
Gas Inlet
Hot Outlet
Hot Outlet
430
300
425
631
540
1905
385
695
INFINITY
INFINITY INFINITY
INFINITY INFINITY
INFINITY
A
Cylinder skid 1000 mm
Model INFINITY ‘A’ dimension
(total width of system - mm)
DD 400 external and internal 2 x HD200/HDi200 1770
DD 600 external and internal 3 x HD200/HDi200 2240
DD 800 external and internal 4 x HD200/HDi200 2540
DD 1000 external and internal 5 x HD200/HDi200 2920
DD 420 external and internal 2 x EF250/EFi250 2140
DD 630 external and internal 3 x EF250/EFi250 2540
DD 840 external and internal 4 x EF250/EFi250 3280
DD 500 external 2 x HD250 2140
DD 750 external 3 x HD250 2540
