INSTALLATION

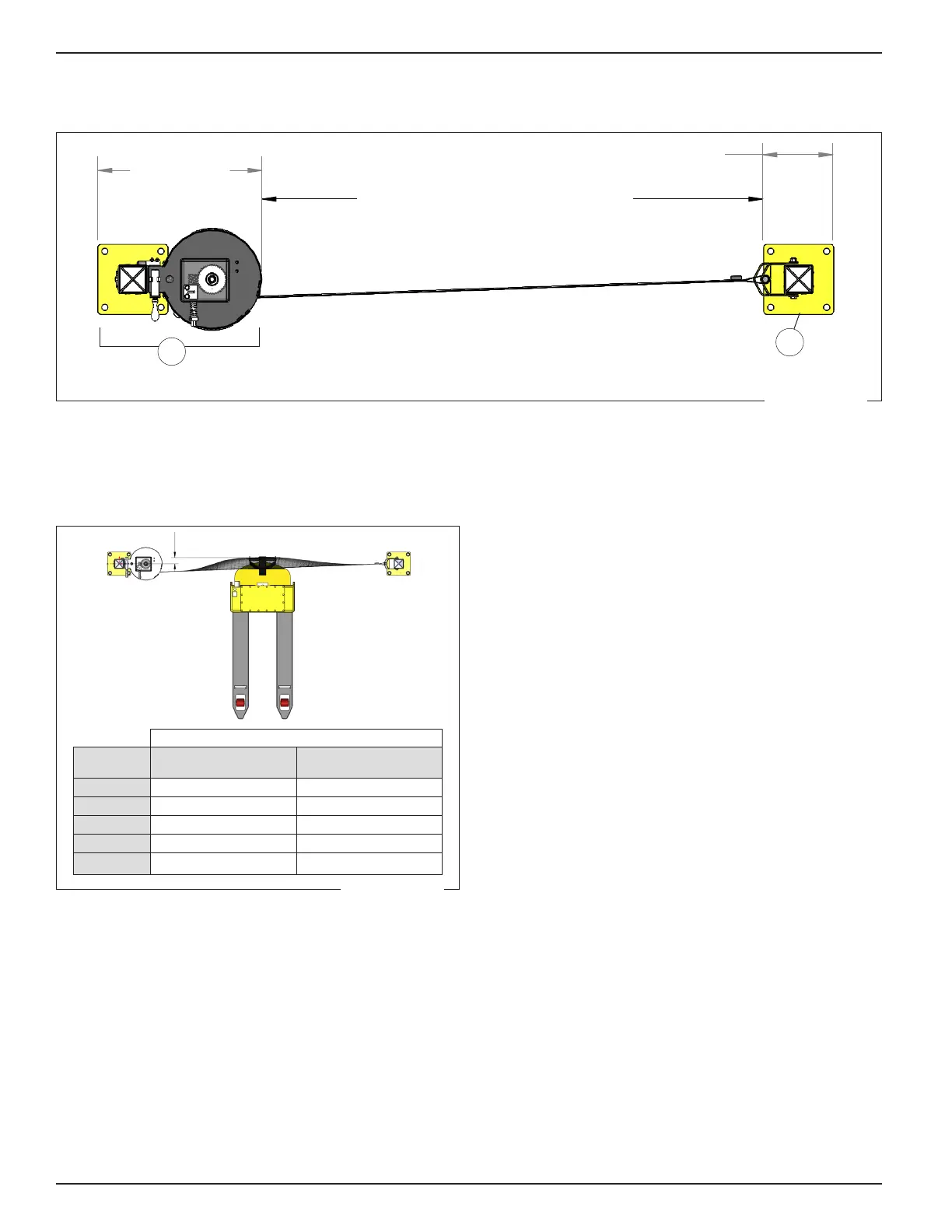

Positioning (Standard unit)
10.00in
254mm
23.42in
595mm
CLEAR OPENING WIDTH
Clear Opening Width
Maximum 30ft [9150mm] or 60ft [18300mm]
(per unit size ordered)
23.42in
[595mm]
10.00in
[254mm]
A
B
Align and position basket post assembly (A) and latch post
assembly (B).
NOTE: SpanGuard can be used for exterior installations.
Deflection/Offset Specifications
SpanGuard Deection (Measured from strap)
KE (Joules)
30ft [9150mm]
clear opening width
60ft [18300mm]
clear opening width
200 17in [432mm]
26in [660mm]
400 18.5in [470mm]
27.5in [699mm]
600 20in [508mm]
29in [737mm]
800 21.5in [546mm]
30.5in [775mm]
950 23in [584mm]
32in [813mm]
Figure 2
Figure 3
SpanGuard
®
