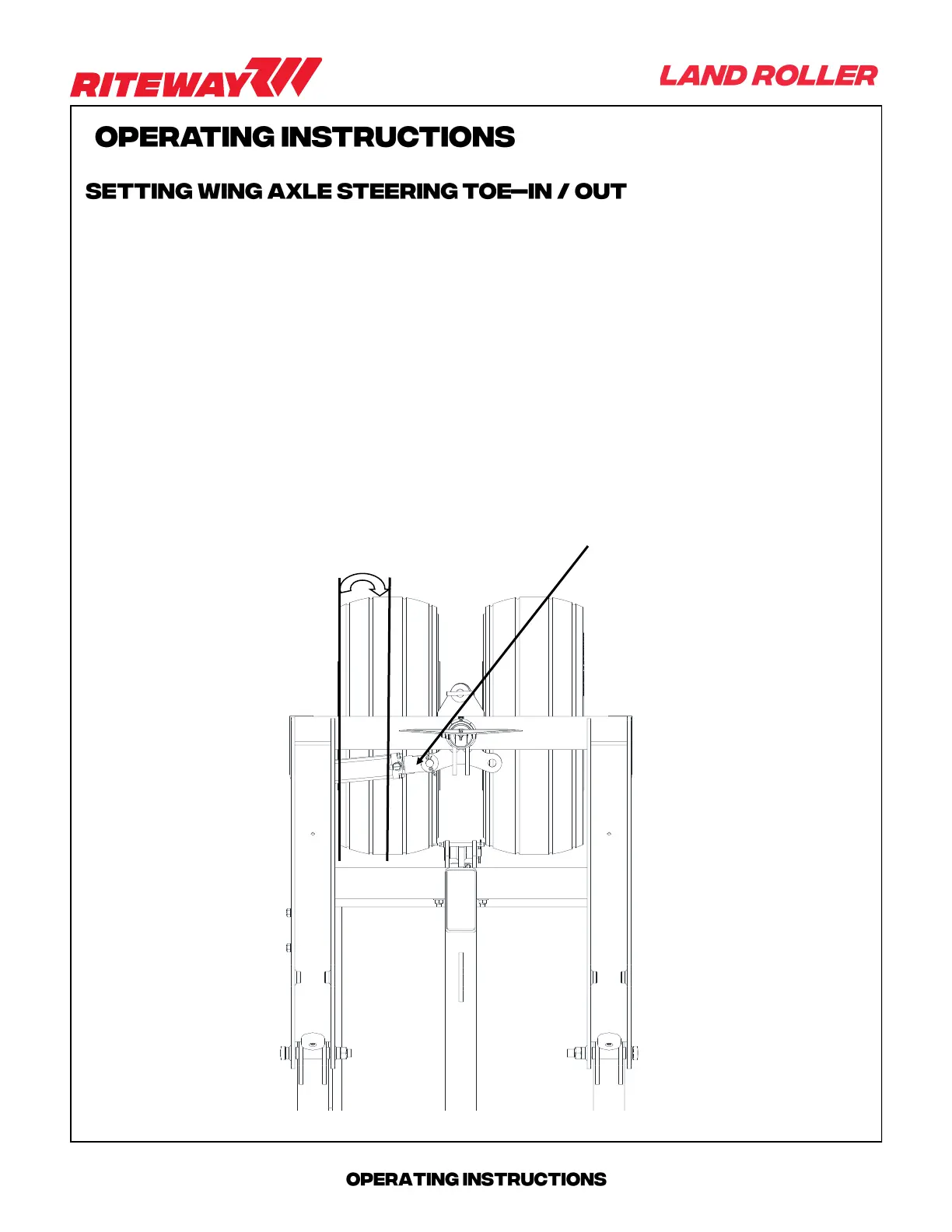

NOTE: Steering Axle adjustment is necessary if roller does not properly follow the tow
vehicle when in transport position. Adjustment must be made to left and right axles.
1. With unit in transport position, inspect the wing axle steering. With hydraulic steering cylinder set to
transport position (fully retracted), the tires must be aligned with a very slight toe—out
(approximately 1/2 to 1 degree). The front center line of the tire should be wider than the rear cen-
ter line by approximately 1/2”.
2. After adjustment, the unit should be transported a short distance to ensure that it trails properly.
Check with cylinder fully collapsed
1/2 to 1 degree of toe-out
