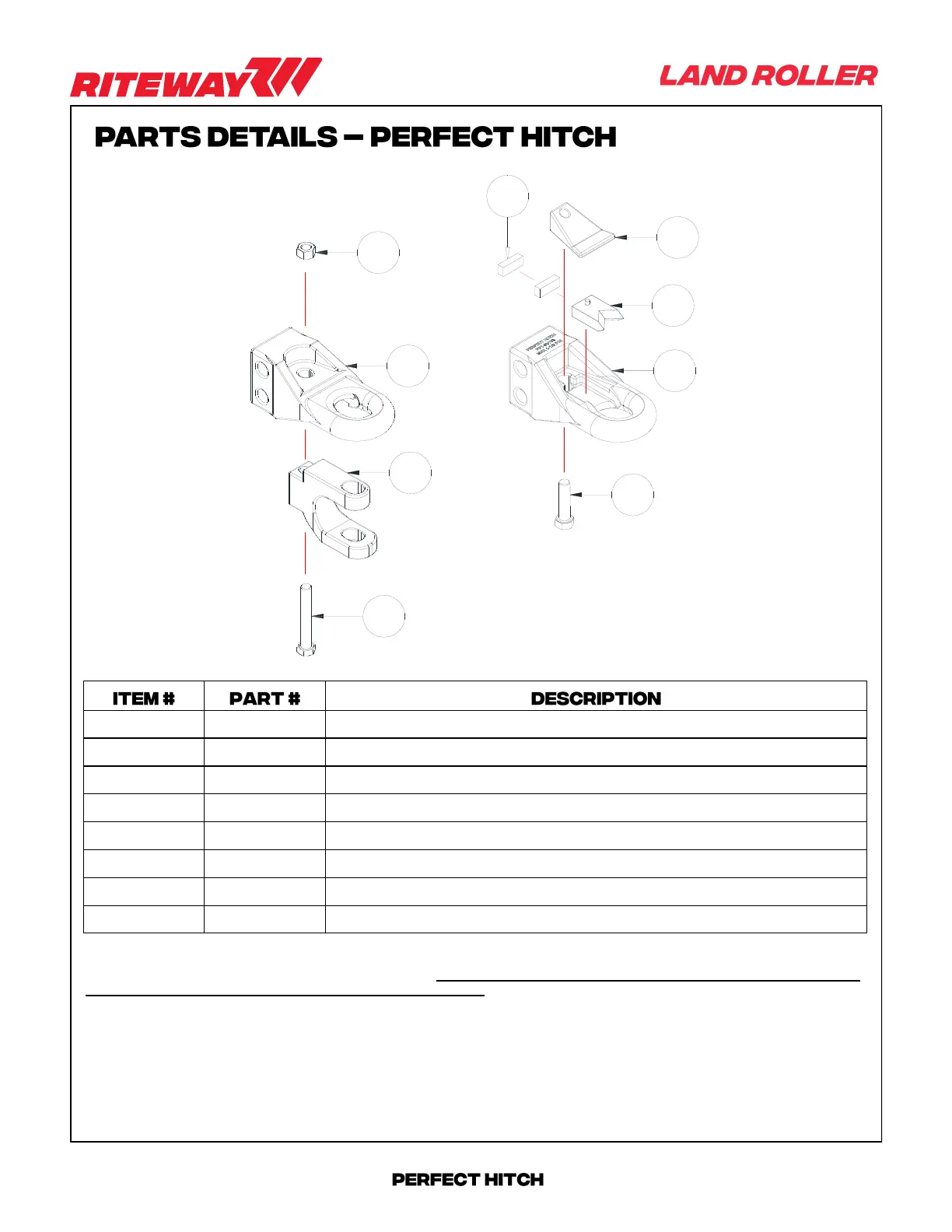

1 423-0005 Base Hitch (PP1-301VH)
2 423-0006 Clevis (PP1-208VR-10)
3 423-0019 Neoprene Cushion (PP1-205H)
4 423-0017 Top Plate Perfect Hitch (PP1-302V)
5 423-0018 V-Block (PP1-203VR)
6 526-1224 3/4” x 3” Capscrew, NC, Gr.5, Pltd.
7 526-6107 3/4” Stover Lock Nut, NC, Gr.B, Pltd.
8 526-1241 3/4” x 5-1/2” Capscrew, NC, Gr.5, Pltd.
The sliding V-block has a polyurethane cushion which is made to flex. The cushion also acts as a shock absorber to reduce
driveline stress, giving driveline components longer life. Do not remove all the cushions! Install the perfect hitch compo-
nents with bolt head on the bottom and the top plate on top.
Always adjust the V-block to your tractor draw pin size by following these steps:
1. Remove top plate by unscrewing ¾” bolt from bottom of Perfect Hitch and lifting top plate off.
2. The polyurethane cushion can be laid flat to achieve an extra ¼” of adjustment.
3. If more closure is needed metal spacers (not supplied) can be placed behind the cushions to push the V-block forward
and closer to the draw pin hole to tractor draw pin size.
4. Replace top plate and re-install ¾” bolt tightly (Approx. 200 ft/lb).
