Rittal Blue e+ Mont
age- und Installationsa
nleitung /
Assembly and installati
on instru
ctions / Notice de montag
e et d'installati
on
37

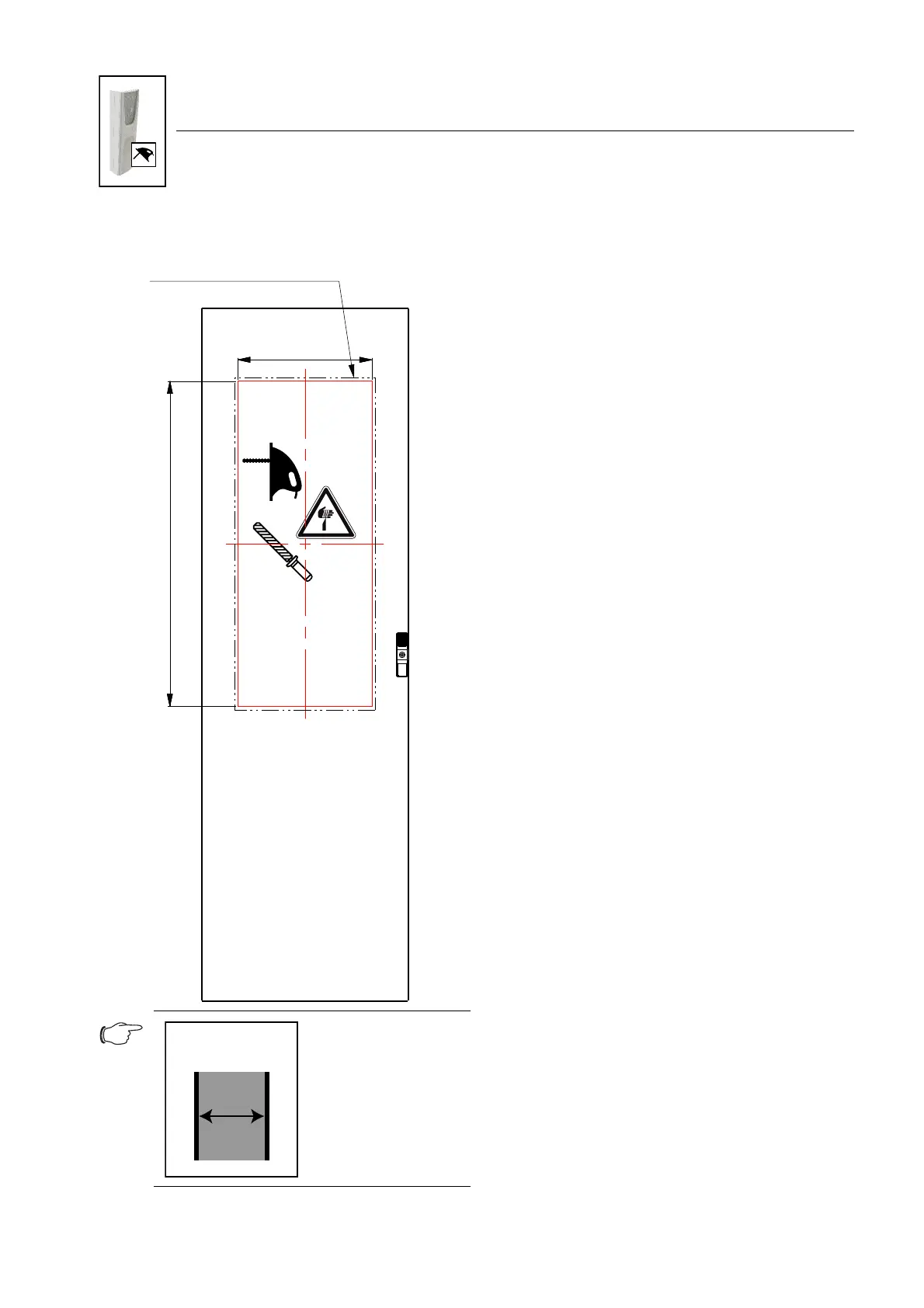

SK 3185x30
Montageausb
rüche / Mounting cut-o
uts / Découpes de mont
age
929±1
383±1
Kontur des Kühlger
äts
Contour of the cooling unit
Contour du climatiseur
≥
500 mm
36
38
Table of Contents
Download Options
2
Safety Instructions and Warnings
3
Sicherheitshinweise Safety Instructions Consignes de Securité
3
Table of Contents
10
Zubehör Accessories Accessoires
11
Befestigungs- und Installationsmaterial Mounting and Installation Materials Matériel de Fixation et D'installation
12
Technische Daten
13
Technical Specifications
13
Caractéristiques Techniques
13
Montagemöglichkeiten Mounting Options Options de Montage
15
Kühlgerät als Anbau Montieren External Mounting of the Cooling Unit Montage en Saillie du Climatiseur
17
Kühlgerät als Teileinbau Montieren Partial Internal Mounting of the Cooling Unit Intégration Partielle du Climatiseur
23
Full Internal Mounting of the Cooling Unit
27
Intégration Complète du Climatiseur
27
Kondensatwasserablauf Anschließen Connecting the Condensate Water Discharge Raccordement du Tuyau D'évacuation des Eaux de Condensation
32
Hinweise zur Elektroinstallation Notes on Electrical Installation Instructions Relatives à L'installation Électrique
32
Door Limit Switch
33
Alarm Relay
33
Elektrischer Anschluss Electrical Connection Raccordement Électrique
33
Strain Relief
34
Overvoltage Protection and Supply Line Load
35
Three-Phase Devices
36
Contour of the Cooling Unit
37
Montageausbrüche Mounting Cut-Outs Découpes de Montage
37
Abmessungen Dimensions Dimensions
39
Konformitätserklärung Declaration of Concormity Déclaration de Conformité
42
