GR2045401-RG-00/GR2045406-RG-00 18 of 27 20150831-Ver1
3
4

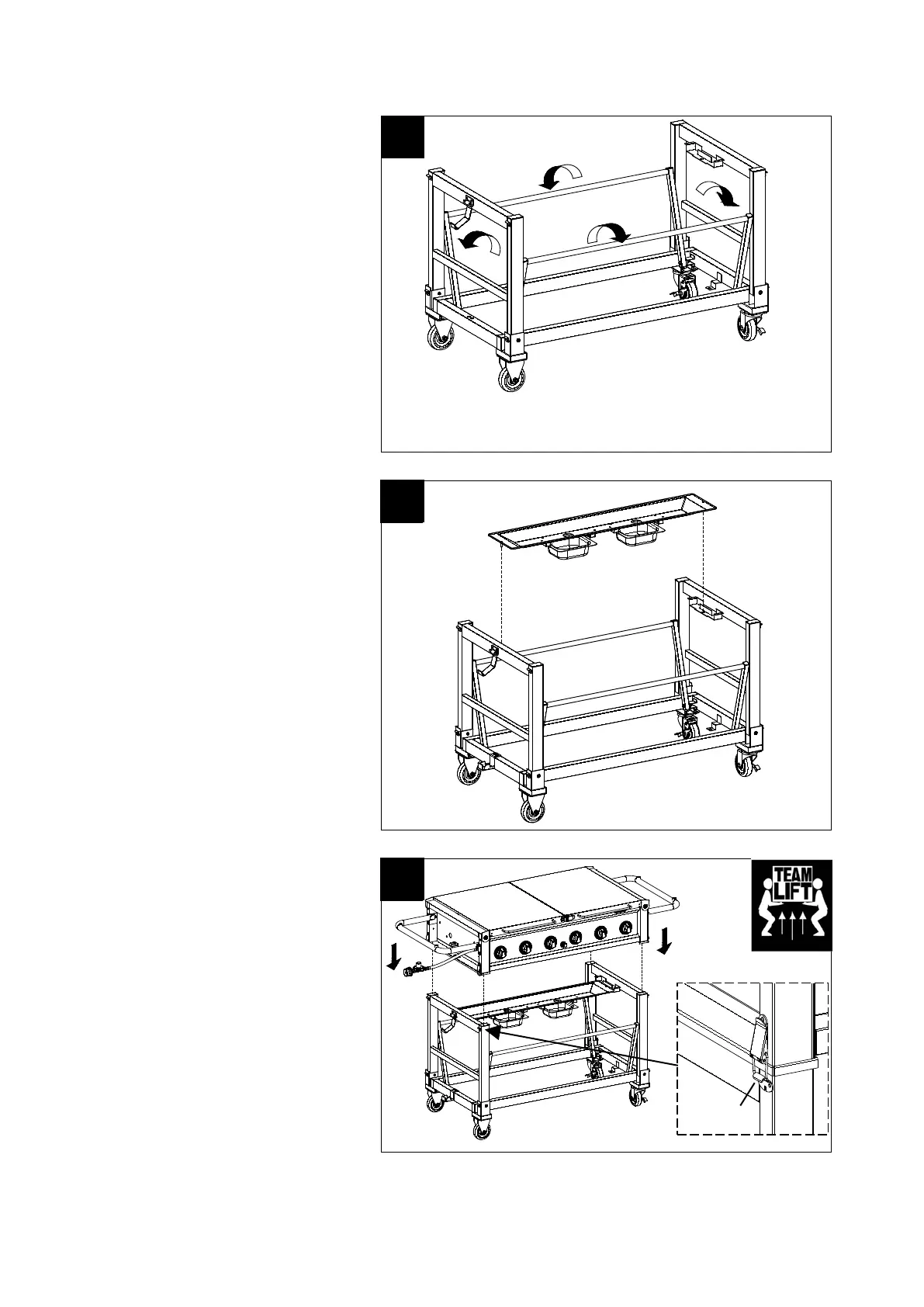

Step 3
Turn the grill cart upside down.
Open the left and right cart
supporting legs and then open the
horizontal front and rear bar
supports
to hold the left and right
supporting legs in position. Make
sure the bolts at the opposite ends
of the horizontal bars go into the
locking holes of the legs. Also turn
the gas tank holding hook
outward.
Step 5
With the help of other people,
place the grill body onto the cart.
Make sure the latches on the four
legs are tightly locked.
Step 4
Locate the grease r
the supporting brackets
upper left and upper right bars of
cart.
3
4
5
Latch
