AVON
Bedroom
Assembly Instructions
R-A
R-D
R-B
R-E
R-C
F-A
R-A
H-A
F-D
F-C

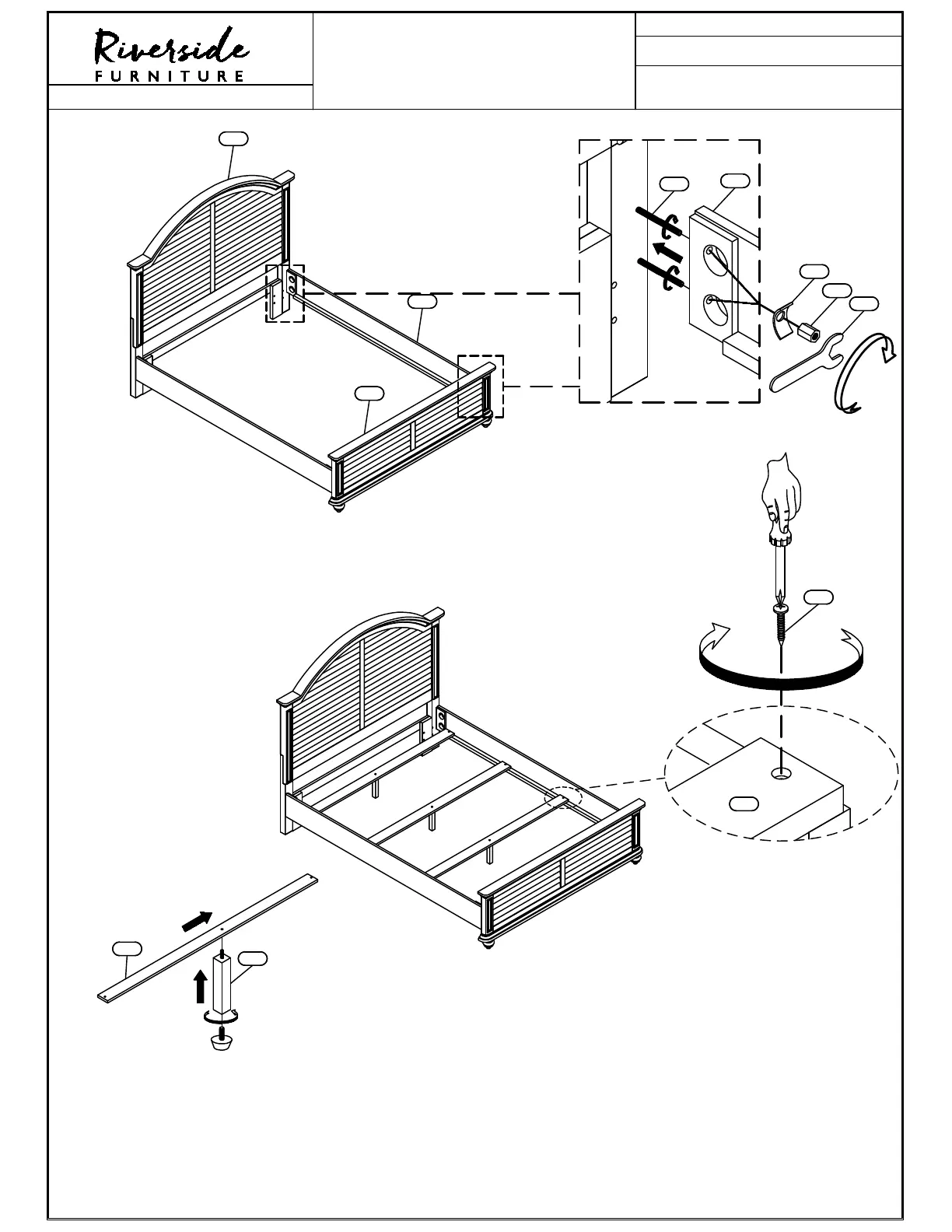

Steps:
7. Install all the All-Thread Bolts (R-D) into the metal threaded inserts installed in the Headboard Legs and into the metal inserts on the Footboard.
8. Carefully position one end of one Bed Rail (R-A) onto the All-thread Bolts on the Headboard and connect using the Arc Washer (R-B) & Nut
(R-C). Only partially tighten the Nuts until the Footboard has been connected. Repeat for other Bed Rail.
9. Position and connect the Footboard (F-A) to the other end of the Bed Rails, attaching as in the previous Steps.
10. Carefully align the Footboard to be 'square' with the Headboard. Using the Open Wrench (R-E) tighten all of the Nuts as shown.
11. Attach a support foot (F-D) to each slat (F-C) as shown.
12. Position the slats onto the side rails, making sure to space them evenly.
13. Attach the slats with the wood screws (F-E) as shown.
