49

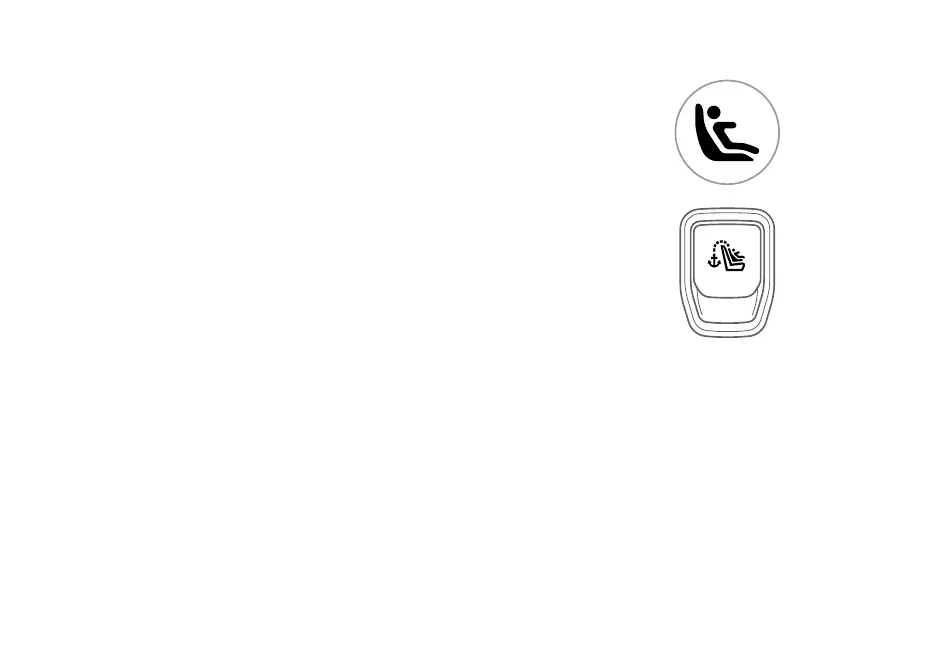

The lower anchorages are marked by this symbol:
They are located between the seat cushion and seat back.
The upper anchorages are marked by this symbol:
They are located on the rear shelf directly behind the seats.
1. Position the child seat between the two lower bar LATCH anchorages
corresponding to where you are installing the child seat.
2. Connect the lower hooks of the child seat to the lower bar anchorages located
in between the seat cushion and seat back. Avoid twisting the LATCH straps or
snagging the vehicle seat belt.
