RJM Mini Line Mixer User Manual

Mini Line Mixer Manual - Rev1.0 - 5/1/09

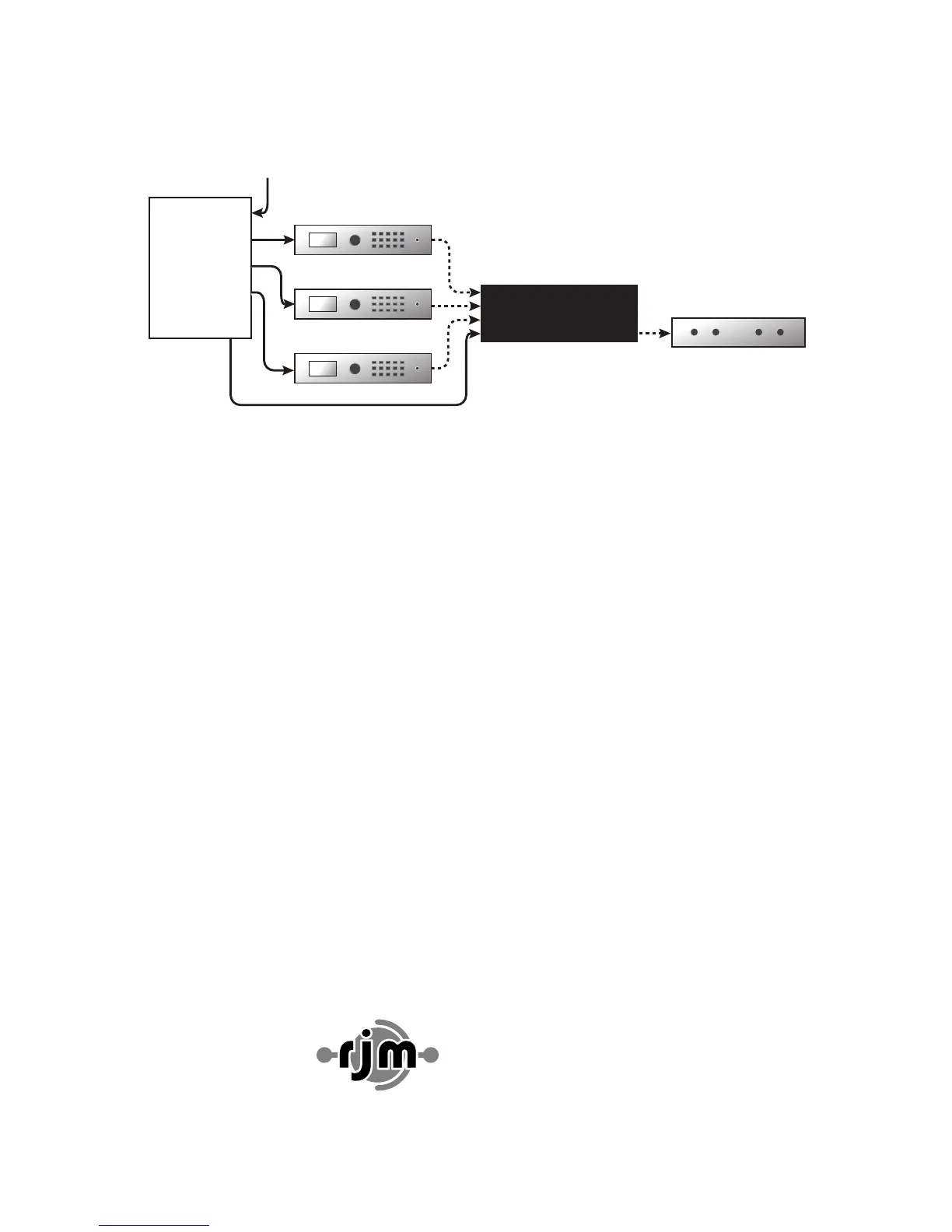

Mini Line Mixer Example Connection Diagram
(note: stereo connections are denoted by dashed lines)
The above diagram shows an example of how a parallel effects system can be created with the Mini Line
Mixer. An audio loop switcher sends the audio signal to multiple effects processors, which are mixed
together along with the dry signal. The output of the Mini Line Mixer is sent to a stereo power amp.
Please refer to the RJM Music web site for more connection diagrams and other how-to information.
A note on signal impedance: The Mini Line Mixer is designed to work with low impedance signals, like
those in an amplifier’s effects loop. In order to use it with a high impedance signal like an unamplified
guitar signal, the signal needs to go through a buffer before reaching the Mini Line Mixer.
Specifications
Dimensions
Quarter-rack enclosure
4 (W) x 1.5 (H) x 4 (D) inches
10.2 (W) x 3.8 (H) x 10.2 (D) cm
Weight
11.8 ounces
335 grams
Power
9VDC @ 150mA (can draw more current under unusual circumstances –
input levels much higher than standard audio levels or shorted outputs)
5.5mm OD, 2.1mm ID x 9.5mm barrel connector, center negative
RJM Music Technology, Inc.
2525 Pioneer Ave. Suite 2
Vista, CA 92081
Tel: +1-760-597-9450
Email: support@rjmmusic.com
1
2
3
4/Dry
Mini Line Mixer
Output
Power Amp
Input
Send 1
Send 2
Send 3
Dry Out
Loop
Switcher
From Preamp Output

RJM Mini Line Mixer Specifications

Power

power_supply_voltage	9 VDC
power_supply_current	150 mA
power_connector_size	5.5mm OD, 2.1mm ID x 9.5mm barrel connector, center negative

Weight and Dimensions

dimensions	4 (W) x 1.5 (H) x 4 (D) inches
dimensions_metric	10.2 (W) x 3.8 (H) x 10.2 (D) cm
weight	11.8 ounces
weight_metric	335 grams
