720.20 S.04
Measuring units K4, K5, K6
(for incorporation into RMG 720, DN 50 to DN 100, and into RMG 330, RMG 332, RMG 408)
Press valve stem towards main body; cap (130) and
a suitable tool (screw driver) can be used as a lever.
Exert pressure SLOWLY and wait until pressure
compensation is effected. Press valve stem
through until stop and let it go back smoothly:
The SAV is open and will re-engage.
When using the tripping valve RMG 919-3 instead
of a breathing line, make sure to screw out the
locking screw (100) prior to re-engagement
operation.
Measuring units K4, K5, K6
(for incorporation into RMG 402)
Screw out locking cap, turn it round, screw it on
to valve stem and turn slowly towards body;
the pressure compensation valve will respond.
Pull locking cap until stop and let it go back
smoothly: The SAV is open and will re-
engage.
In order to ensure perfectly reliable SAV-release
performance after re-opening, it is indispensable
to screw the locking cap (201) back into its normal
position.
• Tripping tests
In order to avoid the risk of mechanical damages tripping tests should be effected only after the measuring unit will
have been mounted into the main valve body.
ATTENTION
ATTENTION

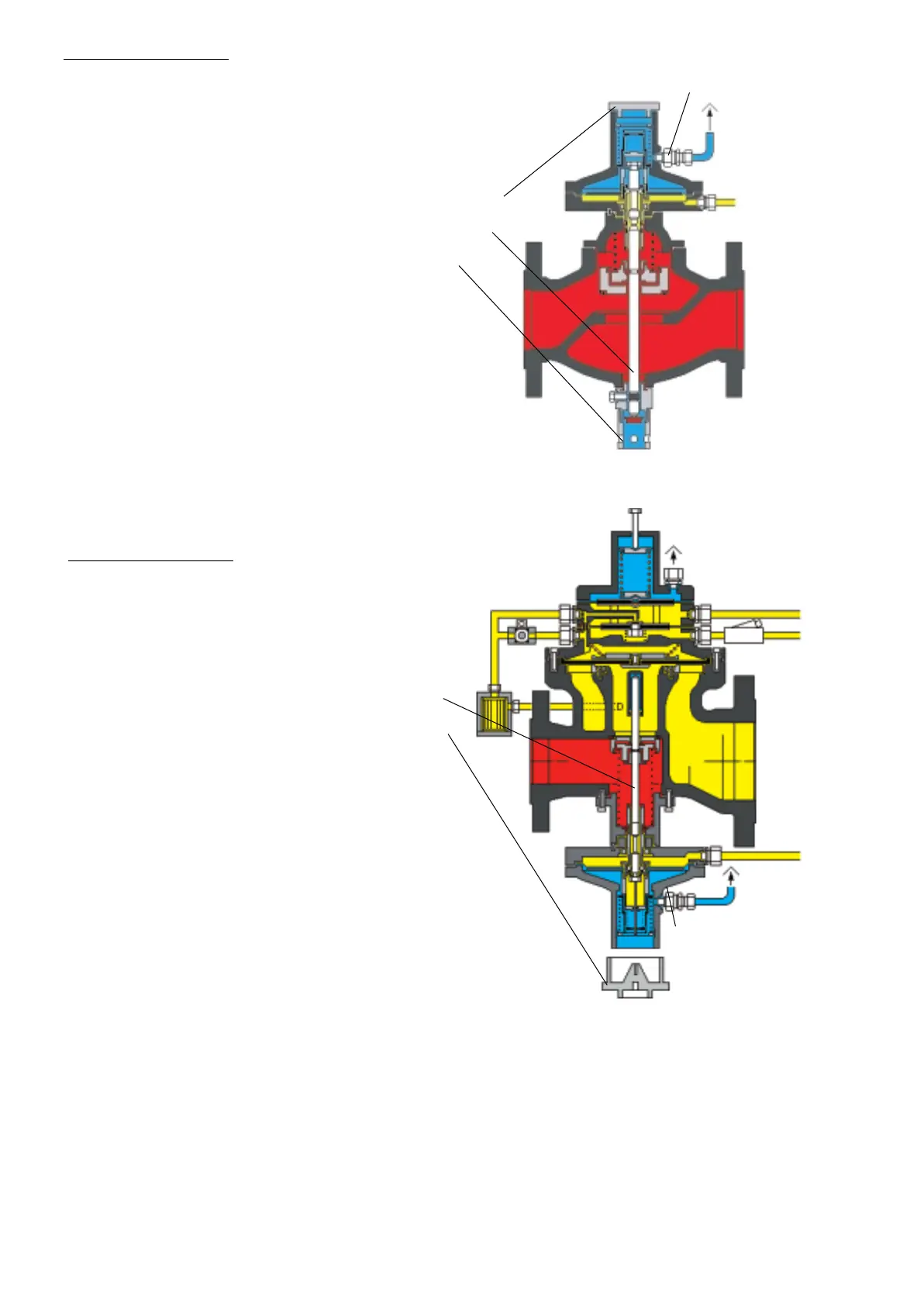

valve stem (207)
locking cap (201)
locking screw (100)
valve stem (156)
cap (130)
ATTENTION
tripping valve
RMG 919
tripping valve
RMG 919
Tripping tests with the measuring units K4, K5, K6 incorporated in the gas pressure regulator
RMG 402 must not be made as long as the locking cap (201) is screwed on to the valve stem
(207).
