RMG USZ 08 series User Manual

INTRODUCTION
...............................................................................................................................................................................................................
...............................................................................................................................................................................................................
Manual USZ 08 · EN05 · 2015-06
5
1. Measuring element type USZ 08-6P/3P 2. Signal processing unit type USE 09 3. EEx e connection box (optional) 4. Ultrasonic flowmeter computer type ERZ 2000 USC
4
Pressure
(RS 485)
4 Current outputs (0/4 - 20 mA)
110VAC/230VAC/24VDC 8 Contact outputs
ERZ 2000 USC
externe Umwertung
Temperature
COM1 Interface
max. distance 500m
24 VDC
Pr
T
1
2
3

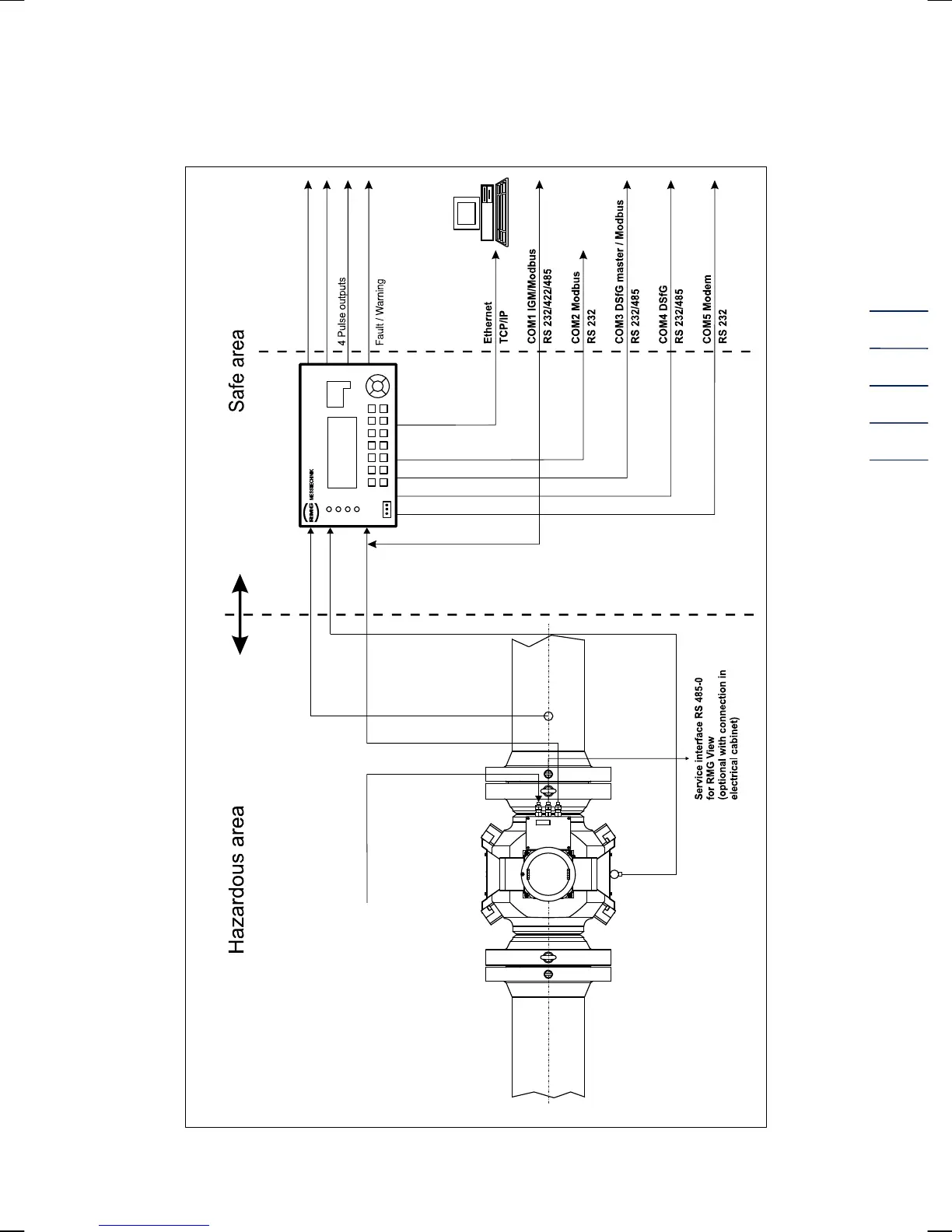

Basic version with an ERZ 2000 USC
