INTRODUCTION
...............................................................................................................................................................................................................
...............................................................................................................................................................................................................
Manual USZ 08 · EN05 · 2015-06
4

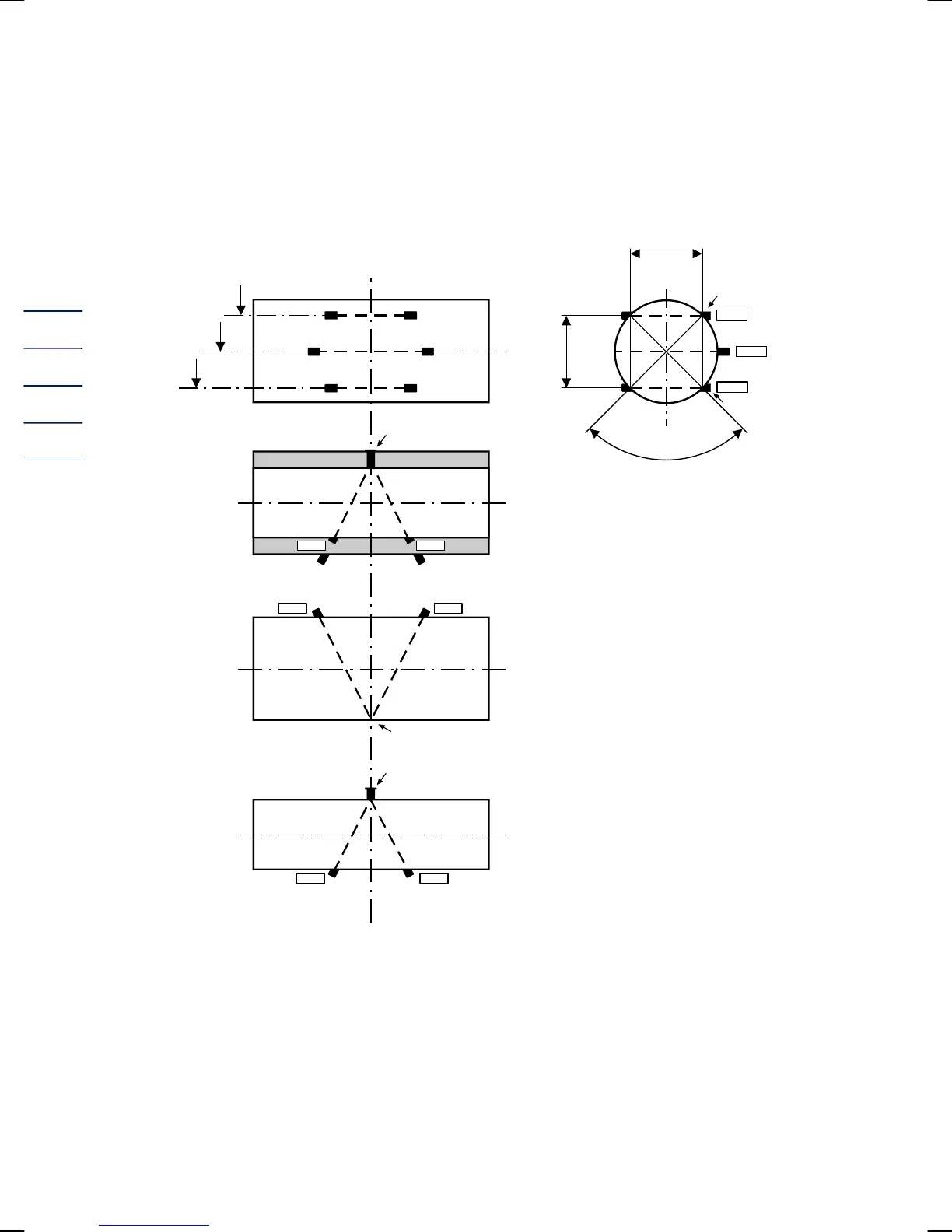

Geometric arrangement of the paths of the USZ 08-3P
A
90°
A
Path 1
Reflector
Reflector
Reflector
Reflection on the inner wall of the pipe
Reflector
Path 3
Path 2
Level 2
Level 1
Level 1
Level 2
Level 3
Level 3
TD1.1
TD3.1
TD2.1
TD1.2
TD3.2
TD2.2
TD2.1
TD2.2
TD1.1
TD3.1
TD1.2
TD3.2
In each of the three planes, there is a reflection path (what is called a V-path). The ultrasonic
flowmeter has been designed symmetrically with regard to the middle plane and axially with regard
to the centre of the meter.
