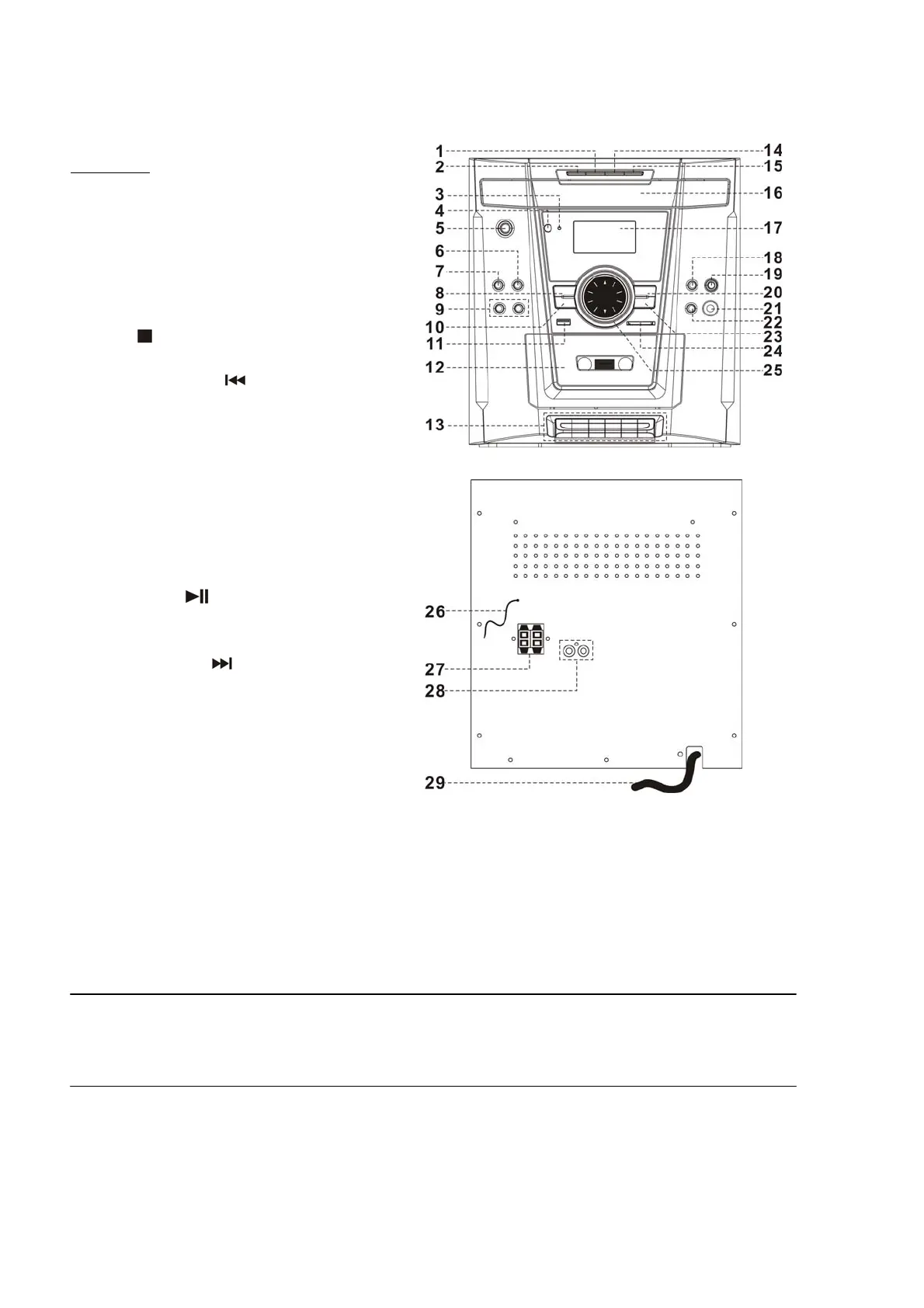

LOCATION OF CONTROLS
MAIN UNIT
1) Alarm button
2) Snooze button
3) Standby LED indicator
4) Remote sensor
5) On/Standby button
6) Memory/Clock-Adjust button
7) Play Mode button
8) Stop
/St-Mono button
9) Folder/Pre-Up/down button
10) Skip/Tuning Down
button
11) USB Socket
12) Cassette compartment
13) Cassette key
14) Sleep button
15) CD Tray Open/Close button
16) CD tray
17) LCD display
18) Preset EQ button
19) Function button
20) Play/Pause
button
21) 3.5mm Headphone jack
22) Display/ID3 button
23) Skip/Tuning Up
button
24) SD/MMC card slot
25) Volume knob
26) FM wire antenna
27) Speaker Terminal (L/R)
28) Aux-in socket
29) AC cord
Caution:
Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous
radiation exposure.
This unit should not be adjusted or repaired by anyone except qualified service personnel.
Important:
Since movement of the CD mechanism and the sensitive circuitry may cause interference to the radio tuner nearby, switch this
unit off while operating other
radio devices
Precautions for use
Installation
Unpack all parts and remove protective material.
Do not connect the unit to the mains before checking the main voltage and before all other connections have been made.
Do not cover any vents and make sure that there is a space of several centimeters around the unit for ventilation.
Connection
1. Connect the AC cord (29) to the AC outlet, the unit will go to standby mode and the Standby LED indicator (3) will light up.
2. Connect the speaker wire to the Speaker Terminal (27) located on the back of unit.
3. Turn on the unit (5), if the LCD display (17) is on with backlighting, it means the power supply is normal. Now your system is
ready to play the music.
