Distribution Panel
58
© 2014 by Roadtrek, Inc.
Distribution Panel
120 volt AC breaker panel and 12 volt fuses
AC Breaker Panel

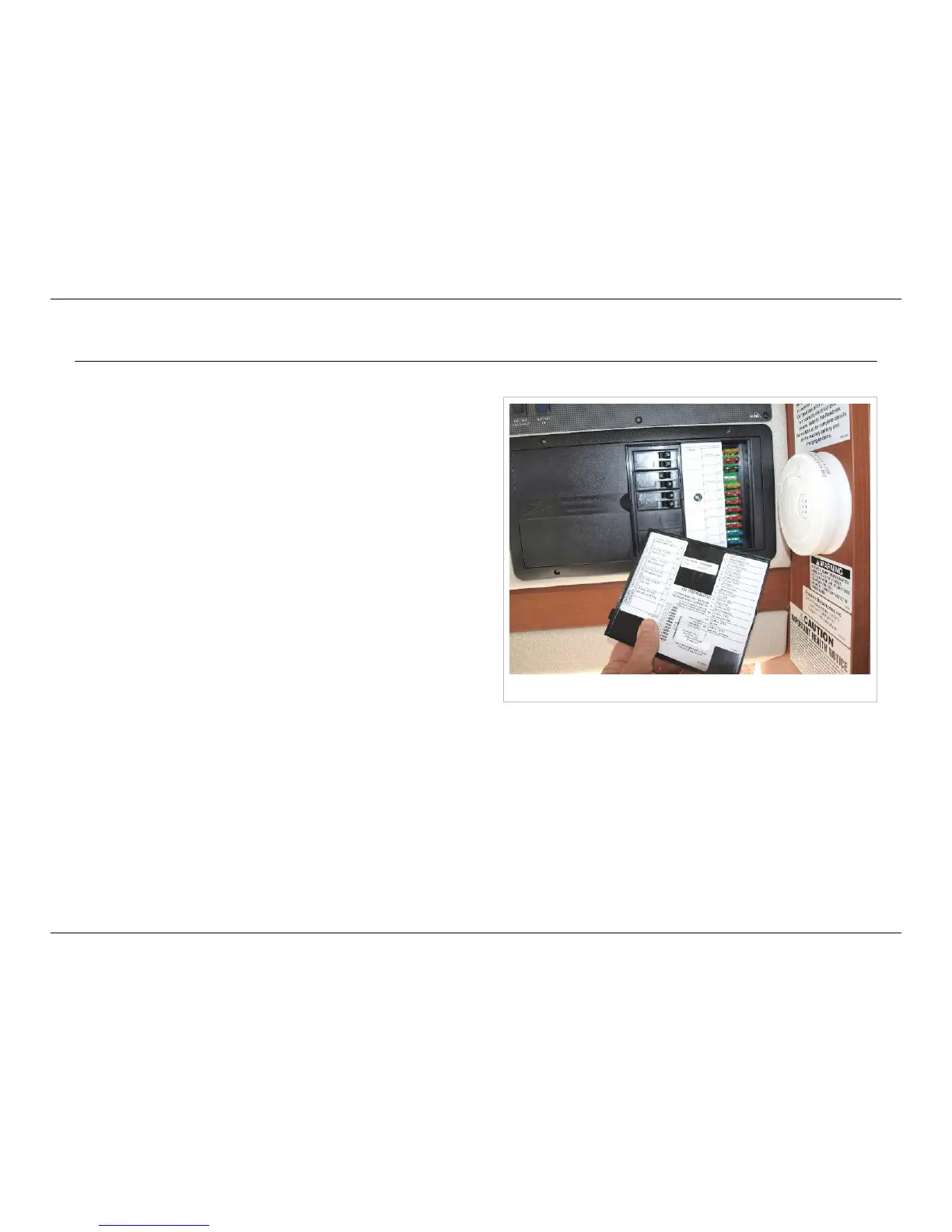

The 120 volt breakers are located above the side door, just
below the monitor panel, behind a black plastic cover. Flip the
cover to the right and note the label under the cover with the
identifying information on each breaker, telling you what each
circuit breaker supplies power to. When storing the Roadtrek for
the winter, turn off the battery disconnect switch and all circuit
breakers in this panel.
12 Volt Fuse Panel
The 12 volt fuses are located to the right of the 120 volt AC
breakers. The label on the inside of the cover has identifying
information for each fuse, telling you which light or appliance it
supplies power to.
