HOWTO: Monitor Panel
89
© 2014 by Roadtrek, Inc.
Pressing the bottom of the switch selects power save off. When this setting is selected, the inverter will be on continuously.
There is a shore power indicator light to the right of the switch to tell you the system is receiving shore power. There is also a
battery charging indicator light to tell you when the batteries are being charged by shore power.
Patio Light
On the monitor panel, the top left switch is the patio light switch. Press the top of the button to turn the lights on, and the
bottom to turn them off. These are LED lights and use very little power.

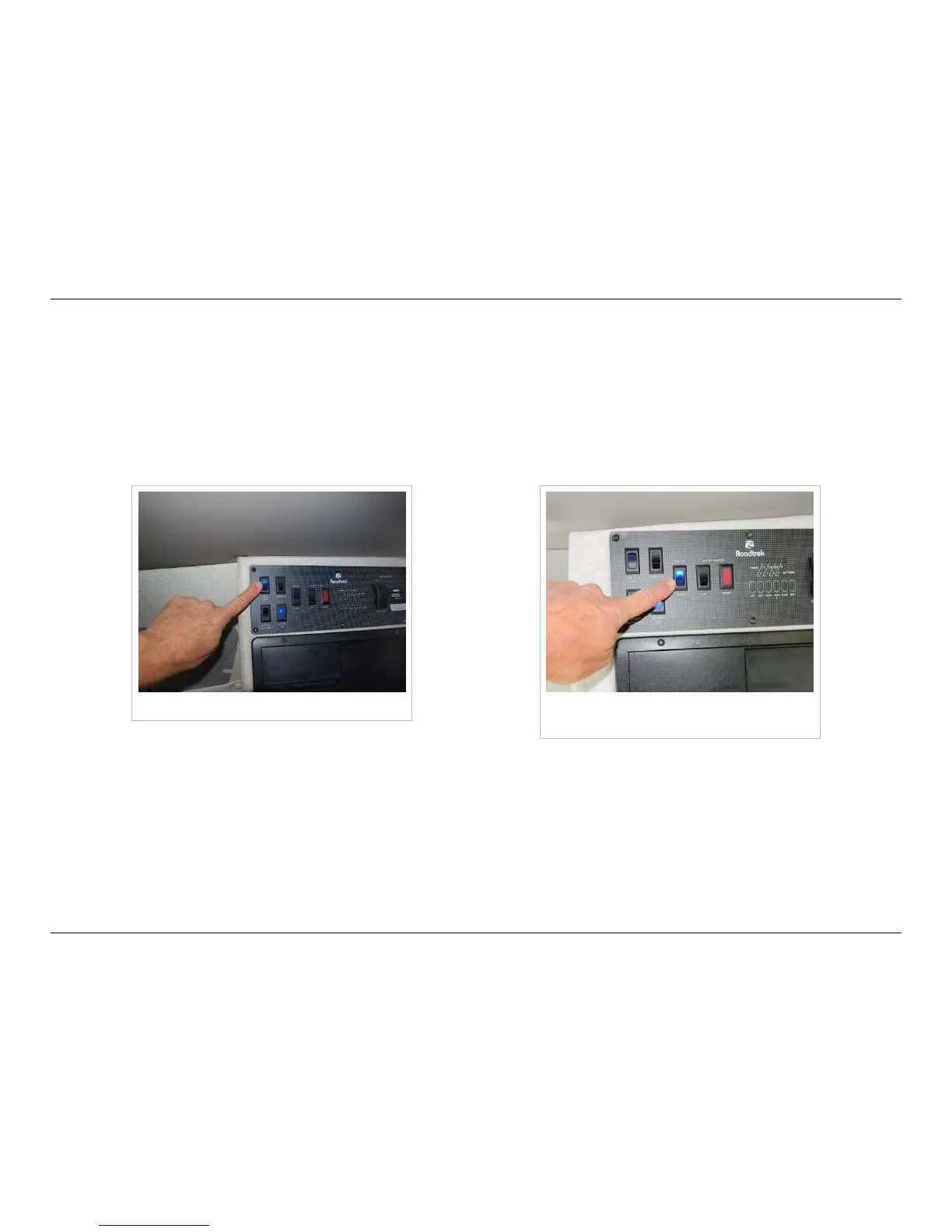

Patio light switch Water pump switch on (blue indicator
light lit)
