Distribution Panel
60
© 2015 by Roadtrek, Inc.
12 Volt Switch Panel

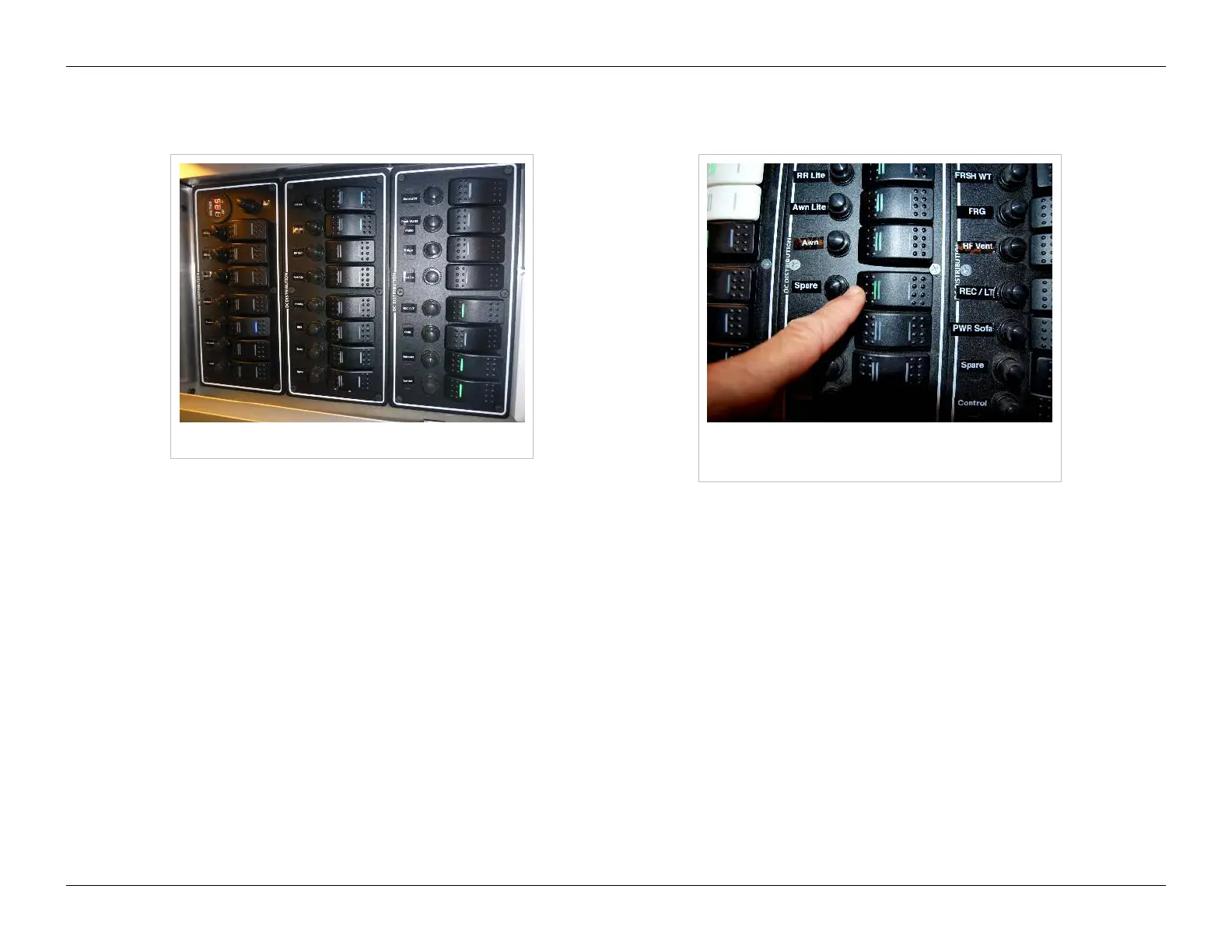

12 volt rocker switches 12 volt three-way switch in automatic
position (two green lights illuminated)
The 12 volt rocker switches are located on the left side of the distribution panel in three vertical rows.
The left two columns of switches are three-position switches, automatic/off/manual. For each three-position rocker switch, the
center position is off (no lights on the switch), the right position (one blue light on the switch) provides unswitched power to
the device, and the left position (two green lights on the switch) provides power to the device and also enables remote
control by the tablet or internet interface.
