Robin 600 LEDWash - 2 Fixture Exterior View

5

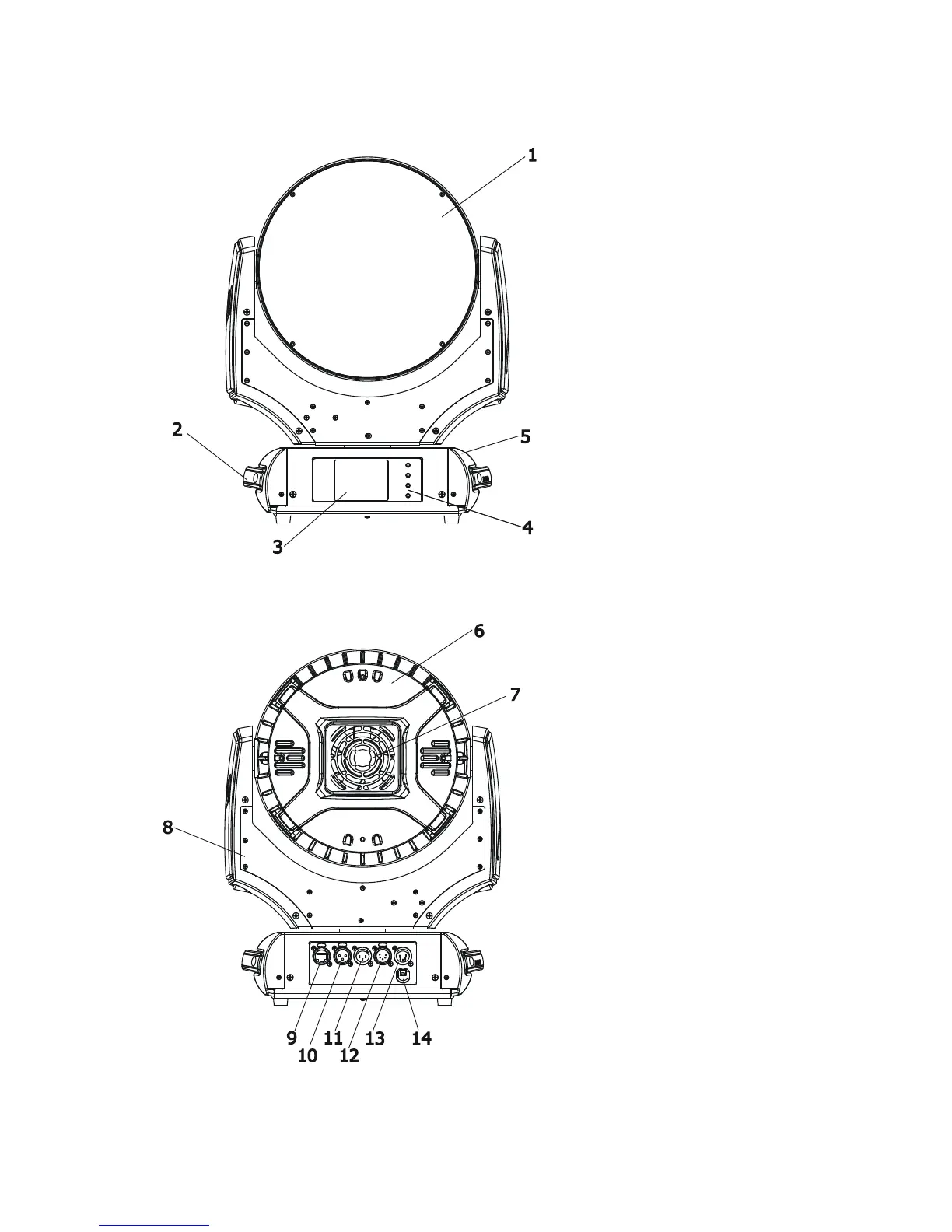

2. Fixture exterior view
6 - Head cover
7 - Fan
8 - Yoke
9 - Ethernet input
10 - 3-pin DMX OUT
11 - 3-pin DMX IN
12 - 5-pin DMX OUT
13 - 5-pin DMX IN
14 - Power cord
1 - Lens array
2 - Carrying handle
3 - QVGA touch screen
4 - Control buttons
5 - Base
The ENTER/DISPLAY ON button also serves for switching the display on when the xture is disconnected
from the mains.
