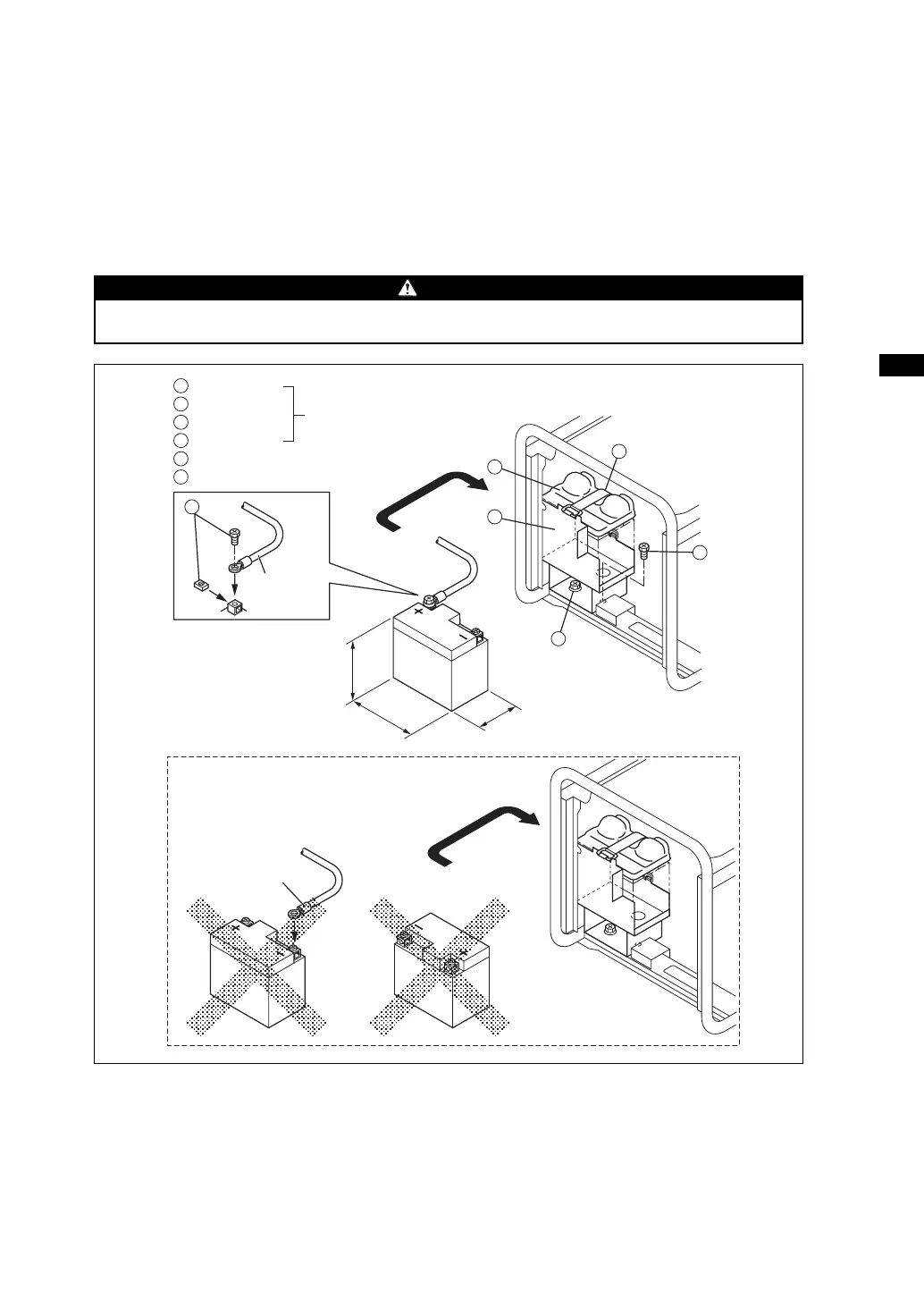

(d) Arrange the wiring so that it won't be damaged by possible vibration caused by the engine.
(e) Only after checking that the engine's starter key is in the "OFF" position, securely connect the red cable,
to the positive (+) terminal. And then connect the other cable to the negative (-) terminal.
Red cable : to the (+) terminal
Black cable : to the (
- ) terminal
Should the connection be made in incorrect manner, the engine will be broken.
CAUTION
RED CABEL
RED
CABEL
5
LESS THAN
131 mm [5.2 in.] (RG2800iS / 3200iS)
162 mm [6.4 in.] (RG4300iS)
LESS THAN
114 mm [4.5 in.] (RG2800iS / 3200iS)
136 mm [5.4 in.] (RG4300iS)
LESS THAN
71 mm [2.8 in.] (RG2800iS / 3200iS)
82 mm [3.2 in.] (RG4300iS)
1
2
3
4
5
1
6
2
3
4
Battery Base
Flange Bolt
Screw
Accessory parts
Battery Band
Bolt and Nut
6
Battery cover
