Robin RGX5500 User Manual
4
of 1
of 1 rating
94 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

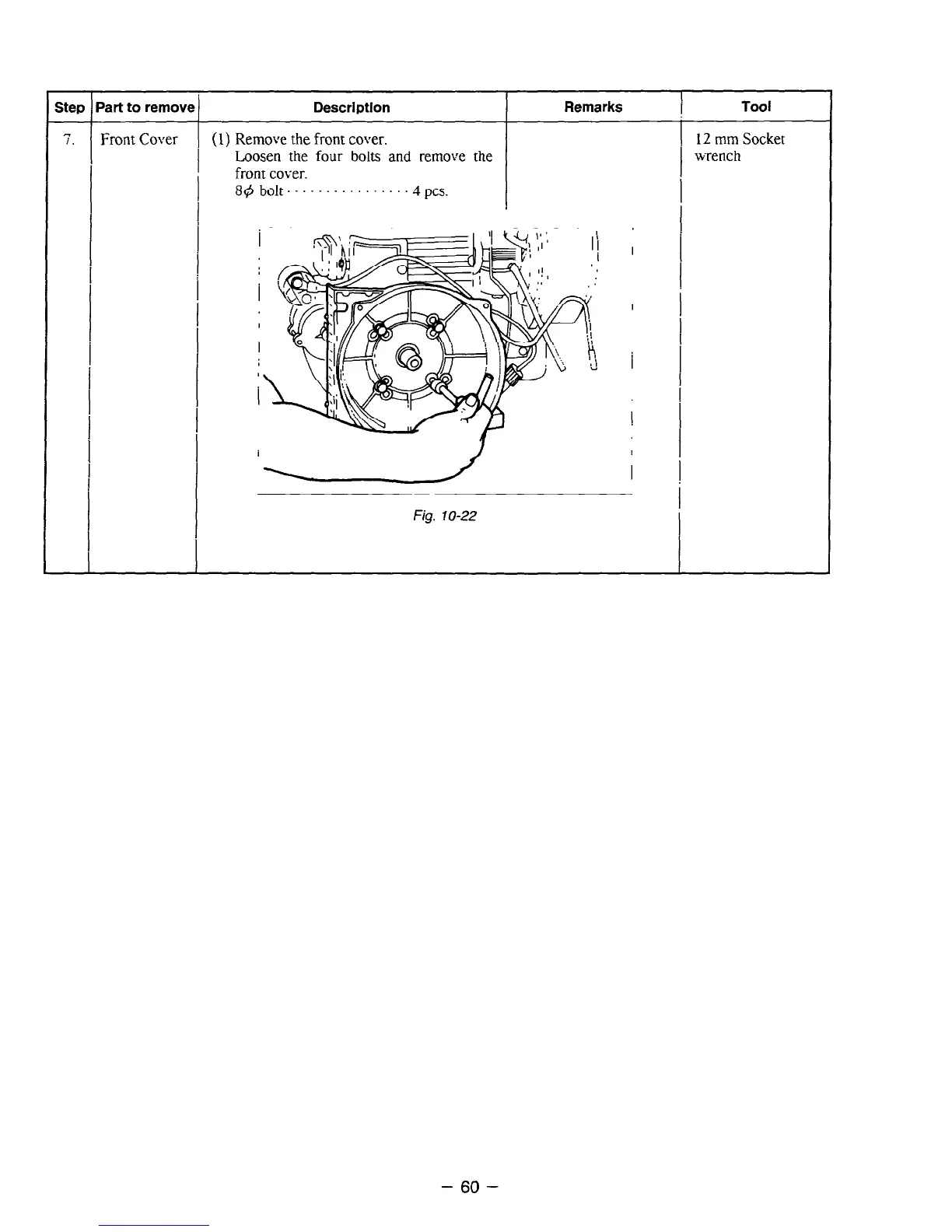

step
7.
‘art
to
remove
Front
Cover
B
t
I
I
I
I
I
1
Descrlptlon
(1)
Remove
the
front
cover.
Loosen
the
four
bolts
and
remove
the
front
cover.
84
bolt
.
.
.
.
4
pcs.
Remarks
I
4
i
.!
ii
fi
/
J
1
Fig.
lo-22
Tool
12
mm
Socket
wrench
-
60
-
62
64
Table of Contents
Default Chapter
2
Table of Contents
2
1 Specifications
4
2 Performance Curves
6
Model RGX1800
6
Model RGX2400
8
Model RGXCJ500
11
Model RGX5500
14
DC Output
17
3 Features
18
4 General Description of the Generator
19
External View of Generator
19
Control Panel
20
Location of Serial Number and Specification Number
34
5 Construction and Function
35
Construction
35
Function
35
Description of Generator Operation
39
6 Safety Precautions
42
7 Range of Applications
43
8 Measuring Procedures
46
Measuring Instruments
46
AC Output Measuring
49
Measuring Insulation Resistance
49
9 Checking Functional Members
51
Pilot Lamp
51
AC Receptacles
51
Circuit Breaker
52
Stator
52
Rotor
53
Condenser
53
Diode Rectifier
54
Preparation and Precautions
55
Special Tools for Disassembly and Assembly
55
Disassembly Procedures
56
Assembly Procedures
64
Checking, Disassembly and Reassembly of the Control Box
71
11 Troubleshooting
72
No AC Output
72
AC Voltage Is too High or too Low
74
AC Voltage Is Normal at No-Load, but the Load Cannot be Applied
75
No DC Output
76
Idle Control
77
12 Wiring Diagram
80
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Robin RGX5500 and is the answer not in the manual?
Ask a question
Robin RGX5500 Specifications
General
Brand
Robin
Model
RGX5500
Category
Portable Generator
Language
English
Related product manuals
Robin RGX1800
94 pages
Robin RGX2400
94 pages
Robin RGX3500
94 pages
Robin RGD351
82 pages
Robin RGV6100
45 pages
Robin RGV2200
88 pages
Robin RGD3700
78 pages
Robin RG2800is
26 pages
Robin R650
32 pages
Robin R1700i
22 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
