21
D

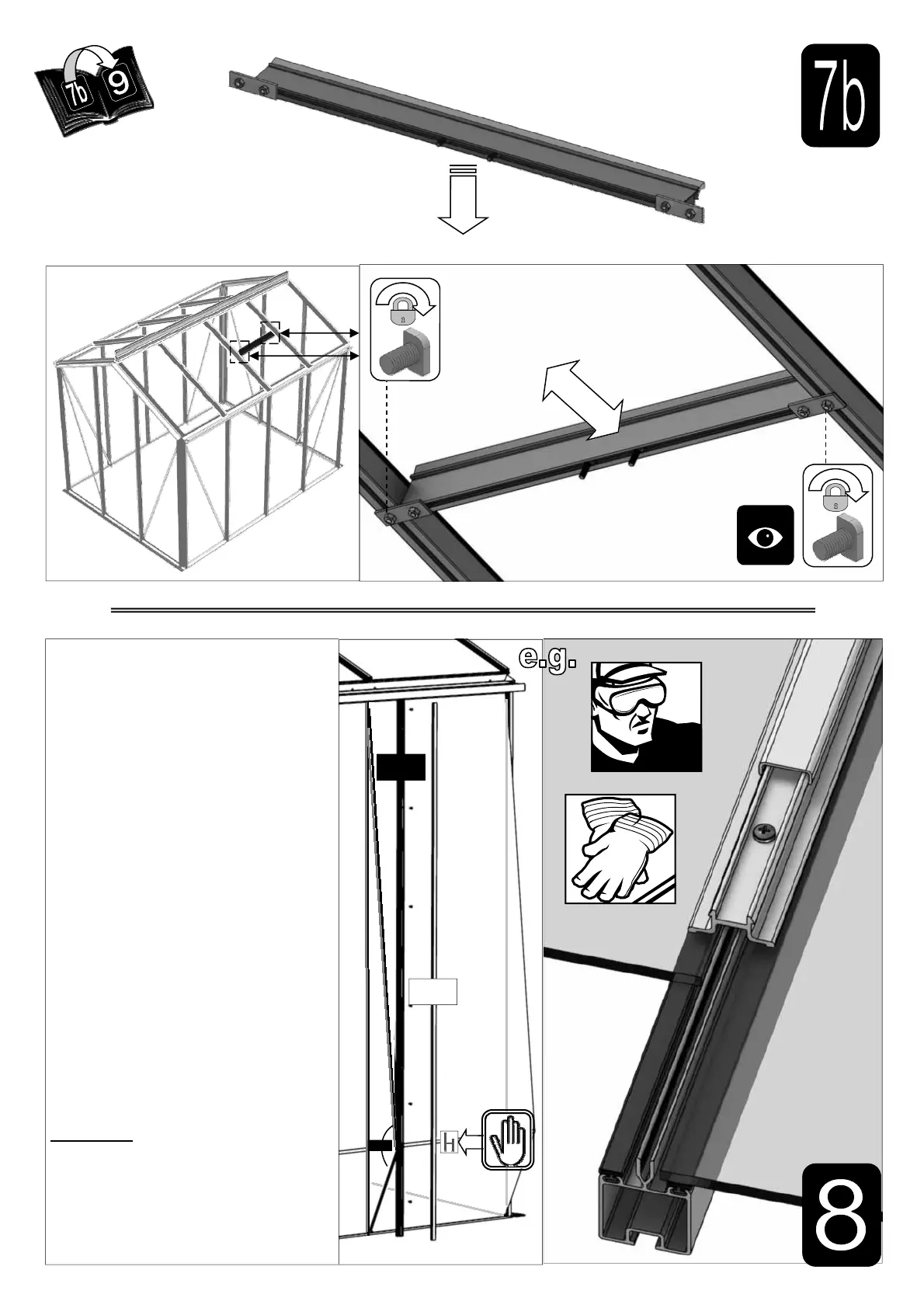

GLAZING (plans pto):
Glass and aluminium can potentially cause
injury. Please ensure you wear protective
goggles, gloves, headgear and suitable foot-
wear when assembling and glazing the build-
ing.
Please remember that glass is fragile and
should be handled with extreme care. Always
clear up and dispose of any breakages imme-
diately.
Layout the plastic bar cappings e.g. D812
and covers e.g. D825 around the building like
a sundial checking that all is present and cor-
rect, see right and pto. You can also place
the roof cappings in the gutters so they are
closer to hand.
The glass in the sides has to bevel on the
black / white separator strip (see right) which
is on top of the 305mm high glass base pan-
els. This bevelling action allows the glass to
tuck underneath the gutter and roof corner
canopy. Use the capping e.g. D812 and the
self tapping screws to then hold the glass in
place. The covers then enclose the screw
heads giving a neat finish e.g. D825.
IMPORTANT
: On the roof sections please
make sure that you place a screw around
25mm / 1” from the bottom of each capping
strip (create a hole in the plastic if required)
and that the screws are nice and tight to
avoid any glass slippage.
S
B
D825
D812
125°
