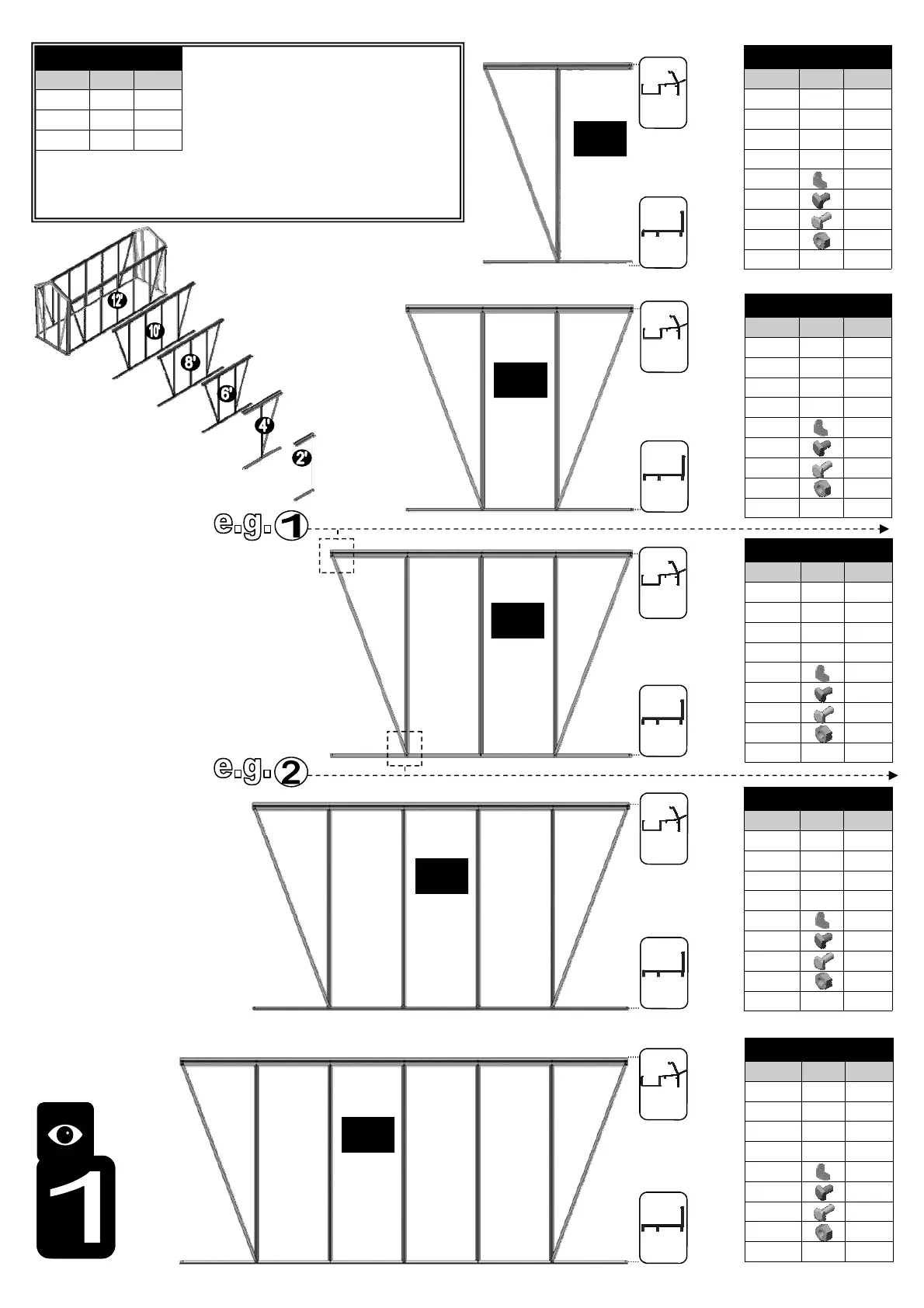

On the 2’ long model the sides have
no vertical side bar ‘D066’. Because of
this the sides have little substance and
you will find it easier to skip this sec-
tion ‘1’ until you have built the front
(section 2) and rear (section 3). The
sides can then be built in situ during section ‘4’ where the
gutters ‘D1045’ and cills ‘D1046’ will allow the front and rear
to connect.
6’
X 2
12’
X 2
8’
X 2
10’
X 2
D042
D043
D014
D021
D015
D022
D016
D023
Part No mm Quantity
D016 3757 2
D023 3754 2
D066 1676 10
D103 1787 4
D174 8
M6-10mm 10
M6-15mm 14
M6-NUT 24
12’ X 2
Rubber 1000 34
Part No mm Quantity
D015 3137 2
D022 3134 2
D066 1676 8
D103 1787 4
D174 8
M6-10mm 8
M6-15mm 12
M6-NUT 20
10’ X 2
Rubber 1000 27
Part No mm Quantity
D014 2517 2
D021 2514 2
D066 1676 6
D103 1787 4
D174 4
M6-10mm 6
M6-15mm 10
M6-NUT 16
8’ X 2
Rubber 1000 21
Part No mm Quantity
D042 1897 2
D043 1894 2
D066 1676 4
D103 1787 4
D174 4
M6-10mm 4
M6-15mm 8
M6-NUT 12
6’ X 2
Rubber 1000 14
Part No mm Quantity
D070 1277 2
D071 1274 2
D066 1676 2
D103 1787 2
D174 2
M6-10mm 2
M6-15mm 4
M6-NUT 6
4’ X 2
Rubber 1000 7
D070
D071
4’
X 2
2’ X 2
Part No mm Quantity
D1045 657 2
D1046 654 2
D103 1787 2
