Adjusting the brake of the motor
If the run down time of the saw motor exceeds 10 seconds, then the brake will need to be
readjusted.
This is done as follows: without removing the motor cowling, turn the bolt holding the ventilator fan on
the motor axle one 1/16th of a turn clockwise and make a brake test.
When needed adjust the brake furthermore untill it does not exceed 10 seconds.
The air gap between ventilator fan (brake disk) and brake liner (Ferrodo) is factory set at 0,25 mm, this
under normal conditions.

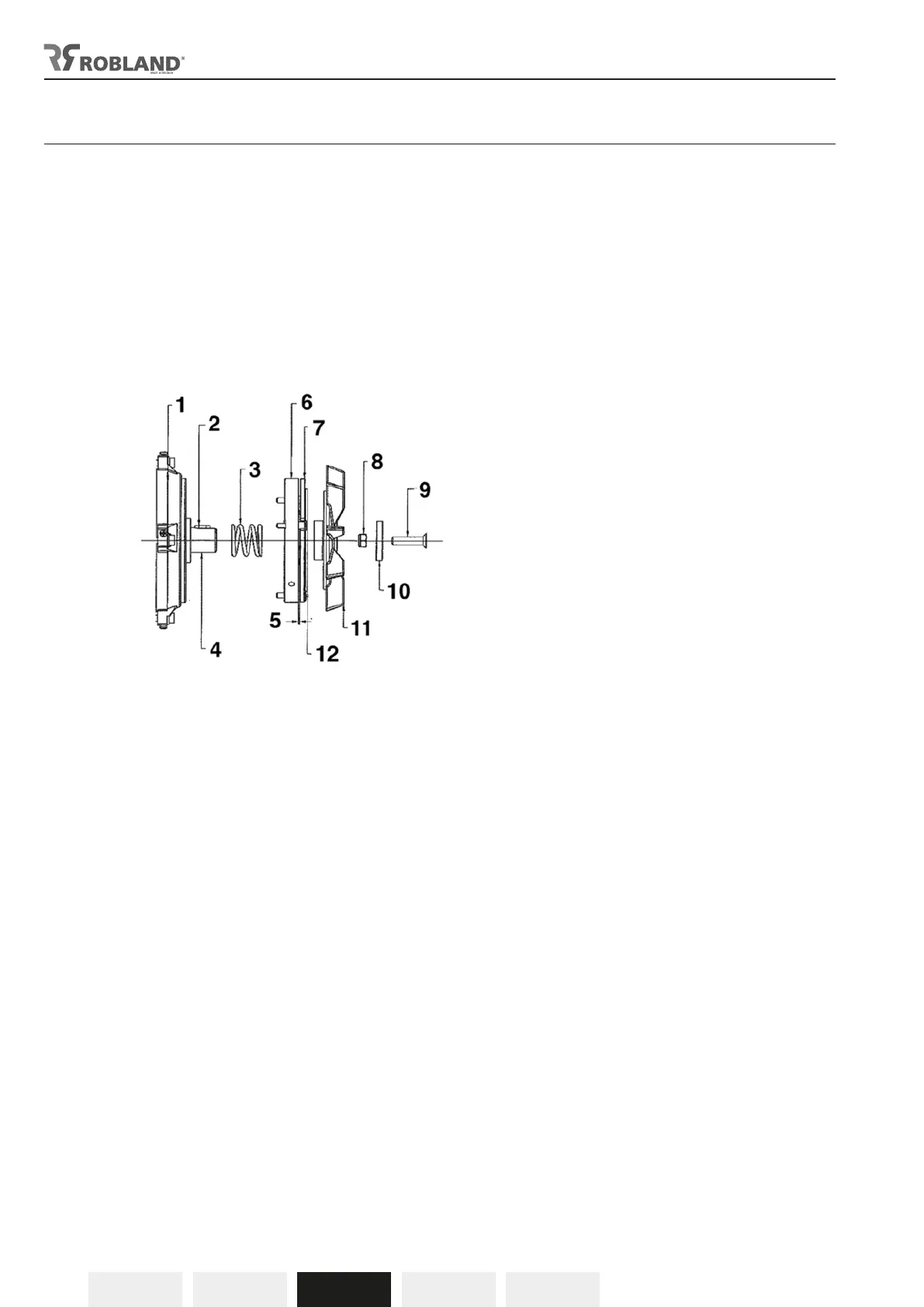

1 Motor frame
2 Key
3 Spring
4 Motor axle
5 Air gap
6 Electromagnet
7 Mobile disk
8 Locking nut
9 Adjustment bolt
10 Washer
11 Braking disk cast iron
12 Brake liner (Ferrodo)
