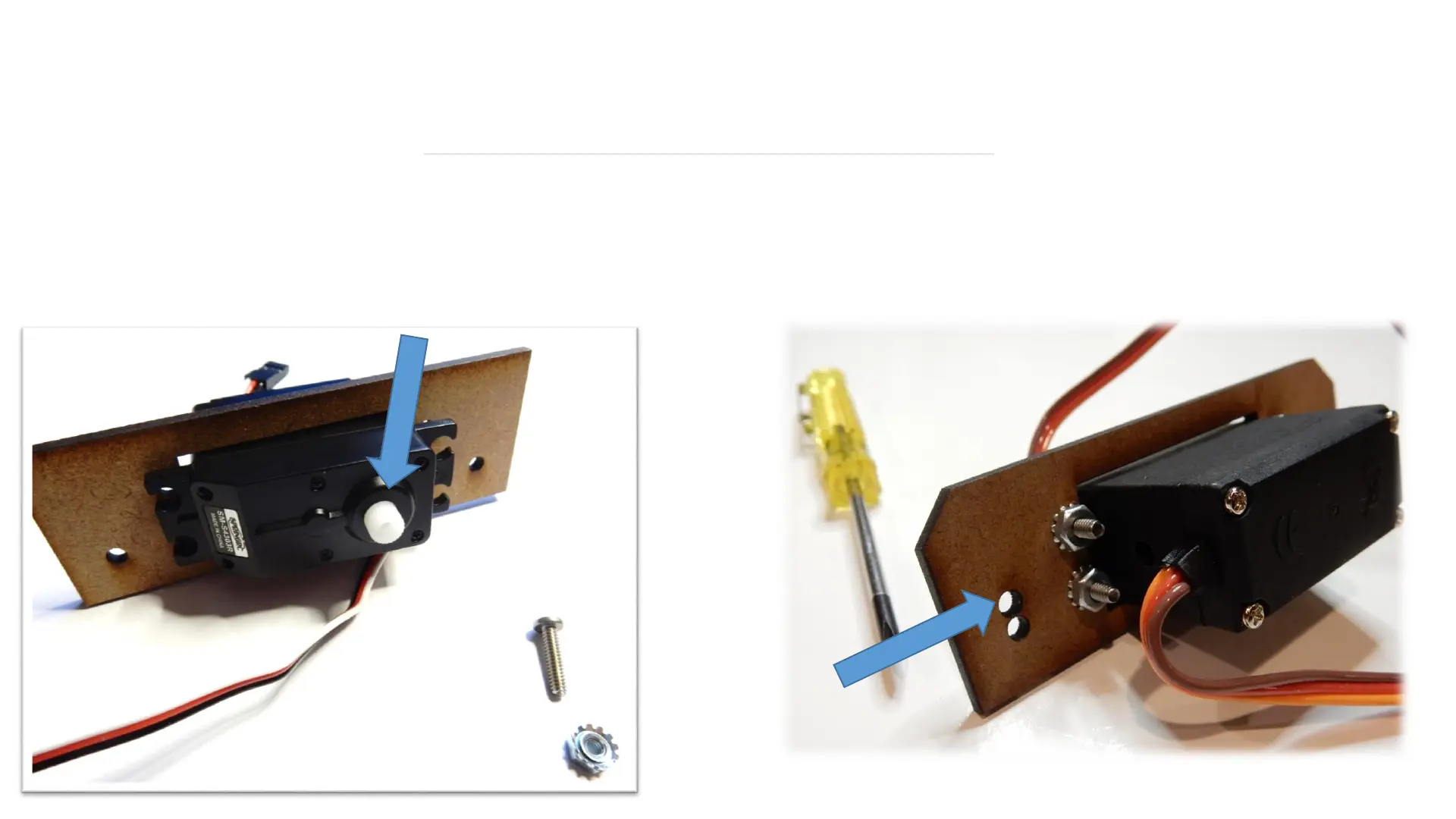

Insert the servo motors into the servo holders and secure them with the 1/2”
screws and nuts as shown on the right photo.
Please take careful note and on the next page:
- how the motors are inserted into the servo holders
- how the screws face in on the servo holders
- how the shaft of the motor is facing on the front on both left and right
sides.
12
shaft
Hole for
servo L
bracket
screw --
Use top
or bottom
