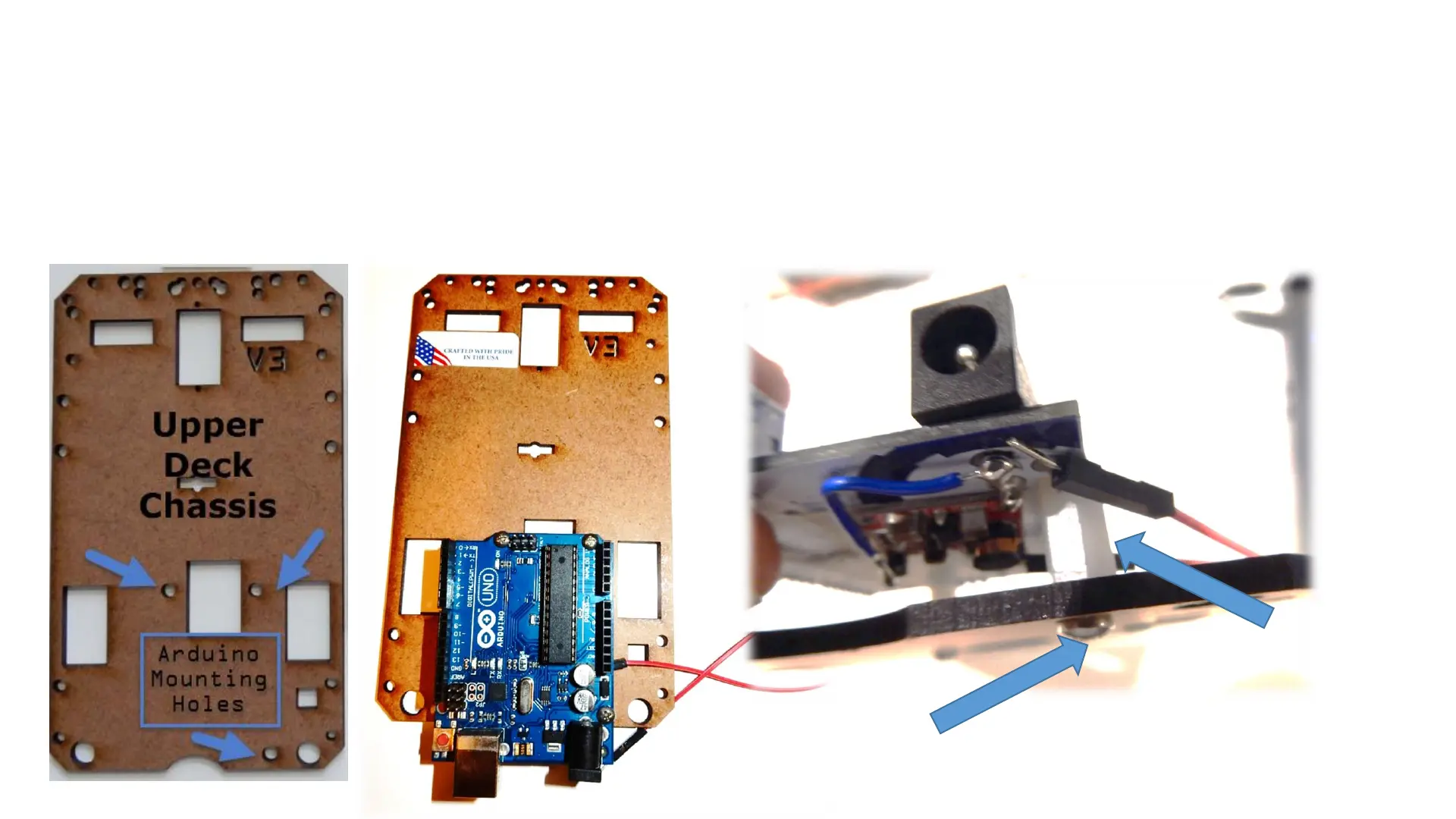

Assembling Arduino board on upper chassis
Note:
Arduino board can only go in one direction. The holes on the upper
chassis match the direction the Arduino board should go
Nylon
spacer
1/4”
screw
