Robur F1 81 - Page 16

Ed. 11/2006
User, Installation and Service Manual for F1 Gas Unit Heaters 14
F
D
E
A
Cod. P3370
A F1 Unit Heater
D Pipe Ø 80
E Pipe Ø 80
F Coaxial Pipe
TOP VIEW
flue
air
TOP VIEW

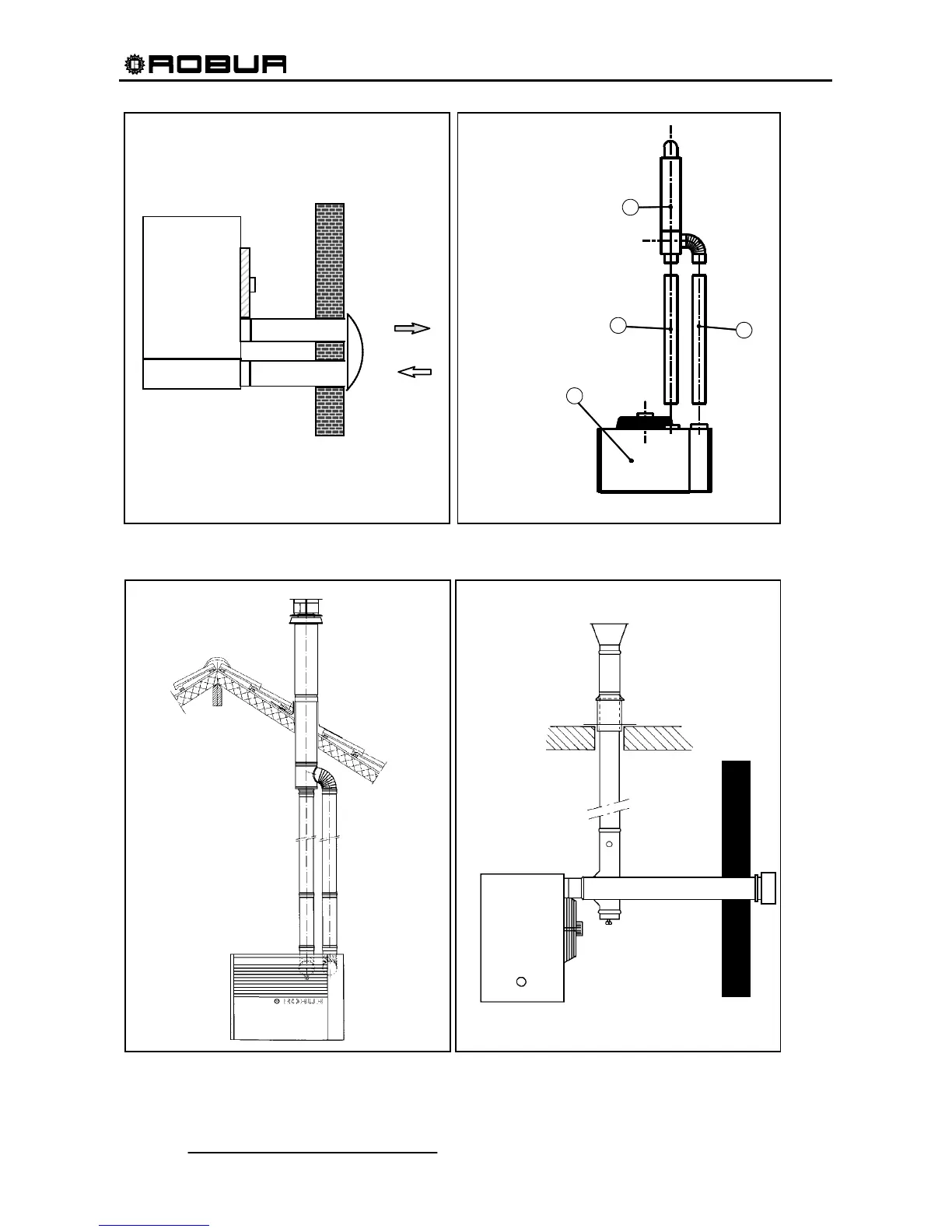

Figure 8 Figure 9
C13 INSTALLATION WITH SEPARATE WALL TERMINAL C13 INSTALLATION WITH COAXIAL WALL TERMINAL
SIDE VIEW
Figure 10 Figure 11
C33 INSTALLATION ROOF COAXIAL TERMINAL C53 INSTALLATION WITH ROOF FLUE TERMINAL AND WALL AIR SUPPLY
PIPE
