141009

WIPER MOTOR | W12

Installation Instructions

Before installation please read these instructions.

www.rocaindustry.com

■ 2 Speed, self-parking

■ Torque 12Nm

■ Wiper shaft in stainless steel

■ Adjustable sweep angle: 45 - 110°

■ Changeable self-parking, right and left position.

■ Insulated ground.

■ EMC protected

■ IP65

■ Powers up to 610mm/560mm - Arm/blade combinations

145c/c

170

100

L259

13,8

Accessories

Wiper arm - Std

Wiper arm - Adjustable tip

Wiper arm - Pantograph

Wiper blade

Wiper control

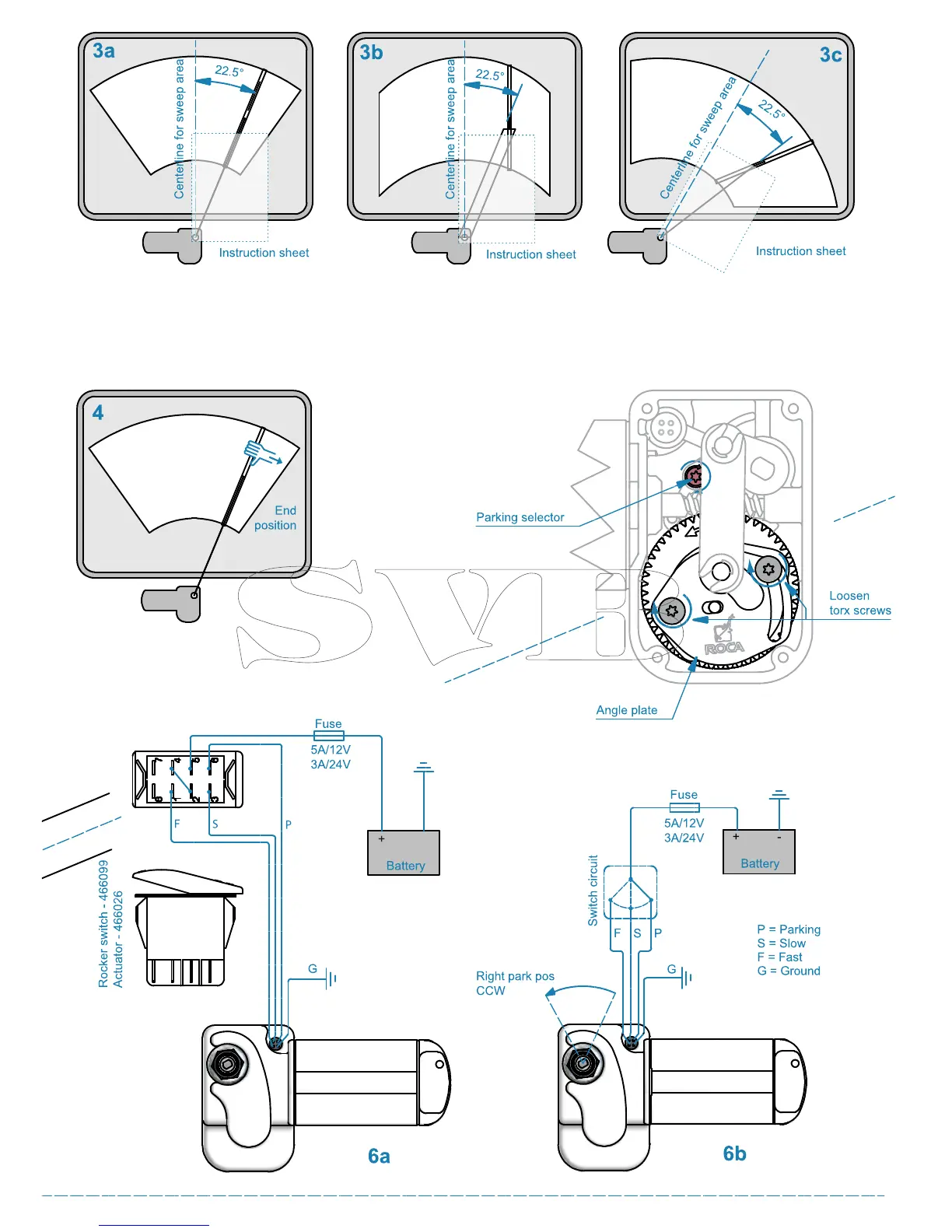

Current diagram: 12 V 24 V

No load < 2 A < 1 A

Rated < 4 A < 2 A

Stall < 9 A < 4,5 A

Fuse (Fast blow) 5 A 3 A

Speed no lo

ad (35 / 55 RPM)

Variations:

Max length: Voltage input:

L1 L2 12 V 24 V

16 43 533011 533012

42 68 533021 533022

68 94 533031 533032

Limited warranty

- Roca warrants the wiper motors to be free

from defective material and workm

anship

for a period of 3 years from the date of

purchase.

- This warranty does not apply to failure or

damage caused by improper installation,

misuse, lightning strike or damage from

a power surge.

- If failure occurs during this period, return

it to your dealer for repair or replacement.

13,8

/ z=72

Roca W12 - Page 3
