WIRING CONFIGURATIONS
By varying the wiring configuration of your speakers you can create an impedance load to match your
system. Since each voice coil of a DVC speaker carries its own impedance, altering the wiring
configurations gives a range of options for impedance loads. Series, Parallel, or Series-Parallel wiring
configurations are different techniques for wiring speakers that provide different loads. Series
configuration is a string method where speakers are wired end to end. Parallel configuration uses
two or more speakers wired across common terminals. Series-Parallel configuration combines both

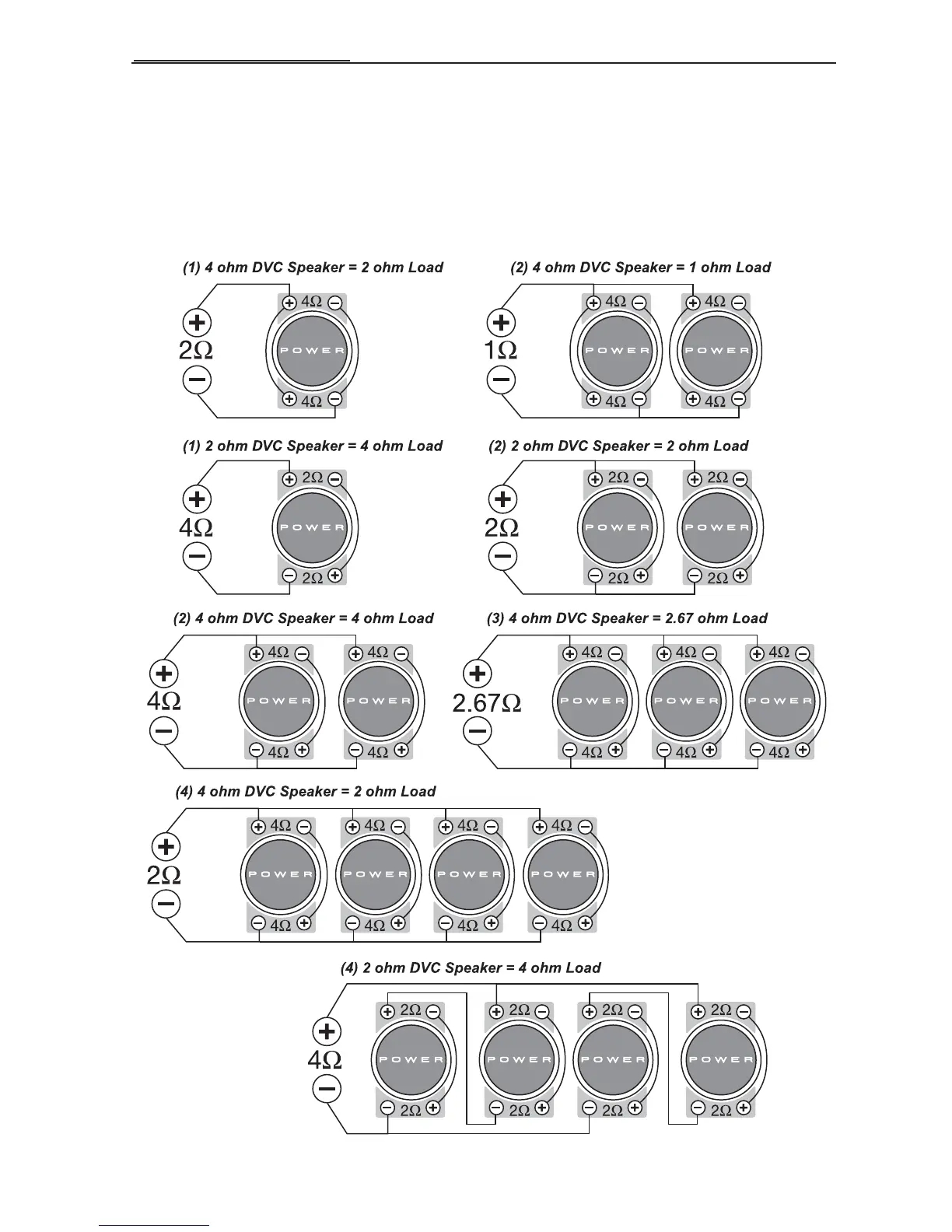

techniques. Choose the wiring diagram below that corresponds to the number of woofers and the
impedance of your amplifier.
