Rockler I-SEMBLE MURPHY - Cabinet Parts (Not Included); Cabinet Construction Warnings

6
Dimensions (T x W x L) Quantity
1 Sides 3/4" x 16" x 41
5
⁄8" 2
2 Top and Bottom 3/4" x 16" x 78
1
⁄8" 2
3 Upper Headboard 3/4" x 16" x 78
1
⁄8" 1
4 Lower Headboard 3/4" x 16" x 78
1
⁄8" 1
5 Door Panels 3/4" x 39
13
⁄16" x 77
3
⁄4" 1
6 Permanent Stop 3/4" x 3" x 52" 1
TWIN BED (Mattress Size 39" X 75" X 10")
Dimensions (T x W x L) Quantity
1 Sides 3/4" x 16" x 63
5
⁄8" 2
2 Top and Bottom 3/4" x 16" x 85
1
⁄4" 2
3 Upper Headboard 3/4" x 16" x 85
1
⁄4" 1
4 Lower Headboard 3/4" x 16" x 85
1
⁄4" 1
5 Door Panels 3/4" x 21
1
⁄8" x 61
13
⁄16" 4
6 Permanent Stop 5/8" x 3" x 56" 1
QUEEN BED (Mattress Size 60" X 80" X 10")
Dimensions (T x W x L) Quantity
1 Sides 3/4" x 16" x 57
3
⁄4" 2
2 Top and Bottom 3/4" x 16" x 80
1
⁄4" 2
3 Upper Headboard 3/4" x 16" x 80
1
⁄4" 1
4 Lower Headboard 3/4" x 16" x 80
1
⁄4" 1
5 Door Panels 3/4" x 19
7
⁄16" x 55
15
⁄16" 4
6 Permanent Stop 3/4" x 3" x 52" 1
FULL BED (Mattress Size 54" X 75" X 10")
Width Height Depth
Twin 78
1
⁄8" 40
1
⁄8" 14
1
⁄2"
Full 80
1
⁄4" 56
1
⁄8" 14
1
⁄2"
Queen 85
1
⁄4" 62
1
⁄8" 14
1
⁄2"
MINIMUM INTERIOR OPENING SIZES

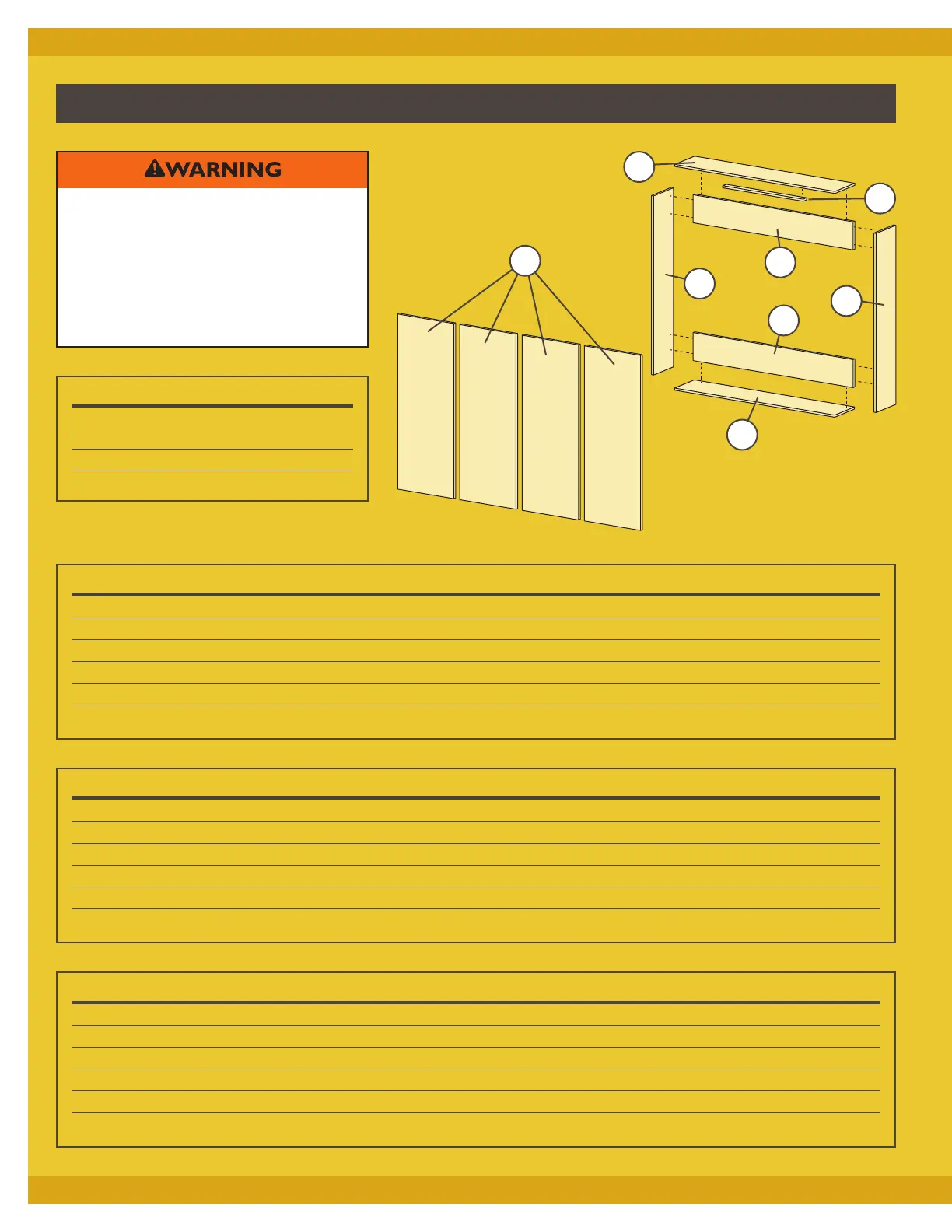

CABINET PARTS (NOT INCLUDED)
> Do NOT construct the cabinet
from MDF, particleboard or
melamine-coated MDF.
> Do NOT modify design to remove
Upper and Lower Headboards (3
and 4) These parts serve an
important safety function.
5
1
1
6
2
3
4
2
