12 PanelView Plus 700 to 1500 and PanelView Plus Compact 1000 Terminals and Display Modules
Publication 2711P-IN001I-EN-P - November 2009

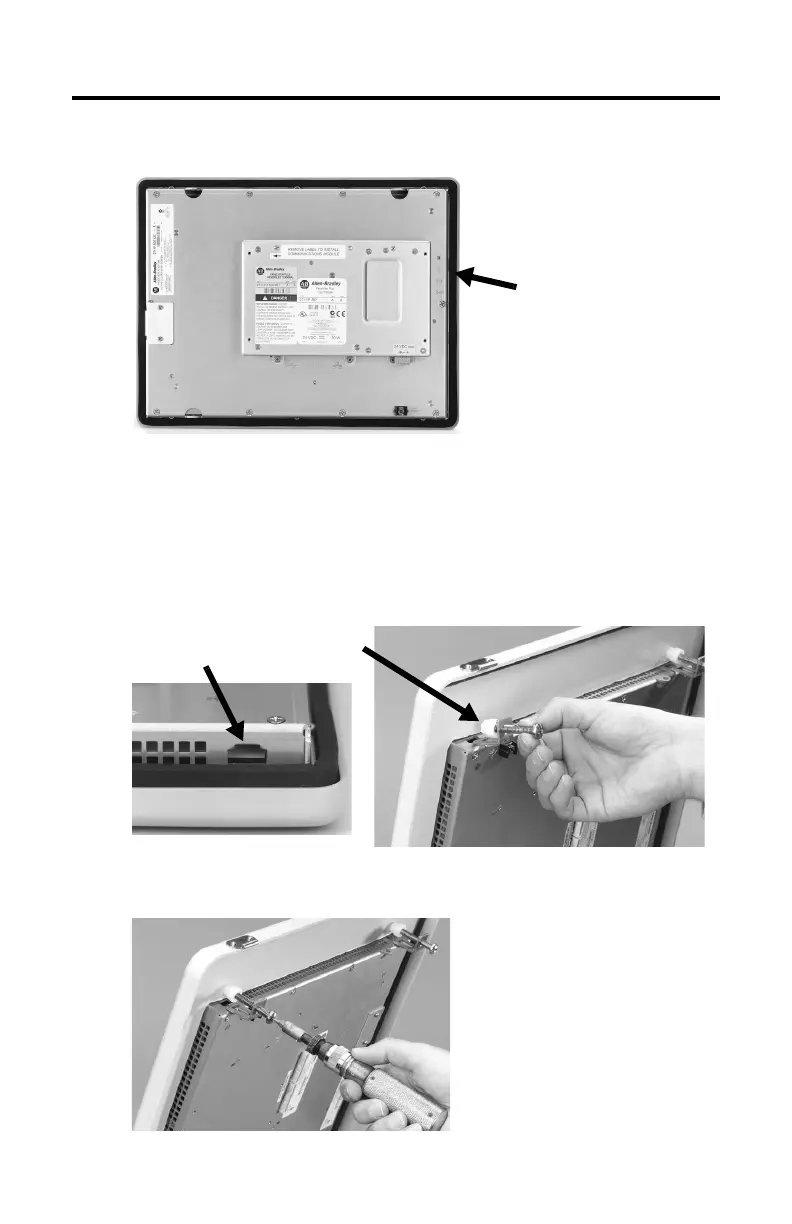

This gasket forms a compression type seal. Do not use sealing compounds.
3. Install the legend strips before installing the terminal if you are using keypad legend
strips on keypad terminals.
Be careful not to pinch the legend strip during installation.
4. Place the terminal in the panel cutout.
5. Slide the ends of the mounting clips into the slots on the terminal.
6. Tighten the mounting clip screws by hand until the gasket seal contacts the mounting
surface uniformly.
Sealing Gasket
Mounting Clip Slot
Mounting Clip
To Next Page
