Chapter 3 Install the Thin Client or Computer

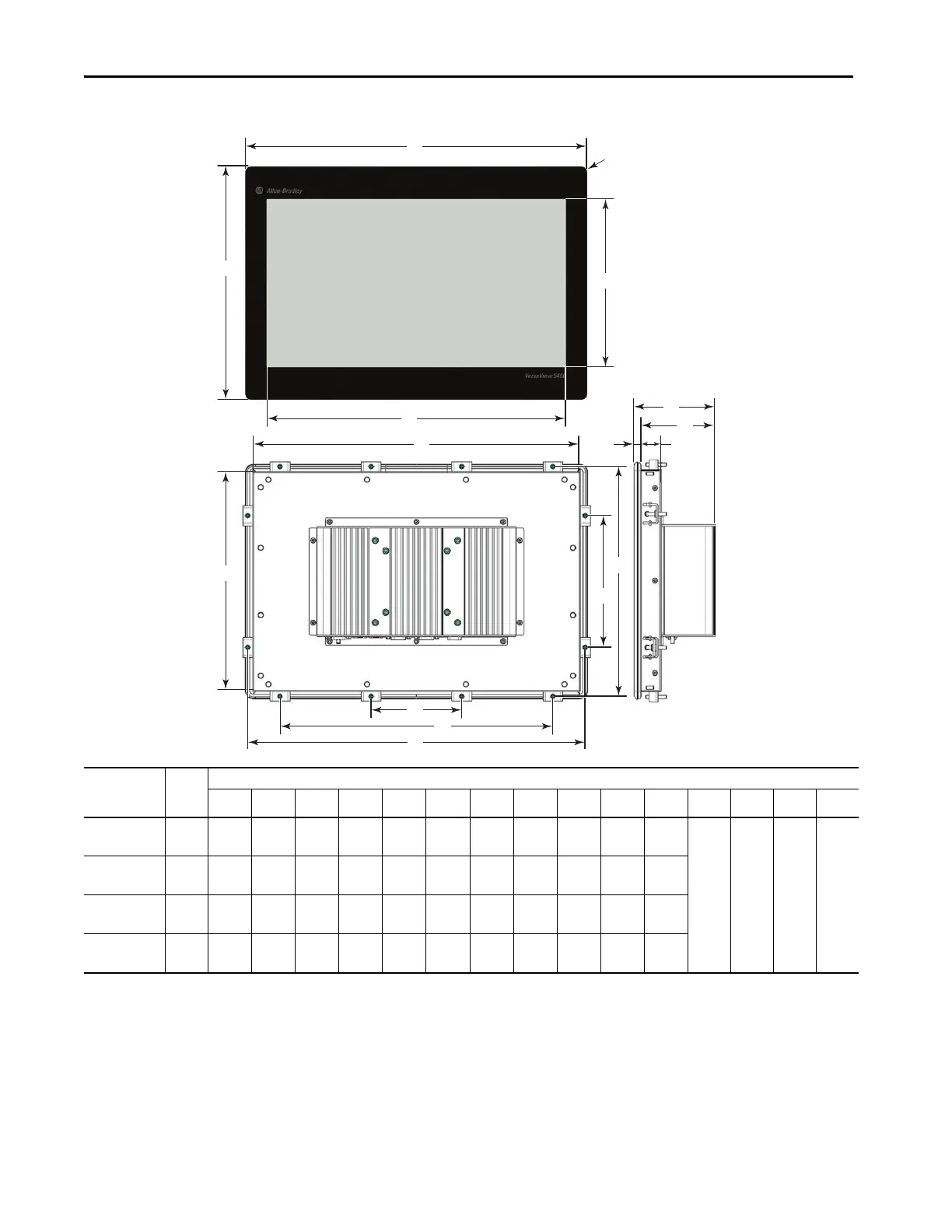

Figure 9 - Dimensions for Integrated Display Models
B
A
C
D
E
F
G
H
I
J
K
M
N
L
O
Radius 10
(0.4 in.)
Cat. Nos.
Display
Size
(in.)
Dimensions, mm (in.)
ABCDEFGHI JKL
(1)
M
(2)
NO
6200P-12WS3x1,
6200T-12WA
12.1 266
(10.47)
328
(12.91)
163.2
(6.43)
261
(10.28)
248
(9.76)
310
(12.2)
260
(10.24)
125
(4.92)
200
(7.87)
— 322.5
(12.7)
7.6
(0.3)
97.1
(3.82)
89.5
(3.52)
24.5
(0.97)
6200P-15WS3x1,
6200T-15WA
15.6 298
(11.73)
414
(16.3)
193.5
(7.61)
344.2
(13.55)
280
(11)
396
(15.6)
292
(11.5)
160
(6.3)
110
(4.33)
330
(13)
408
(16)
6200P-19WS3x1,
6200T-19WA
18.5 337
(13.27)
480
(18.9)
230
(9.07)
410
(16.13)
319
(12.56)
462
(18.19)
331
(13.03)
250
(9.84)
130
(5.12)
390
(15.35)
474
(18.66)
6200P-22WS3x1,
6200T-22WA
21.5 373
(14.68)
545
(21.46)
268
(10.55)
476.6
(18.76)
355
(14)
527
(20.75)
367
(14.45)
250
(9.84)
150
(5.91)
450
(17.71)
539
(21.22)
(1) Metric dimension is ±0.5, and the English dimension is ±0.02.
(2) Metric dimension is ±1.0, and the English dimension is ±0.04.
