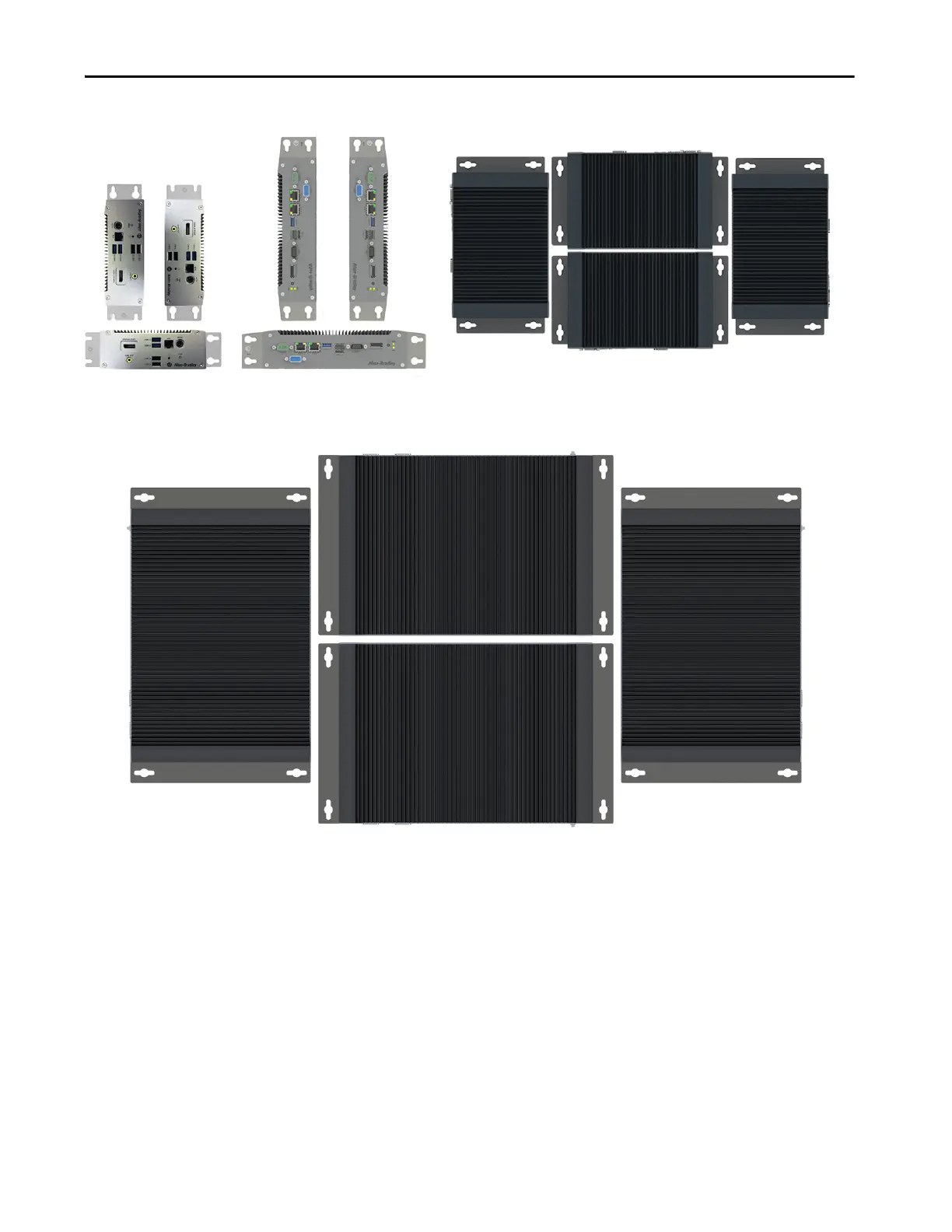

Figure 11 - Acceptable Mounting Positions for Non-display VersaView Thin Clients and Industrial Computer Models
For cat. nos. 6200T-KB, 6200T-NA, and
6200P-NS3xx with factory-installed
mounting bracket
For cat. no. 6200T-BA with
factory-installed mounting
bracket
6200V-BXMACH machine mounting for cat. nos. 6200T-KB, 6200T-NA, and 6200P-NS3x1
I/O Ports
I/O Ports
I/O
Ports
I/O
Ports
6200V-BXMACH2 machine mounting for cat. nos. 6200T-RC and 6200T-RE
I/O Ports
I/O Ports
I/O Ports I/O Ports
