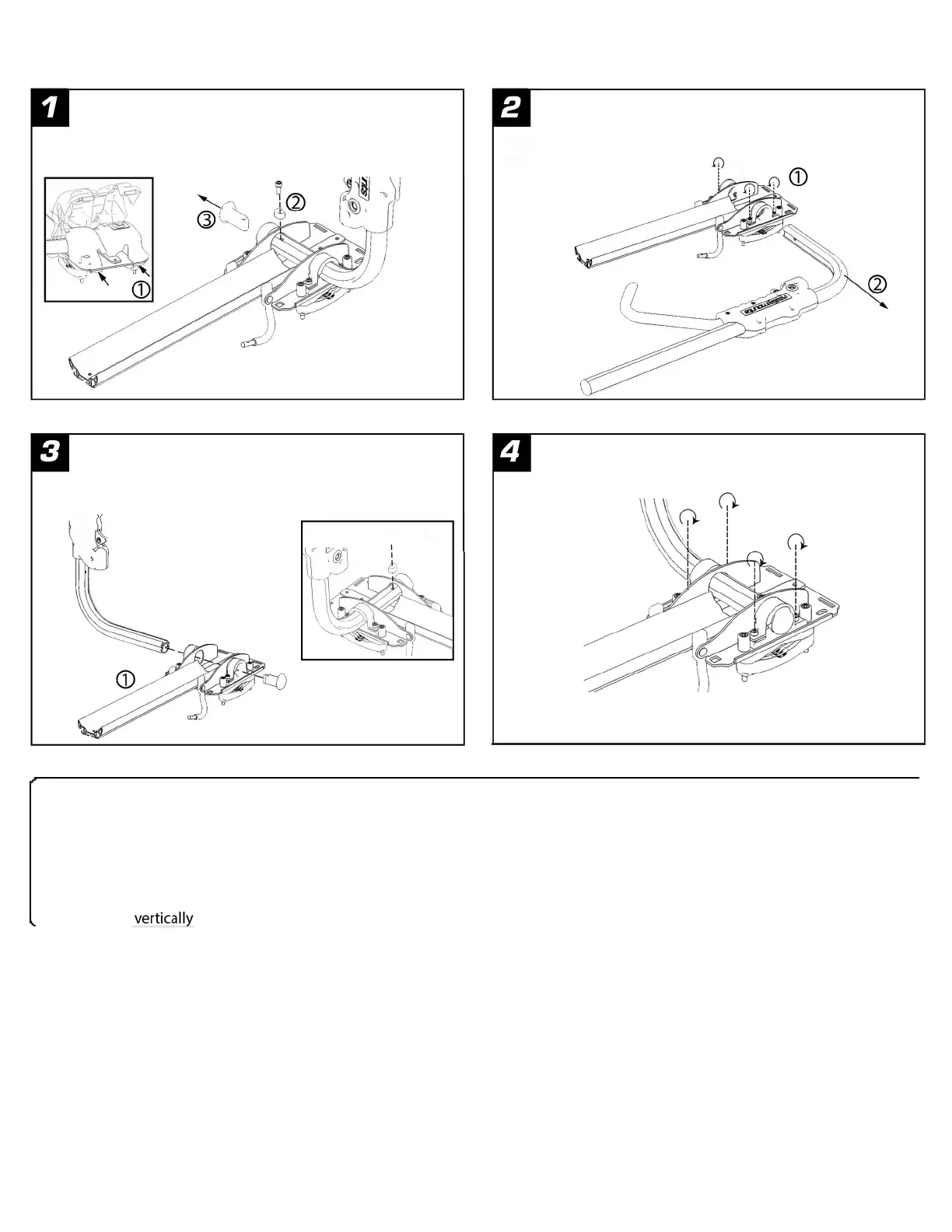

rockymounts TomaHawk - Passenger Side Installation Instructions; Remove End Cap; Remove Load Arm; Flip Load Arm


Remoe End Cap
Remove cover on load arm assembly. Remove M6x1 5
bolt and plastic stopper. Remove end cap on load arm
    
   

 

 
Flip Load Arm
Flip load arm and reinstall from the other direction.
Install M8x1 5 bolt with plastic stopper


�
v@
 
)

Remoe Load Arm
Loosen four M6 bolts on bearings and slide load arm
out


Mounting
Tighten four M6 bolts
\ ?
Follow Step 1 to Step 5 on Page 1 to mount rack onto
vehicle
  

 
  
 
 
 

