ROE CB5 User Manual

600.0mm
1200.0mm
77.0mm

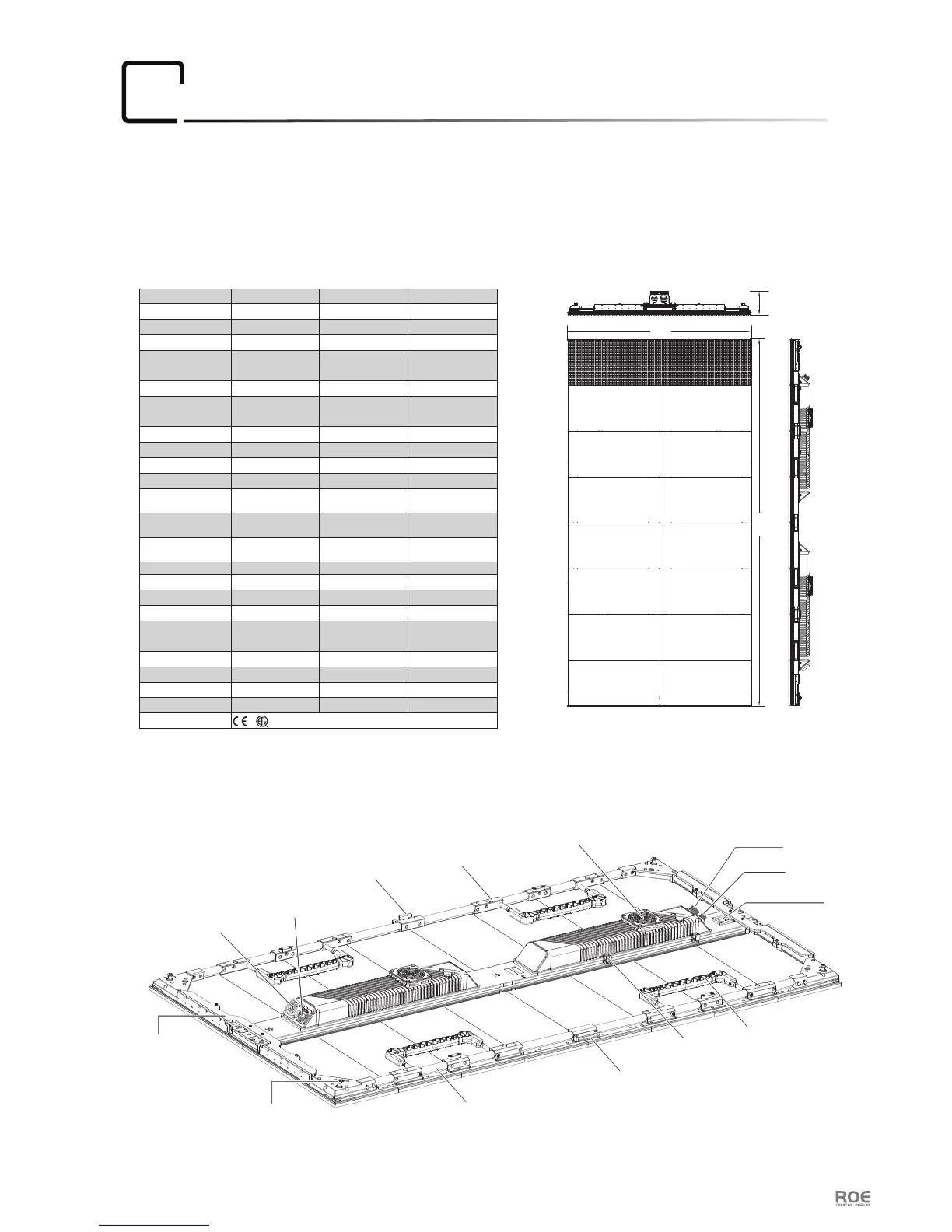

Carbon-5 Dimensions:
Carbon Specication:
Diagram:
Specification:
02
User Manual P6
Carbon panels are our rst line incorporating lightweight carbon ber technology. More and more uses are being
found for versatile, ultra-lightweight panels from the stage to the corporate event, and Carbon panels strike the
perfect balance of stability and weight. All this whilst preserving the easy setup and maintenance of all ROE
product to save on time and labor costs.
Power Out
Data Out
Carry Handle
Carbon Fibre Tube
Fixed Block
Clip
Side Lock
Fixed Block
Cooling Fan
Dowel Pin
Magnet
Data In
Power In
Testing Button
Pixel Pitch
LED Conguration
Viewing Angle(Hor/Vert)
Max. Brightness
Transparency
Pixel Density
Pixel / Tile
Refresh Rate
Gray Scale
Scan
Frame Material
Tile Weight/Tile
Tile Dimension(W×H×D)
Carbon
Carbon Fiber + Magnesium
Alloy
5.77mm
HB Black SMD 3-in-1
White SMD 3-in-1
140°/110°
4,500nits(Multicolor 2727)
6,000nits(NationStar 1921)
Solid
30,044/sqm
104×208
3,840Hz
16bit
13.9kg
1/4
600mm×1,200mm×77mm
23.6”×47.2”×3.0”
CB5CB3
Curve(optional)
Concave Max. 15°
Convex Max. 10°
600mm×1,200mm×72mm
23.6”×47.2”×2.8”
Carbon Fiber + Magnesium
Alloy
8.33mm
White SMD 3-in-1
140°/110°
5,000nits(NationStar 2727)
Solid
14,400/sqm
72×144
2,880Hz
16bit
12.7kg
Concave Max. 15°
Convex Max. 10°
1/6
CB8
Carbon Fiber + Magnesium
Alloy
3.75mm
Black SMD 3-in-1
140°/140°
1,500nits(NationStar 2121)
Solid
71,111/sqm
160×320
1,920Hz
16bit
13.2kg
1/16
600mm×1,200mm×77mm
23.6”×47.2”×3.0”
Concave Max. 15°
Convex Max. 10°
IP Rating(Front/Rear)
Max Power/Tile
Lifetime
Operating Temp/Humidity
Processor Brompton Brompton Brompton
Storage Temp/Humidity
Max. Hanging*
IP65
650W
500W
≥50,000h
-20°C to 45°C, 10~90%RH
-40°C to 60°C, 10~90%RH
12 tiles
Max. Stacking 4 tiles
IP65
320W
≥50,000h
-20°C to 45°C, 10~90%RH
-40°C to 60°C, 10~90%RH
12 tiles
4 tiles
IP43
540W
≥50,000h
-20°C to 45°C, 10~90%RH
-40°C to 60°C, 10~90%RH
12 tiles
4 tiles
Certications
*Notes: The single hanging bar is able to support up to 12 tiles when the safety factor is 5.

ROE CB5 Specifications

General

Brand	ROE
Model	CB5
Category	Monitor
Language	English
