906-0002-00 Rev 9 EN 2002 Rofin-Sinar UK Ltd General Description 2 - 5

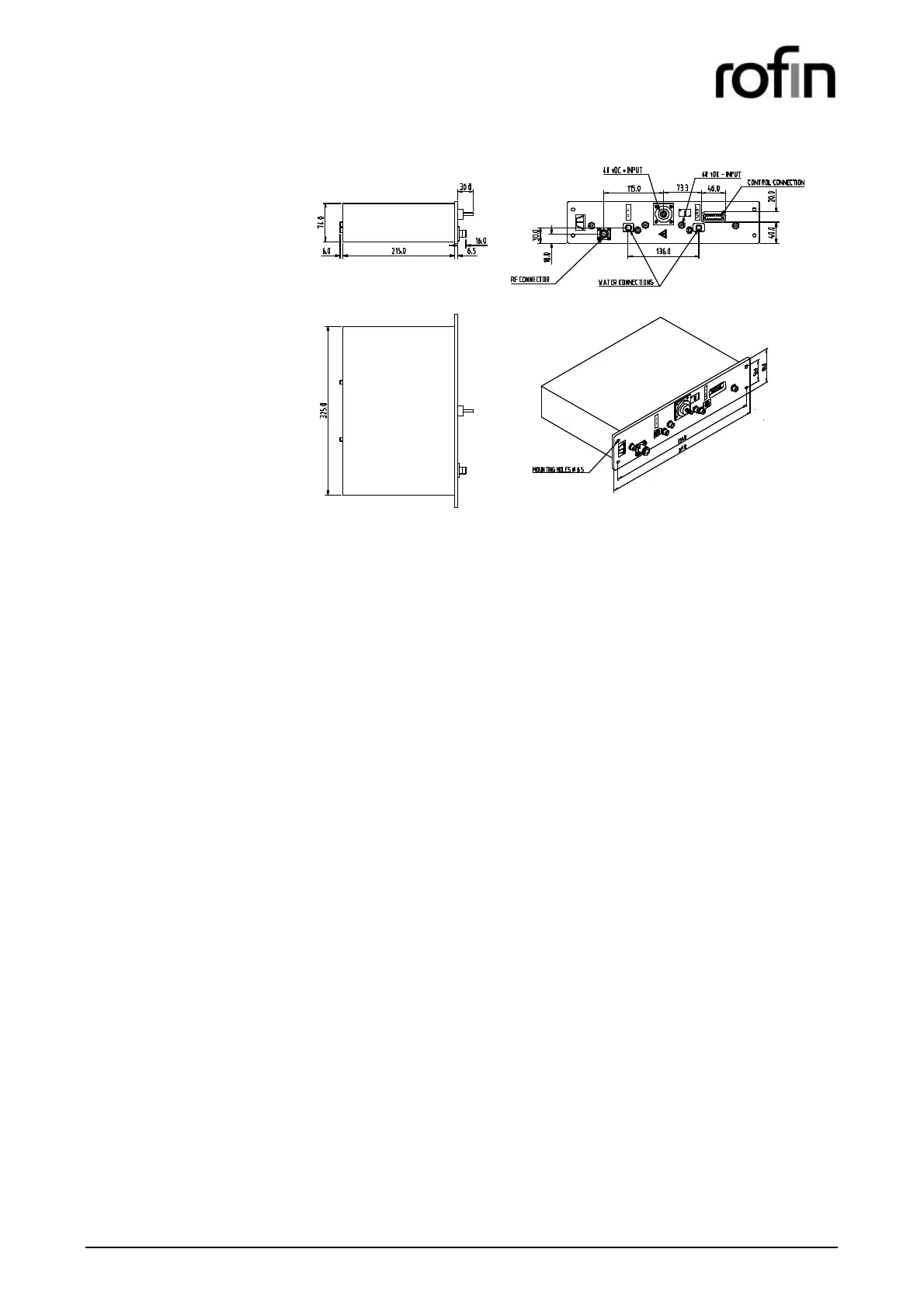

Figure 2.2-2 External Dimensions for the RF Power Supply
(note: all dimensions in millimetres)
d) RF Cable (connects between the Laser Head Module and RF Power
Supply)
Cable Type: T-COM 600
Cross Sectional Diameter: 15mm
Static Minimum Bend Radius: 152mm – for a static cable
Dynamic Minimum Bend Radius: 400mm – for a moving cable
RF connector torque setting: 4Nm (2.95 ft-lb)
Standard Length: depends on customer order. In
general, specific lengths are available
from approximately 1 to 10m.
For more information on RF cable properties and lengths refer to the
relevant sales data sheet which is available from your local
ROFIN/Distributor sales office.
e) DC Power Supply
Output Voltage: 48V dc ± 1%
Output Current (max): 40A
Input Voltage: 200 - 240 V ac ± 10%
single or bi-phase
(must be connected to ground (earth))
Average Input Current (max):< 10A RMS
Peak Input Current (max): 16A
