Roger Technology B70-2DCHP - Additional Connections; Gate Release Devices and Loop Detector

Roger Technology Swing Gate Brushless B70-2DCHP Control Panel
Quick Start Guide Extended Mode
6

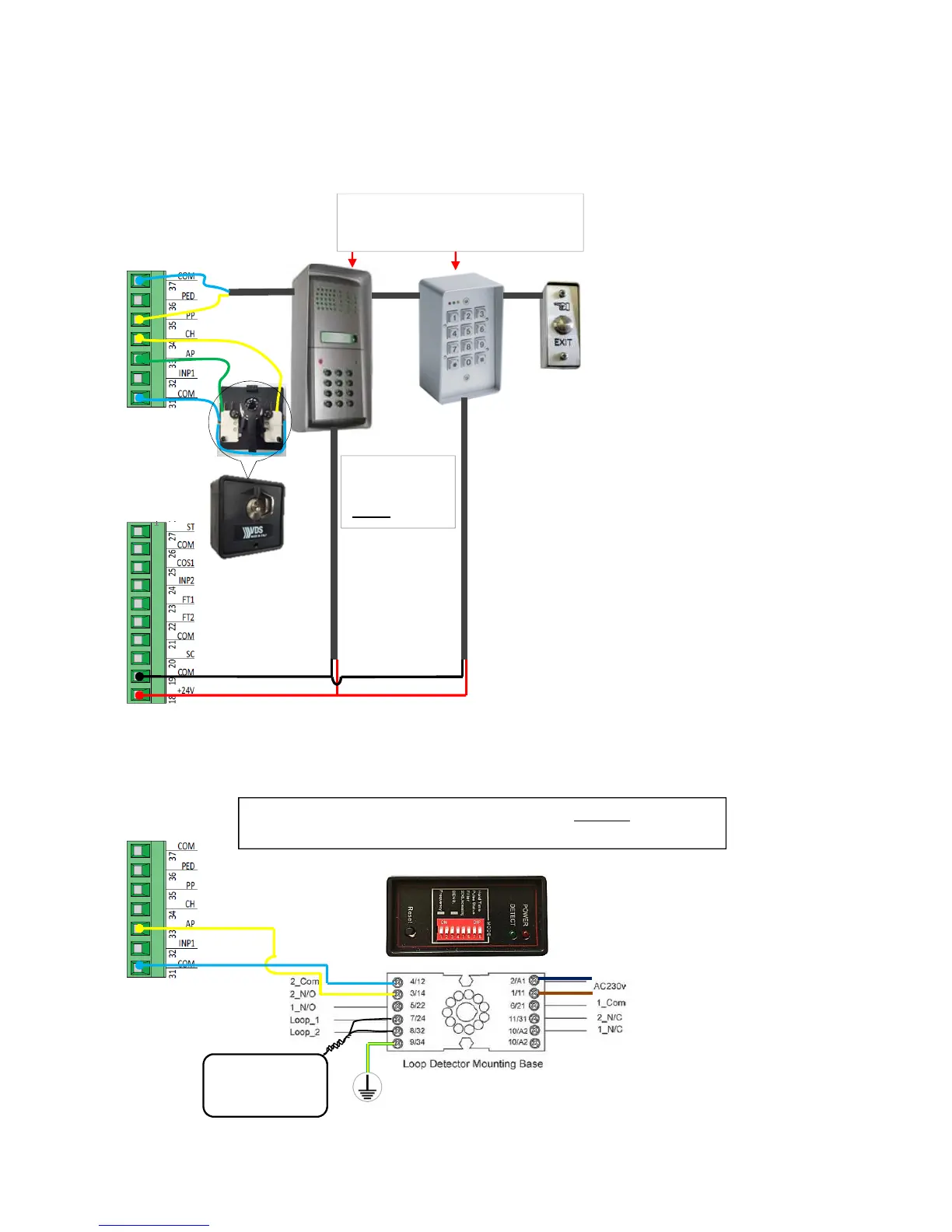

Connecting gate release devices
Volt free release connections only. (The
communication part of the intercom must use its own
power supply)
Check that
powered your
devices will accept
24VDC.
Connection of the inductive loop detector PD132
230VAC
for use as an
exit device.
(All dips off)
Road Loop
