STORE A CODE
Push the button P1 to enable the channel one or button P2 •
to enable the channel two (the instructions are the same for
both channels).
When the button is released the relative LED will blink slowly •
4 times, during this time press the button of the remote con-
trol that you want to store.
A long LED activation (1”) indicates that the storage has been •
successful, while some fast blinks indicate that the code of
the remote control has already been stored in a channel. It is
not possible to store the same remote control button on
both radio receiver channels.
The LED will emit another 4 slow blinks while waiting for oth-•
er storage procedures. If you press the other receiver button
during this time, the receiver starts to store in the other chan-
nel; otherwise if no other codes are transmitted, the receiver
exits from the storage phase.
CODE RECEPTION
If it receive a code not stored, both LEDs turn on for a short
time, if the transmission continues, the LEDs blinks with an
interval of 1”.
Instead if the code is memorized on channel 1, the LED 1
turns on and the output 1 is activated (same for channel 2).
DELETE SINGLE CODE
Press the receiver button of the channel in which the remote •
control code is stored, hold it for 4”: the LED starts to blink
quickly.
Release the receiver button: the LED continues to blink •
quickly (max. 4”).
Press the remote control button to delete: if this code is not •
stored there will be an error report (faster blinks), otherwise
the LED turn on for 1” to report the successful cancellation.
To delete another code repeat the procedure from the begin-
ning.
NOTE: if you are in storing mode it’s possible to switch to de-
lete mode without waiting the end of the blinks, just press the
receiver button and hold it 4”.
DELETE ALL CODES
Press the receiver buttons P1 and P2 simultaneously for 4”:
5 fast blinks of the two LEDs indicates total erasure of stored
codes.
NOTE: it is possible to do this anytime, no needed to do this
during power on.
NOTE: it’s recommended to delete all codes at the rst instal-
lation before starting storing codes.
MEMORY FULL
When you try to memorize a code, if the two LEDs blink quickly
for 4”, it means that the code can not be memorized because
the memory is full.
MEMORY FAILURE
If the two LEDs blink quickly and never stop, it means that the
memory fails and the receiver cannot work.
CODE MANAGEMENT MODE
Insert the jumper “MODE” (where available) to enable the
code management mode, the two LEDs start to blink quickly
and alternately. Remove the jumper to exit from the code man-
agement mode, both LEDs turn on for 1,5” and then turn off,
that indicates the reboot of receiving mode.

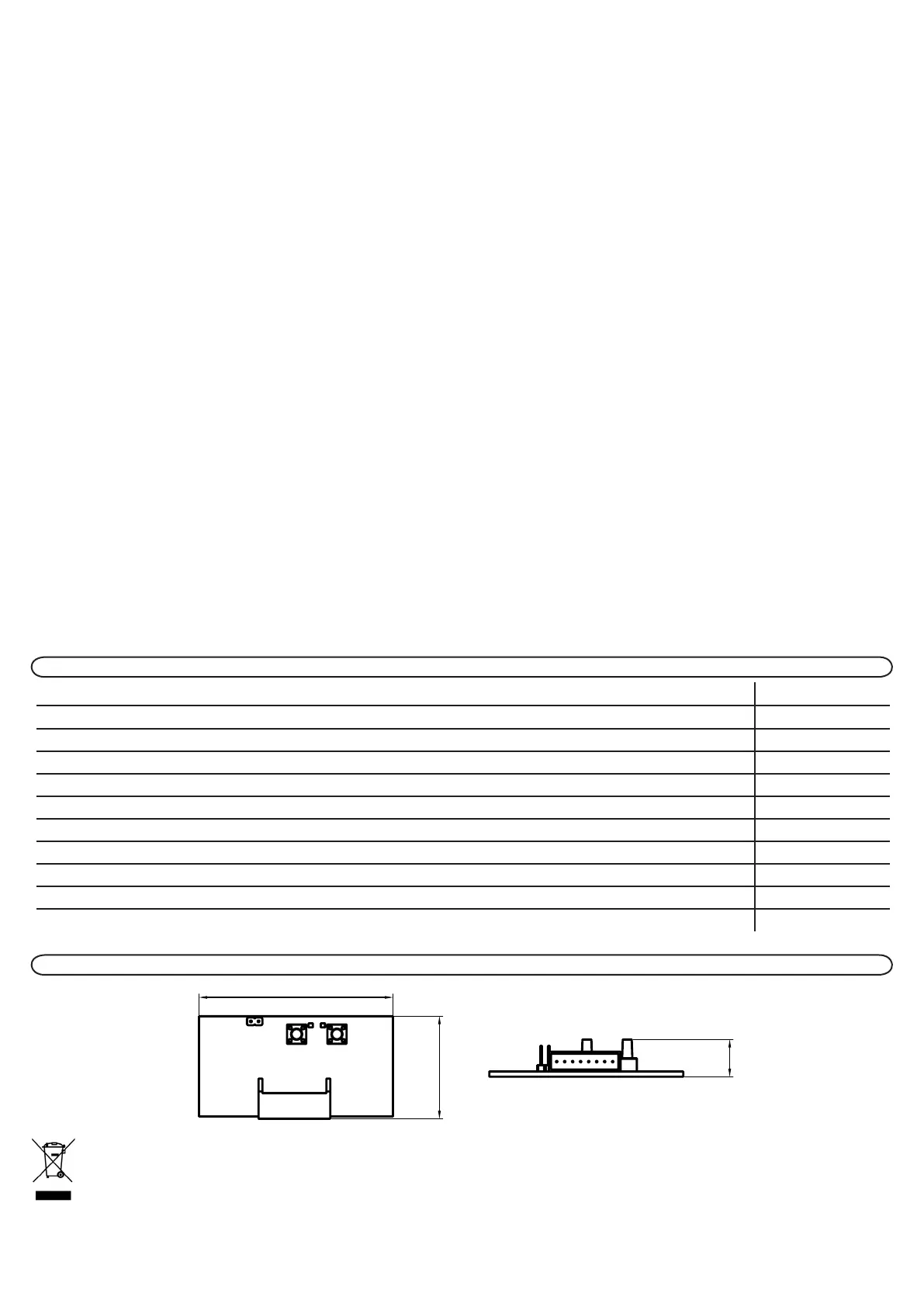

CARATTERISTICHE TECNICHE • SPECIFICATIONS
H93/RX22A/I
NUNERO TELECOMANDI MEMORIZZABILI • NUMBER OF TRANSMITTERS 500
FREQUENZA DI TRASMISSIONE • TRANSMISSION FREQUENCY 433.92 MHz
MODULAZIONE • MODULATION AM/ASK
SENSIBILITA’ • SENSIBILITY -107 dBm
IMPEDENZA D’INGRESSO • INPUT IMPEDANCE 50 Ω
ALIMENTAZIONE • POWER SUPPLY 5Vdc
CONSUMO MEDIO • AVERAGE ABSORPTION 15mA
NUMERO CANALI • NUMBER OF CHANNELS 2
TIPO DI USCITA • OUTPUT TYPE open collector
TEMPERATURA DI FUNZIONAMENTO • WORKING TEMPERATURE -10+55 °C
DIMENSIONI • SIZE
Nell’Unione Europea questo simbolo indica che questo prodotto non deve essere smaltito insieme ai riuti domestici. Deve essere depositato in un impi-
anto adeguato che sia in grado di eseguire operazioni di recupero e riciclaggio. Riferirsi alle normative vigenti nel proprio Paese per ulteriori informazioni.
In the European Union this symbol indicates that this product sould not be disposed of with household waste. It should be deposited at an appropriate
facility to enable recovery and recycling. Refer to your country regulations for more informations.
ROGER TECHNOLOGY
Via S. Botticelli 8 • 31021 Bonisiolo di Mogliano Veneto (Tv) • Italy
Tel. +39 041.5937023 • Fax. +39 041.5937024
info@rogertechnology.com • www.rogertechnology.com
32
60.6
11.6
