Connection Examples
Using Two DS-30A Monitors for Stereo Sound

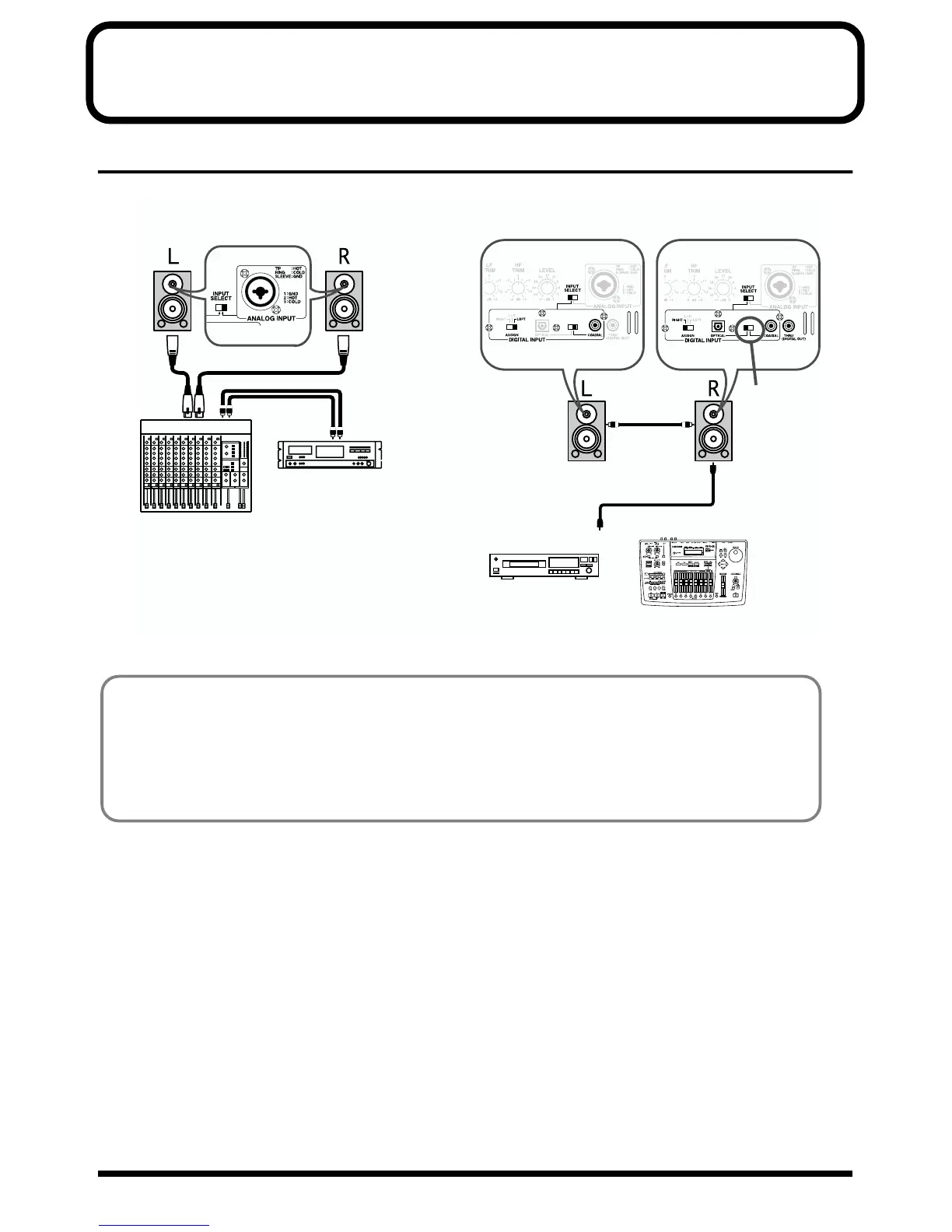

fig.
Mixer,etc.
Example for
Using Analog Input Connectors
Example for
Using Digital Input Connectors
CD Player, MD Player,etc.
BR-8/532/1180, etc
Recording Equipment,etc.
Select
DIGITAL OUT
DIGITAL IN
(COAXIAL)
(OPTICAL)
THRU
(DIGITAL OUT)
DIGITAL IN
(COAXIAL)
Tips about high sound quality playback
• Please pay careful attention to the placement location. In order to take full advantage of the low-frequency
playback capabilities of this device, we recommend that you place it on a hard and strong base.
• When using digital in connections, turn down the LEVEL knob of this device and raise the output level of the
connected device. This will take advantage of the full number of bits in the digital signal, improving the audio
quality.
