8

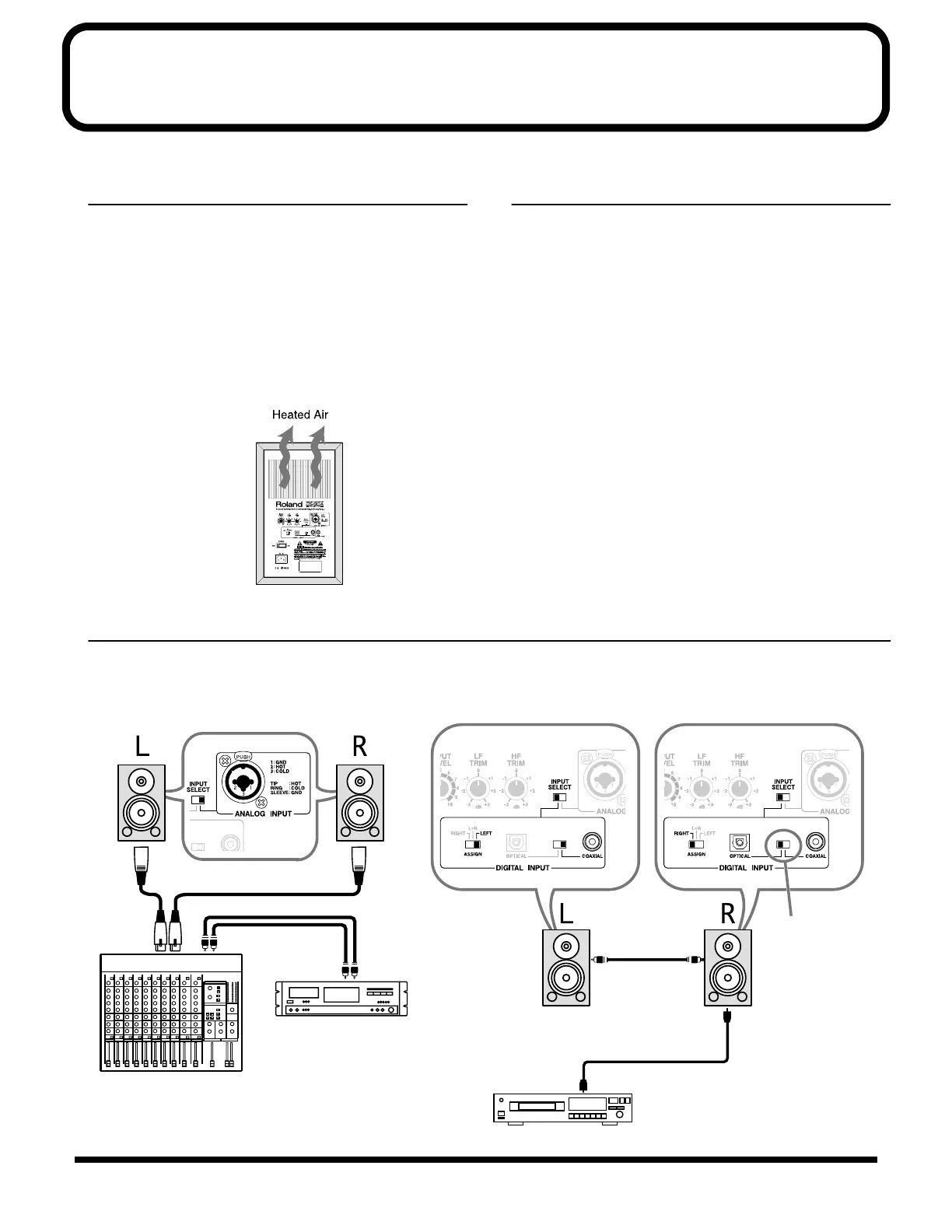

Connection Examples
Important Notes on
Placement
●
During setup and transport, be careful not to damage the
vibrating portions (the speaker cone and diaphragm).
●
Be sure to place the monitor so that the heat sink on the
rear panel is not obstructed. Also, make sure the monitor
does not touch any curtains or other fabrics.
●
The heat sink performs cooling when the monitor is
placed as shown below. Do not place the monitor on its
side or upside down.
Precautions When Connecting
and Turning on the Power
●
To prevent malfunction and/or damage to speakers or
other devices, always turn down the volume, and turn off
the power on all devices before making any connections.
●
Once the connections have been completed, turn on
power to your various devices in the order specified. By
turning on devices in the wrong order, you risk causing
malfunction and/or damage to speakers and other
devices.
(When turning the power off, reverse this
procedure.)
Connected devices
➔
DS-90A
●
This unit is equipped with a protection circuit. A brief
interval (a few seconds) after power up is required before
the unit will operate normally.
Using Two DS-90A Monitors for Stereo Sound
Mixer,etc.
CD Player, MD Player,etc.
Recording Equipment,etc.
DIGITAL OUT
DIGITAL IN
(COAXIAL)
(OPTICAL)
THRU
(DIGITAL OUT)
DIGITAL IN
(COAXIAL)
Select
Example for
Using Analog Input Connectors
Example for
Using Digital Input Connectors
* Please also refer to “Placement” in IMPORTANT NOTES (P. 5).
To Next Page
