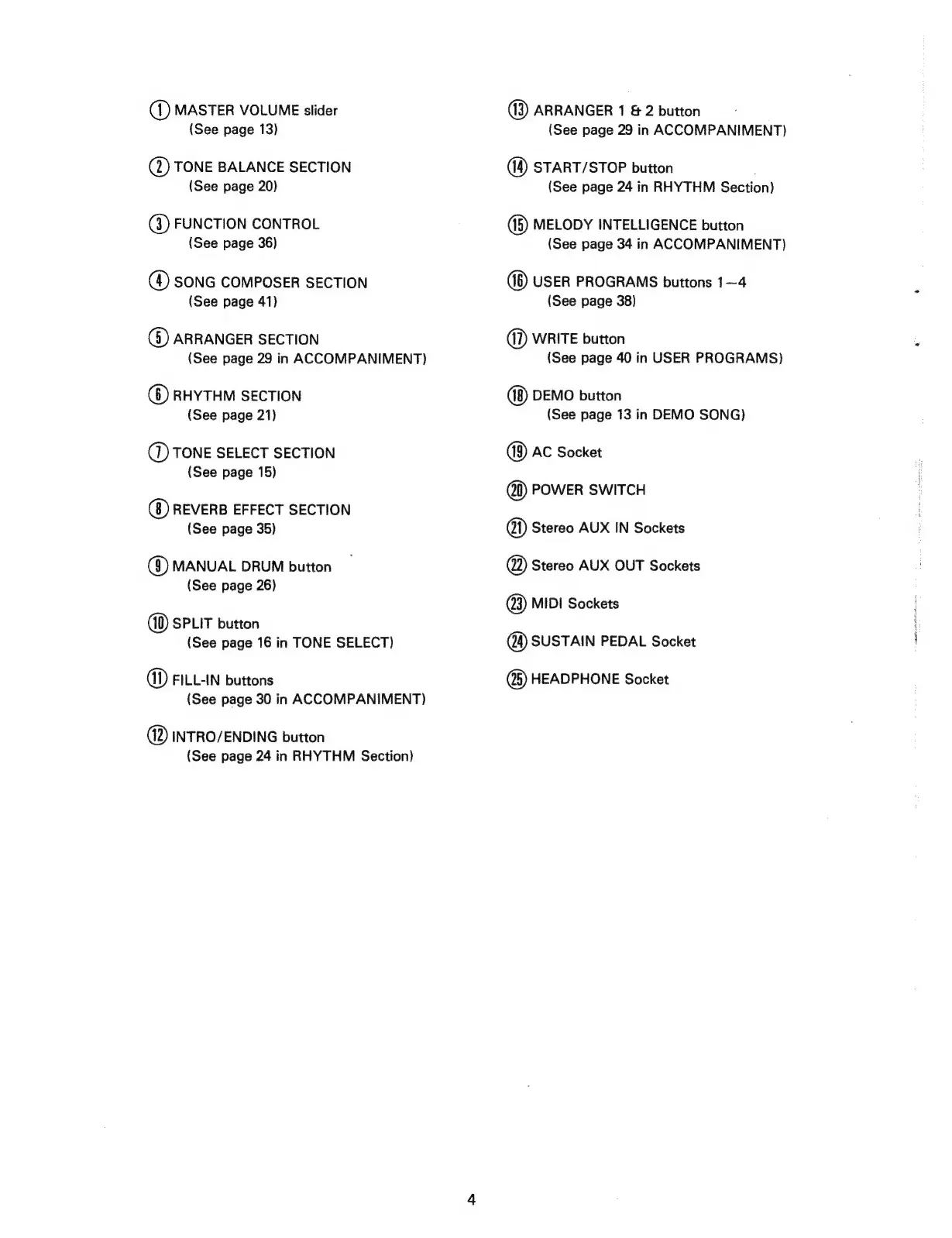

(1) MASTER VOLUME slider
(See page 13)
(2) TONE BALANCE SECTION
(See page 20)
(@) FUNCTION CONTROL
(See page 36)
@®) SONG COMPOSER SECTION
(See page 41)
() ARRANGER SECTION
(See page 29 in ACCOMPANIMENT)
() RHYTHM SECTION
(See page 21)
(TONE SELECT SECTION
(See page 15)
REVERB EFFECT SECTION
(See page 35)
@) MANUAL DRUM button
(See page 26)
SPLIT button
(See page 16 in TONE SELECT)
i) FILL-IN buttons
(See page 30 in ACCOMPANIMENT)
(2) INTRO/ENDING button
(See page 24 in RHYTHM Section)
(3) ARRANGER 1 & 2 button
(See page 29 in ACCOMPANIMENT)
START/STOP button .
(See page 24 in RHYTHM Section)
) MELODY INTELLIGENCE button
(See page 34 in ACCOMPANIMENT}
USER PROGRAMS buttons 1—4
(See page 38)
@) WRITE button
(See page 40 in USER PROGRAMS)
DEMO button
(See page 13 in DEMO SONG)
AC Socket
POWER SWITCH
@) Stereo AUX IN Sockets
@) Stereo AUX OUT Sockets
@) MIDI Sockets
SUSTAIN PEDAL Socket
(@) HEADPHONE Socket
