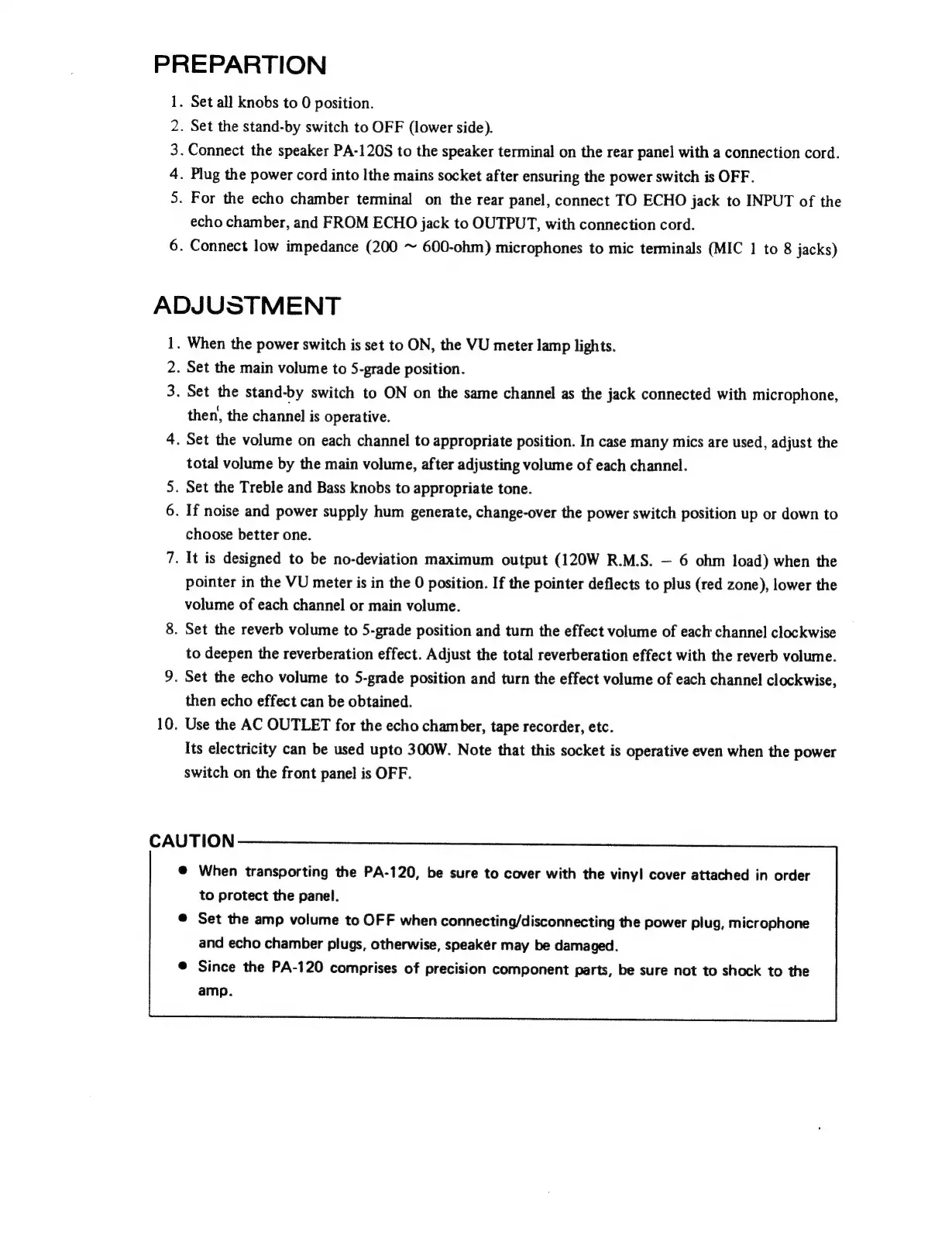

PREPARTION
. Set all knobs to 0 position.
. Set the stand-by switch to OFF (lower side).
.
Connect
the
speaker
PA-120S
to
the
speaker
terminal
on
the
rear
panel
with
a
connection
cord.
. Plug the power cord into Ithe mains socket after ensuring the power switch is OFF.
.
For
the
echo
chamber
terminal
on
the
rear
panel,
connect
TO
ECHO
jack
to
INPUT
of
the
echo
chamber,
and
FROM
ECHO
jack
to
OUTPUT,
with
connection
cord.
6.
Connect
low
impedance
(200
~
600-ohm)
microphones
to
mic
terminals
(MIC
1
to
8
jacks)
mM kWh =
ADJUSTMENT
1. When the power switch is set to ON, the VU meter lamp lights.
2. Set the main volume to 5-grade position.
3.
Set
the
stand-by
switch
to
ON
on
the
same
channel
as
the
jack
connected
with
microphone,
then,
the
channel
is
operative.
4.
Set
the
volume
on
each
channel
to
appropriate
position.
In
case
many
mics
are
used,
adjust
the
total
volume
by the
main
volume,
after
adjusting
volume of
each
channel.
5. Set the Treble and Bass knobs to appropriate tone.
6.
If
noise
and
power
supply
hum
generate,
change-over
the
power
switch
position
up
or
down
to
choose
better
one.
7.
It
is
designed
to
be
no-deviation
maximum
output
(120W
R.M.S.
—
6
ohm
load)
when
the
pointer
in
the
VU
meter
is
in
the
0
position.
If
the
pointer
deflects
to
plus
(red
zone),
lower
the
volume
of
each
channel
or
main
volume.
8.
Set
the
reverb
volume
to
5-grade
position
and
turn
the
effect
volume
of
each
channel
clockwise
to
deepen
the
reverberation
effect.
Adjust
the
total
reverberation
effect
with
the
reverb
volume.
9.
Set
the
echo
volume
to
S-grade
position
and
turn
the
effect
volume
of
each
channel
clockwise,
then
echo
effect
can
be
obtained.
10. Use the AC OUTLET for the echo chamber, tape recorder, etc.
Its
electricity
can
be
used
upto
300W.
Note
that
this
socket
is
operative
even
when
the
power
switch on the front panel is OFF.
CAUTION
@
When
transporting
the
PA-120,
be
sure
to
cover
with
the
vinyl
cover
attached
in
order
to
protect
the
panel.
@
Set
the
amp
volume
to
OFF
when
connecting/disconnecting
the
power
plug,
microphone
and
echo
chamber
plugs,
otherwise,
speaker
may
be
damaged.
@
Since
the
PA-120
comprises
of
precision
component
parts,
be
sure
not
to
shock
to
the
amp.
