Connections
Setup Examples 2 (When Using the PM-30 as a Stage Monitor)

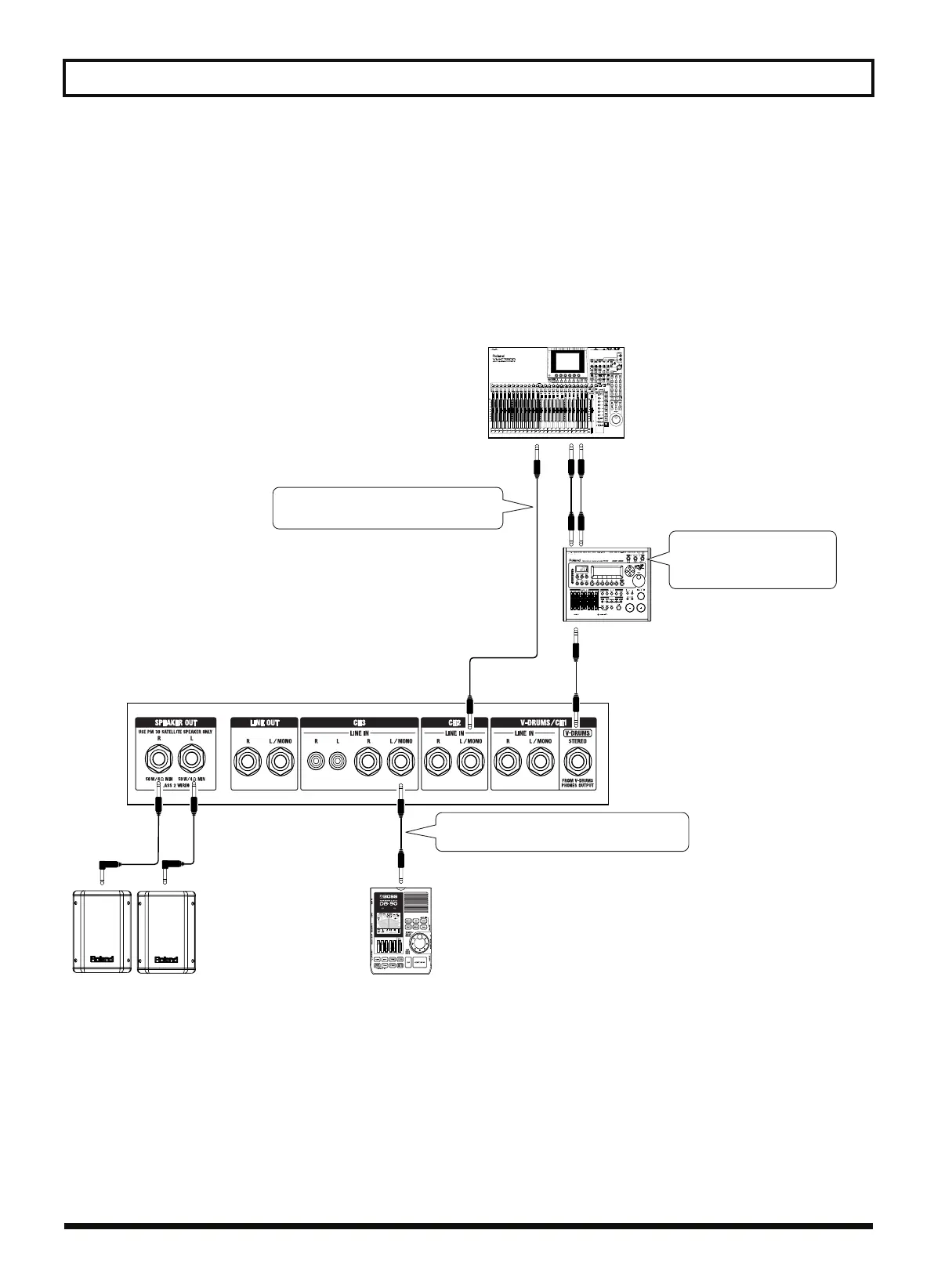

This example shows how you can enjoy the fullest use of the PM-30’s array of input and output connections when using the unit
as a stage monitor.
You can monitor the V-Drums sounds and sounds from other sources, all simultaneously.
Another benefit of this setup is that using the V-Drums stereo input allows you to adjust the monitor (PM-30) volume level with
the V-Drums sound module’s PHONES knob while leaving the output level to the PA unchanged.
Metronome
PA System
V-Drums
Sound Module
Stereo Cable
PHONES
MASTER OUT
INPUT
MONITOR OUT
Adjust the monitor volume
(Vocal, Bass, Keyboard, etc.) with ease!
Adjusts the monitor volume for the click,
guide, and other sounds!
PM-30 Satellite Speakers
Adjust the V-Drums monitor
volume level with
the PHONES knob!
Supplied Cable
