S-10
DEC.
1986

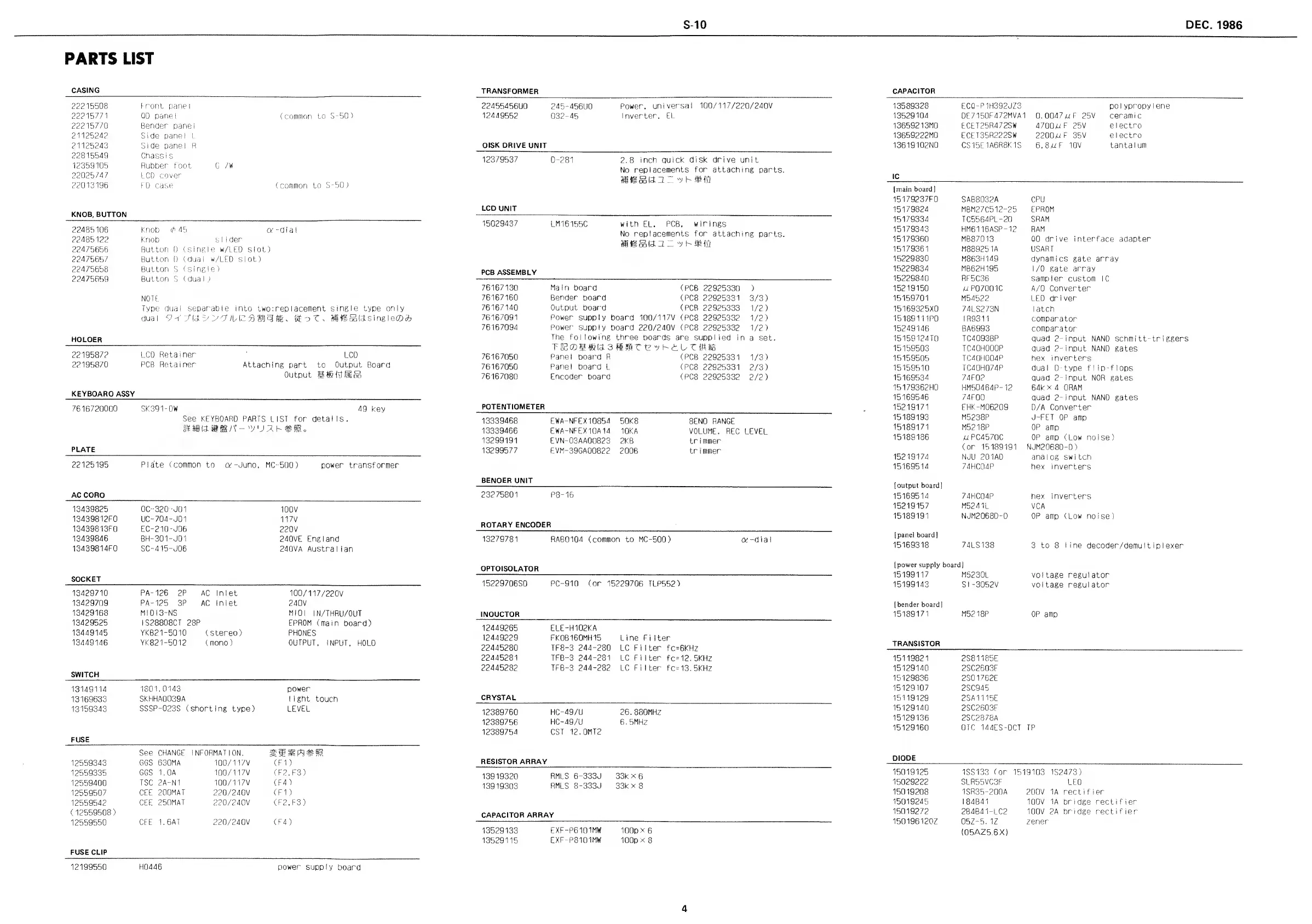

PARTS
LIST
CASING
22215508
22215771
22215770
21125242
21125243
22815549
12359105
22025/47
22013196
KNOB, BUTTON
Front, panel
00
panel
Bender
panel
Side
panel
1
Side
panel
R
Chassis
Rubber foot
LCD
cover
FD
case
G-
7W
(
common to
S - 60
)
(common to
S-50)
22485106
22485122
22475656
22475657
22475658
22475659
HOLDER
Knob (P 45
a'
-dial
Knob
s
1 I
der
Button [)
(single
w/LED slot)
Button
0
(dual w/LEO slot)
Button
S
(single)
Button
S
(
dua
i )
NOTE
Type dual separable into two;
replacement
single
type only
dual
9-r
S£-jT,
«fiSBsingleCDE(>
22195872
22195870
KEYBOARD ASSY
LCD
Retainer
PCB Beta i rter
Attach
LCD
ing part
to
Output Board
Output
StgBSS
7616720000 SK391-DW
49 key
See KEYBOARD
PARTS
t
1ST for detai
Is
.
PLATE
22125195 Plate (common
to a -Juno, MC-500)
power transformer
AC CORD
13439825
DC-320- J0
1
100V
13439812F0
UC-704-J01
117V
13439813F0 EC-210-J06
220V
13439846 BH-301-J01
240VE England
13439814F0
SC-415-J06 240VA
Austra
1 Ian
SOCKET
13429710 PA- 126 2P AC Inlet
100/1
17/220V
13429709 PA-
125
3P
AC Inlet 240V
13429168
MIDI3-NS
MIDI
IN/THRU/OUT
13429525 IS28B0BCT
28P EPROM
(main
board)
13449145 YK621-5010
(stereo) PHONES
13449146
YK621-5012
( mono
)
OUTPUT,
INPUT.
HOLD
SWITCH
13149114
1601.0143
power
13169633
SKHHAD039A
1
i
ght touch
13159343
SSSP-023S
(shorting
type) LEVEL
FUSE
See
CHANGE INFORMATION.
12559343
GGS 630MA 100/1 17V
(FI)
12559335
GGS
1.0A
100/117V (F2.F3)
12559400
TSC 2A-N1 100/117V
(F4)
12559507
CEE
200MAT
220/240V
(FI)
12559542 CEE
250MAT
220/240V
(F2.F3)
(12559508)
12559550
CEE
1.6AT 220/240V (F4)
FUSE CLIP
12199550
H0446
power
supply
board
TRANSFORMER
22455456U0
245-456U0
12449552 032-45
DISK DRIVE
UNIT
Power,
uni
Inverter.
versa 1 100/117/220/240V
EL
12379537
D-281
2.8
inch
quick disk drive unit
No
replacements
for
attach
i
ing
parts.
»liSBa
_
"y
h ^
ffl
LCD
UNIT
15029437
LM16155C
with EL.
PCB, wirings
No replacements
for
attaching
parts.
_
"y
K
*
12
PCB ASSEMBLY
76167130 Main
board (PCB
22925330 )
76167160 Bender board
(PCB
22925331
3/3)
76167140
Output board
(PCB
22925333
1/2)
76167091 Power
supply 1poard 100/117V
(PCB
22925332 1/2)
76167094 Power supply
1poard 220/240V (PCB
22925332 1/2)
The
fol lowing three
boards are supplied in
a set.
Tg(7)lt6B3«^irt2'yK<i:Ur(ttiS6
76167050 Panel board R
(PCB
22925331 1/3)
76167050 Panel board
L (PCB 22925331
2/3)
76167080
Encoder board (PCB
22925332
2/2)
POTENTIOMETER
13339468 EWA-NFEX10B54
50KB
BEND RANGE
13339466 EWA-NFEX10A14 10KA
VOLUME.
REC LEVEL
13299191
EVN-D3AA00B23 2KB tr
i mmer
13299577
EVM-39GA00B22
200B trimmer
BENDER
UNIT
23275801
PB-16
ROTARY
ENCODER
13279781
RABD104
(common to
MC-500)
a
-d
i a
1
OPTOISOLATOR
15229706S0 PC-910 (or 15229706 TLP552)
INDUCTOR
12449265 ELE-H102KA
12449229 FK0B160MH15
Line F
i I ter
22445280
TFB-3
244-280
LC Filter
fc=6KHz
22445281
TFB-3
244-281
LC Filter
fc=12.5KHz
22445282 TFB-3
244-282
LC Fi
Iter fc=13.5KHz
CRYSTAL
12389760 HC-49/U 26. 880MHz
12389756
HC-49/U
6.5MHz
12389754 CST 12.0MT2
RESISTOR
ARRAY
13919320 RMLS 6-333J 33k
X
6
13919303
RMLS 8-333J 33k
X
8
CAPACITOR ARRAY
13529133
EXF-P6101MW loop
X
6
13529115
EXF-P8101MW lOOpx
8
CAPACITOR
13589328
13529104
13659213M0
13659222M0
13619102N0
IC
ECQ-P1H392JZ3
DE7150F472MVA1
ECET25R472SW
ECET35R222SW
CS15E1A6R8K1S
polypropylene
0.0047/yF 25V ceramic
4700yyF
25V
electro
22m
uf 35V electro
B.SfvF
10V tantalum
(main board]
15179237F0
SAB8032A CPU
15179824
MBM27C512-25
EPROM
15179334 TC5564PL-20 SRAM
15179343 HM6116ASP-12 RAM
15179360
MB87013 00 drive
interface adapter
15179361 MB89251A USART
15229830 MB63H149
dynamics gate
array
15229834 MB62H195 I/O
gate
array
15229840
RF5C36 sampler
custom
IC
15219150
U
PD7001C
A/D Converter
15159701
M54522
LED
driver
15169325X0 74LS273N
1 atch
15189111P0
IR9311
comparator
15249146 BA6993
comparator
15159124T0
TC4093BP
quad
2-
input NAND schm
i
tt-tr
i
ggers
15159503
TC40H000P
quad
2- input NAND
gates
15159505 TC40H004P
hex
inverters
15159510 TC40H074P
dual
D type
f 1 ip-flops
15169534 74F02
quad 2- input
NOR
gates
15179362H0 HM504B4P-12
64k X
4
DRAM
15169546 74F00
quad 2- input
NAND
gates
15219171
EHK-MD6209 D/A
Converter
15189193 M5238P
J-FET OP
amp
15189171 M5218P OP
amp
15189186
U
PC4570C OP amp
(Low noise)
(or 15189191 NJM2068D-D)
15219174 NJIJ 201AD
analog switch
15169514 74HC04P
hex inverters
[output board]
15169514
74HC04P hex inverters
15219157 M5241L
VCA
15189191 NJM20680-0
OP amp (Low noise)
[pane] board]
15169318
74LS138
3 to 8
line
decoder/demultiplexer
[power
supply board]
15199117 M5230L
voltage regulator
15199143 SI
-3052V
voltage
regulator
[bender
board]
15189171 M5218P
OP amp
TRANSISTOR
15119821
2SB1185E
15129140
2SC2603F
15129836
2S01762E
15129107
2SC945
15119129 2SA1115E
15129140 2SC2603F
15129136
2SC2878A
15129160 DTC 144ES-0CT TP
DIODE
15019125
1SS133
(or 1519103
1S2473)
15029222 SLR55VC3F
LEO
15019208 1SR35-200A 200V
1A
recti f
i
er
15019245
IB4B41 100V 1A bridge rectifier
15019272
2B4B41-LC2 100V 2A
bridge rectifier
150196120Z 05Z-5. 1Z
zener
(05AZ5.6X)
4
