Rolex CALIBRE 3175 - Page 8

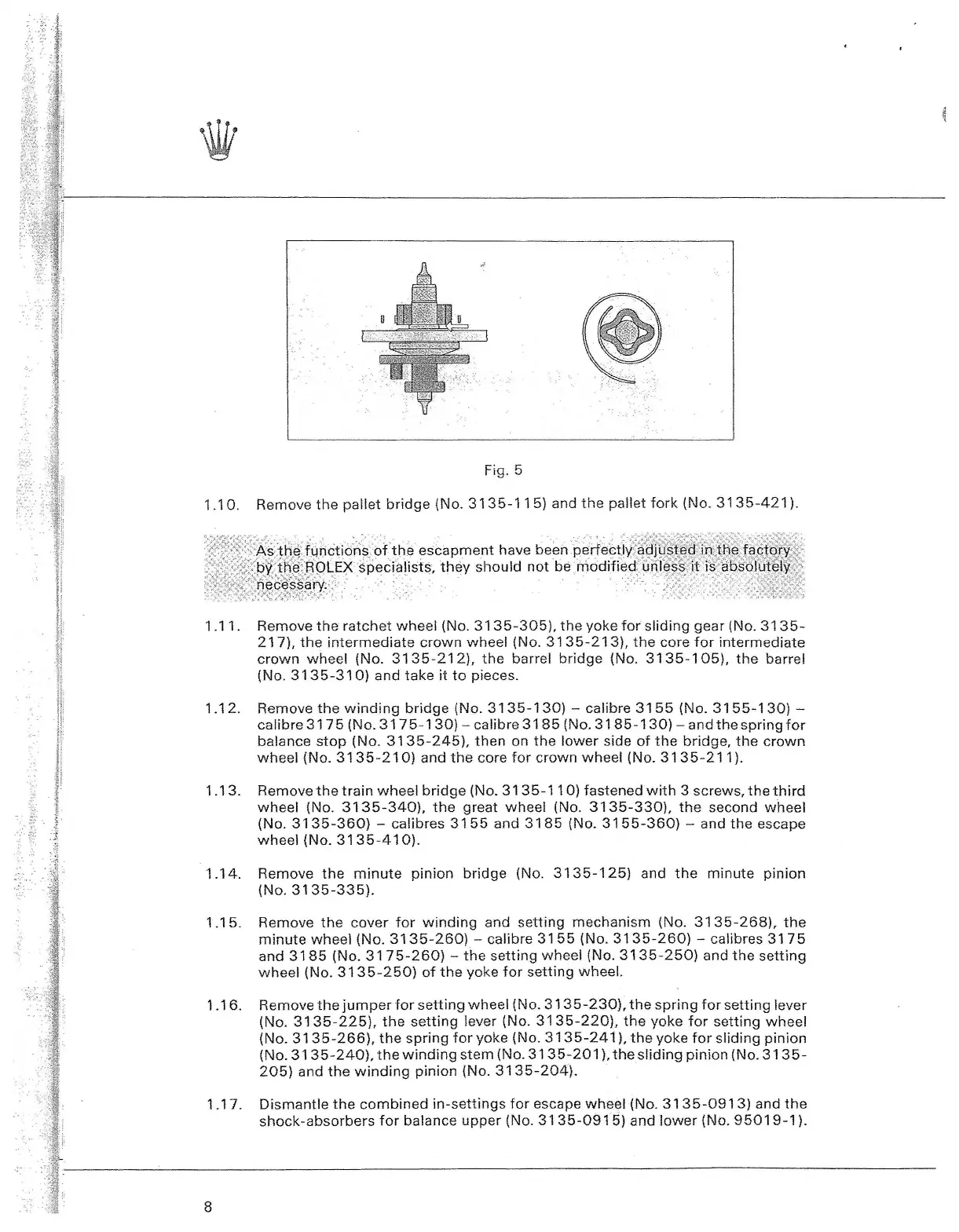

Fig. 5
1.10. Remove
the pallet
bridge (No.
3135-115) and
the pallet fork
(No.
3135-421).
As the functions
of the escapment
have been perfectly
adjusted in the facto'
by the ROLEX
specialists, they
should not be modified
toile;s:& - iVis".abs - dlp
,
necessary.
1.11. Remove the ratchet wheel (No. 3135-305), the yoke for sliding gear (No. 3135-
217), the intermediate
crown wheel
(No.
3135-213), the core for
intermediate
crown wheel
(No. 3135-212), the
barrel bridge (No.
3135-105),
the
barrel
(No. 3135-310) and take it to pieces.
1.12. Remove the winding bridge (No.
3135-130) — calibre 3155 (No. 3155-130) —
calibre 3175 (No. 3175-130) — calibre 3185 (No. 3185-130) — and the spring for
balance stop (No.
3135-245), then on
the
lower side
of the bridge, the crown
wheel (No. 3135-210)
and the core for crown wheel (No. 3135-211).
1.13.
Remove the train
wheel bridge (No. 3135-110)
fastened with 3 screws, the third
wheel (No. 3135-340), the great wheel (No. 3135-330), the second wheel
(No. 3135-360) — calibres 3155 and 3185 (No. 3155-360) — and the escape
wheel (No. 3135-410).
1.14. Remove the minute pinion
bridge (No. 3135-125) and the minute pinion
(No. 3135-335).
1.15. Remove the cover for
winding and setting mechanism (No.
3135-268), the
minute wheel (No.
3135-260) —
calibre
3155 (No.
3135-260) —
calibres 3175
and 3185 (No. 3175-260)
— the
setting wheel (No.
3135-250)
and the setting
wheel (No.
3135-250) of the yoke
for setting wheel.
1.16. Remove the
jumper for
setting
wheel (No.
3135-230), the
spring for
setting lever
(No. 3135-225), the
setting lever
(No. 3135-220), the
yoke for
setting wheel
(No.
3135-266), the
spring for yoke (No. 3135-241), the
yoke for sliding pinion
(No.
3135-240),
the winding
stem (No. 3135-201), the
sliding pinion (No. 3135-
205) and
the winding
pinion (No.
3135-204).
1.17. Dismantle the
combined in -settings for escape wheel (No.
3135-0913) and the
shock -absorbers for
balance upper (No. 3135-0915) and
lower (No. 95019-1).
8
