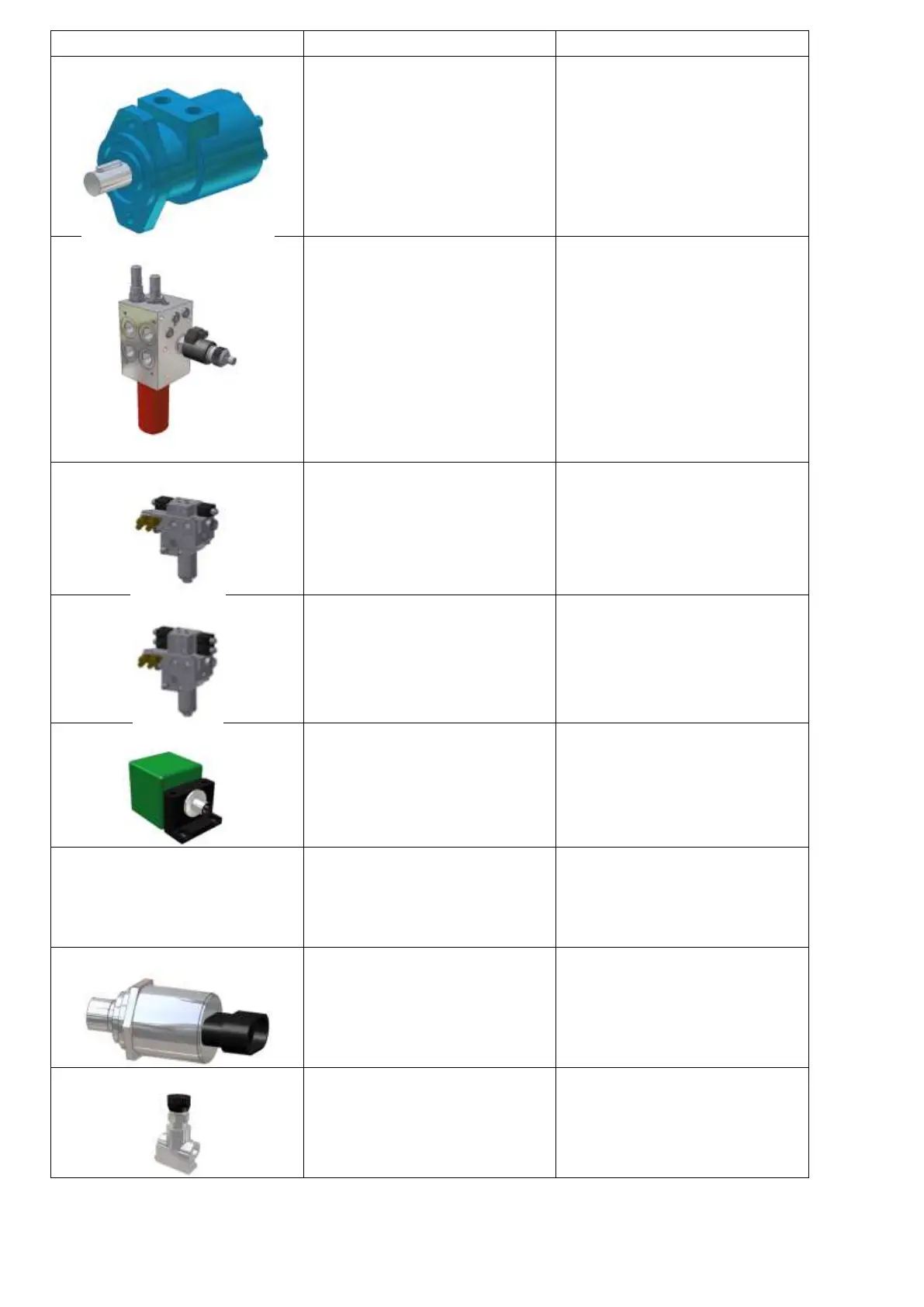

Element
Function
Stage in question
Hydraulic Engine
Powered by oil, this
maintains the reductor that
supplies the belt. A 160
cm³ engine for simple
drills and two motors of
130 cm³ mounted side by
side for double drills.
All models
Proportional Regulator
Ensures even oil
distribution throughout the
circuit, in proportion to any
given electrical data.
Pressure filter to be
changed annually. This unit
is fitted with two pressure
caps to safeguard emptying
and clearance operations.
111, 112, 113, 211, 212,
213
2 –way distributor
Allows for oil feed for
shock absorbers and hatch
functions.
121, 122, 123, 221, 222,
223
3-way distributor
Allows for oil feed for
tappet and hatch and
tractor funnel functions.
131, 132, 133, 231, 232,
233
Inductive wheel sensor
Gives the distance run with
the spreader in tow.
112, 113, 122, 123, 132,
133, 212, 213, 222, 223,
232, 233
Inductive sensor on the
reductor
Indicate the distance
covered by the shock
absorber and their
condition.
112, 113, 122, 123, 132,
133, 212, 213, 222, 223,
232, 233
Pressure gauge
Inform the user of the oil
pressure within the circuit.
112, 113, 122, 123, 132,
133, 212, 213, 222, 223,
232, 233
Manual regulator
Ensure even distribution
of oil throughout the
circuit. This is adjusted by
a rotary selector.
110
