Notice originale : Français NT0002 V –p – 03/2014

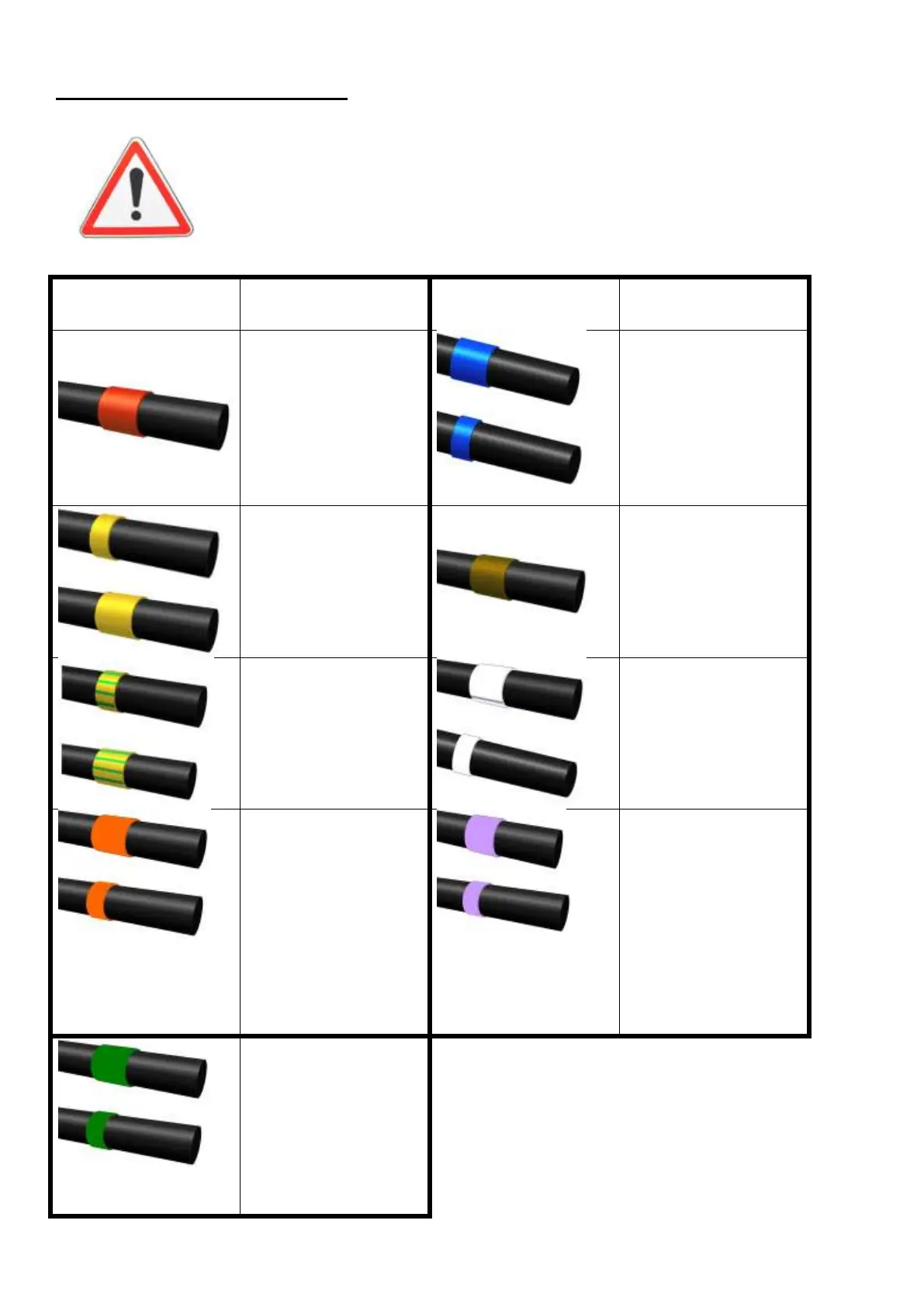

Connecting the pressure lines :
Connections can be made when the motor is turned off, when hydraulic
pressure has been released, and with the contact key taken out.
Belt pressure
(DE)
Belt return
(DE)
Funnel closing
(DE)
Funnel opening
(DE)
Axle locking
(SE)
Axle locking
(DE)
Hatch opening
(DE)
Hatch closing
(DE)
Hydraulic boom
cylinder output
(DE)
Hydraulic boom
cylinder return(DE)
Hydractive
suspension pressure
(DE or SE)
Hydractive
suspension return
(DE or free return )
Passive suspension
pressure (SE)
Passive drain
suspension
(Free return)
*SE : Simple Effect distributor
(pressure/ floating position)
*DE : Double Effect distributor
