21 5 77
4
of 10
SY/NlS
GENERAL
When the four checks have been completed a red spot should
be painted on the right-hand spring pot adjacent to the
stamped chassis number on the spring pot bracket.
TIME ALLOWED
To carry out check SY/NlS - (0.75 hours).
The above work to be submitted through normal warranty
procedure on separate claim forms quoting the reference
SY/NlS.
C1
C1
,• .
\ '-'
\ I I
-._1 I
_j
C3
C2

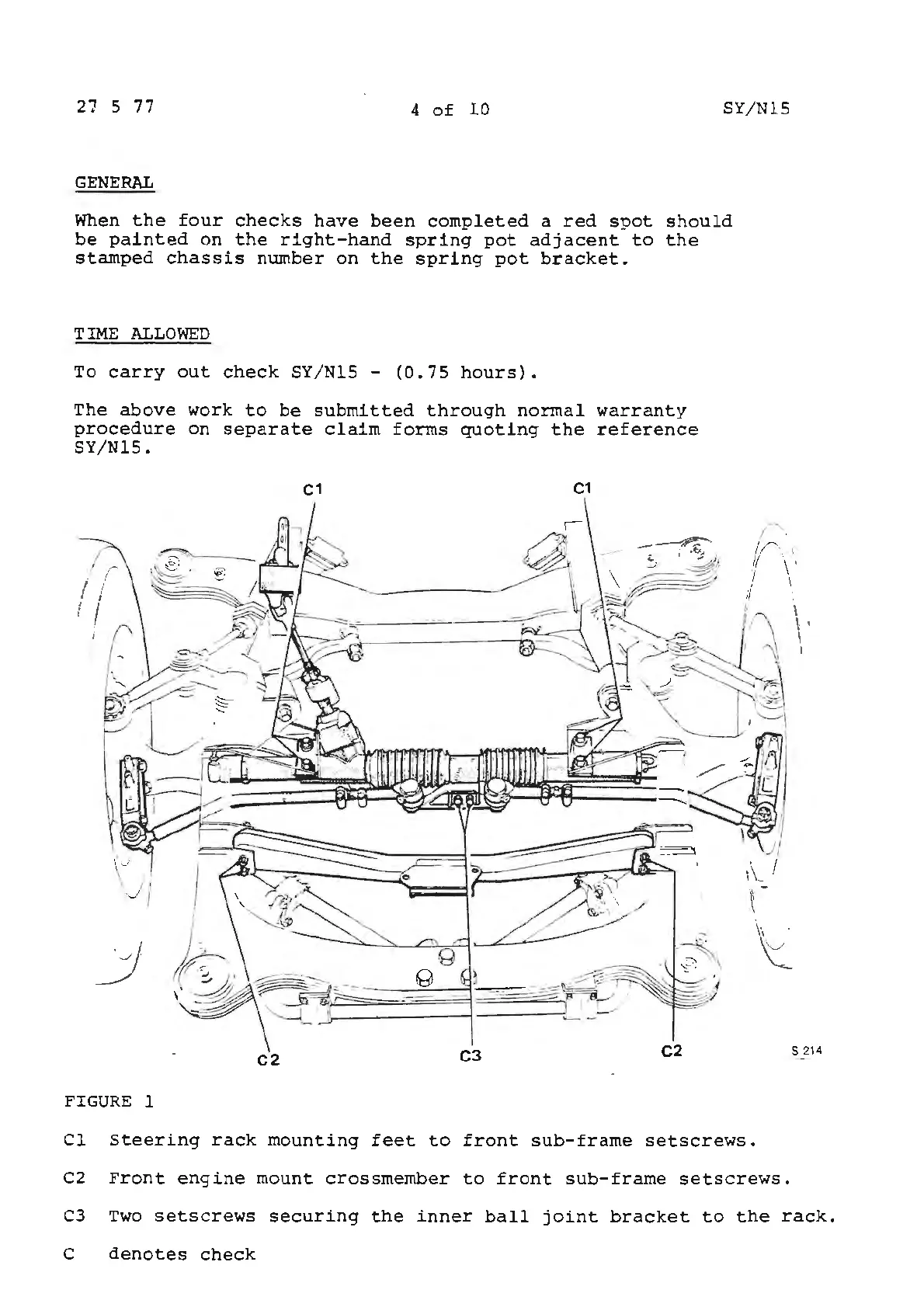

FIGURE 1
Cl Steering rack mounting feet to front sub-frame setscrews.
C2 Front engine mount crossmember to front sub-frame setscrews.
S 214
C3 Two setscrews securing the inner ball joint bracket to the rack.
C denotes check
