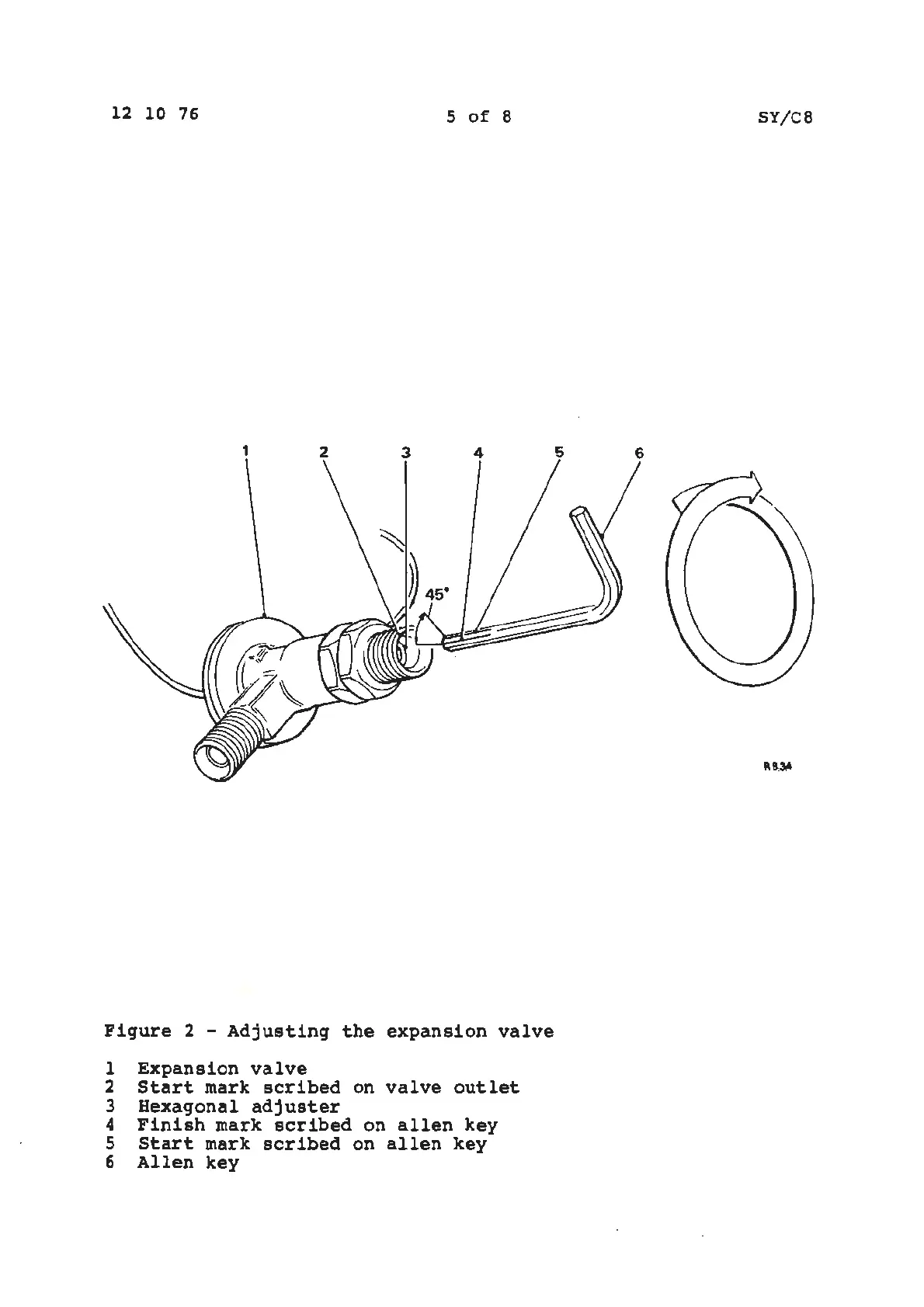

Figure 2 - Adjusting the expansion valve
l Expansion valve
2 Start mark scribed on valve outlet
3 Hexagonal adjuster
4 Finish mark scribed on allen key
5 Start mark scribed on allen key
6 Allen key
