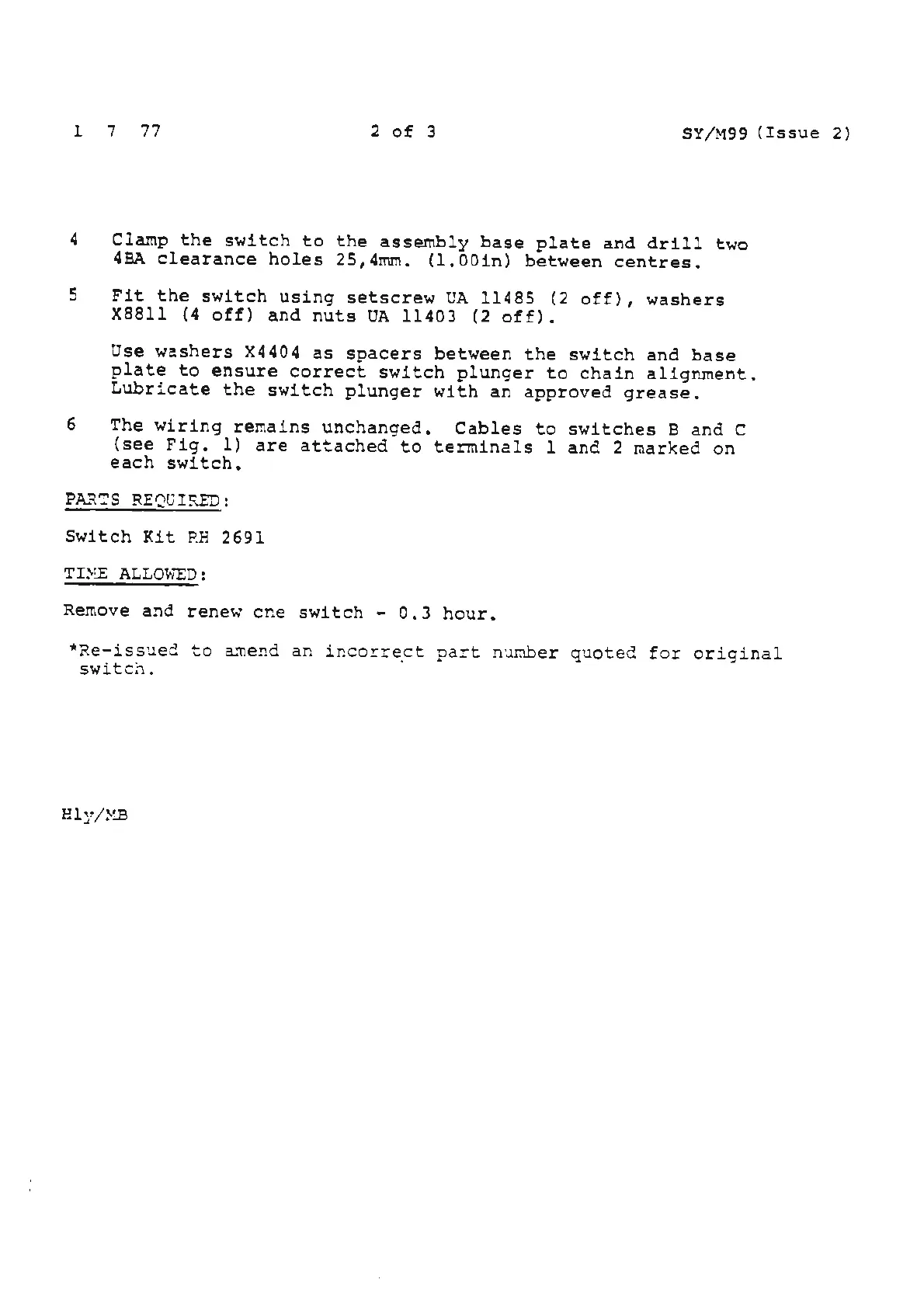

. 1 7 77 2 of 3
SY/M99 ( Issue 2}
4 Clamp the switch to the assembly base plate and drill two
4BA clearance holes 25,4mm. (l.OOin) between centres.
5 Fit the switch using setscrew UA 11485 (2 off), washers
X8811 (4 off) and nuts UA 11403 (2 off).
Use washers X4404 as spacers between the switch and base
plate to ensure correct switch plunger to chain aligr..ment.
Lubricate the switch plunger with an approved grease.
6 The wiring remains unchanged. Cables to switches Band c
{see Fig. 1) are attached to terminals 1 and 2 marked on
each switch.
PA..~':'S R.E QU lRED:
Switch Kit RH 2691
T n!E ALLOWED :
Remove and renew cr.e switch - 0.3 hour.
*Re-issued to a.11end an incorrect part n-..lr:tber quoted for original
switch.
